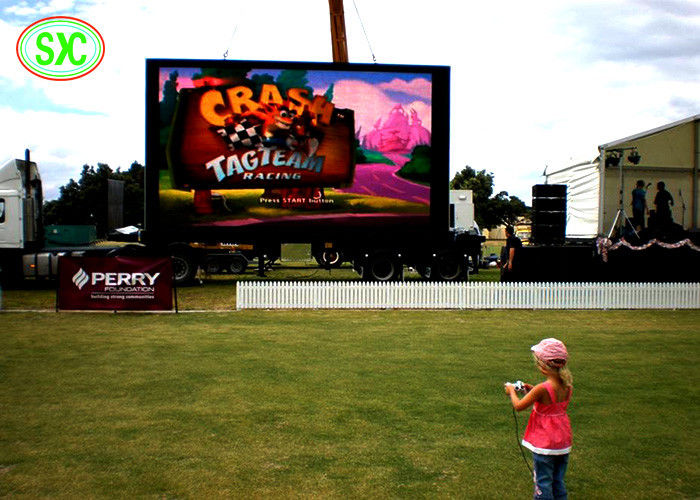

Full Color Large P5 Outdoor LED Display Screens Big TV Advertising LED Billboard

Full Color Large P5 Outdoor LED Display Screens Big TV Advertising LED Billboard

  • Full Color Large P5 Outdoor LED Display Screens Big TV Advertising LED Billboard
  • Full Color Large P5 Outdoor LED Display Screens Big TV Advertising LED Billboard
Full Color Large P5 Outdoor LED Display Screens Big TV Advertising LED Billboard
Product Details:
Place of Origin: made in china
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: SCXK-P5
Payment & Shipping Terms:
Minimum Order Quantity: 5sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Material: Steel And Aluminum Color: RGB
Function: Video,words,text,picture Water Proof: IP65
Screen Dimension: Customized Module Size: 320mm*160mm
Led Chip: Epistar Control Mode: Synchronization With PC,LED Flash Computer System
High Light:

led display smd

,

smd led display

nationstar lamps full color large P5 outdoor led display screens Big TV Advertising LED Billboard





We have 12  year production experience of offering solution, installation, and after-sales service, etc. According to different environment conditions, too cold temperature till -25℃ or too hot temperature till +55℃, we carefully choose different suitable materials and make the best offer for every customer. It differs in cables, LED lamps, plastic masks, waterproof materials, IC, etc. Faced with a variery of requirements, we offer flexible diverse solutions. We offer 24-hour all- direction online service.



BASIC INTRODUCTION



High IP Level Safety and Stability:
With the protection rating of IP65, Keep it safe from any bad weather
With the professional aviation plug as the connectors to ensure the quality
With the high quality raw material, mature craft and large scale production, the quality guaranted

Super Wide Viewing Angle With Exquiste Image:
With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology to get a super wide viewing angle and abetter surface flatness and stability. when the screen is used
RGB deep gray processing to show colorful and exquiste images
Supporting point-to-point correction function, ensure the consistency of the color and the brightness in the process of using



Items P5  outdoor Full Color Display
Module Pixel Pitch 5mm
Pixel Density(dot/m²) 20000
Pixel Configuration 1(RGB)
Packaged Type of LED SMD
Module Size(mm) 160*160
Module Resolution 32X32

Technical

Parameter

Brightness(cd/m²) 5000
Max Power Consumption(w/m²) 1050
Best Viewing Distance(m) 6-18
Viewing Angle 120°V/120°H
Drive Mode Constant Current drive 1/8 scan
Driving Driving IC MBI5026GF
Frame-change Frequency ≥60 Hz/s
Refresh Rate ≥600Hz/s
Gray Grade Level 4096 grades
Color 65536 kinds of colors
Display Mode 192*192
Control System Synchronization Control
Transmission Distance Reticle≤100M;Multi-mode Fiber≤500M;Single-mode Fiber≤10000M
Out of Control Rate≤0.0001
Lifespan ≥100000H
Driving Power 5V
Working Voltage AC220V±10% 47HZ~60hz
Working Temperature -10ºC~+55ºC
Working Humidity 5%RH~85%RH































































Methods for Quality Assurance

a. Aging

100% fully test

Condition: 72 hours with 256 gray level

b. Vibration Testing

Condition: 3-5 min up and down in 5mm range

Order Procedure

Negotiation---First solution recommended---Finalize all the details---30%deposit in advance or full deposit---

Start production---Pay the balance---shipment by DHL--provide tracking number---feedback.



Parking and Shipping







♦ Payment and delivery



1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.



Production Flow

production process.jpg



♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
