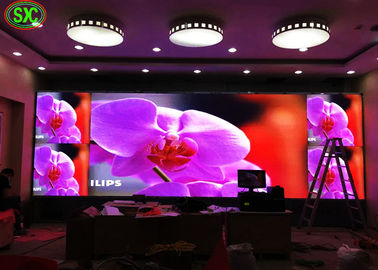

HD Indoor Full Color LED Display Customised Cabinet 2.5mm Small Pixel Pitch

HD Indoor Full Color LED Display Customised Cabinet 2.5mm Small Pixel Pitch

  • HD Indoor Full Color LED Display Customised Cabinet 2.5mm Small Pixel Pitch
  • HD Indoor Full Color LED Display Customised Cabinet 2.5mm Small Pixel Pitch
HD Indoor Full Color LED Display Customised Cabinet 2.5mm Small Pixel Pitch
Product Details:
Place of Origin: made in china
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: SCXK-P2.5
Payment & Shipping Terms:
Minimum Order Quantity: 5sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
IP: IP65 Warranty: 3 Years
Material: Steel Size: Customed
Chip: Epistar From Taiwan Power Supply: Meanwell And Chuanglian
Light: Nationstar Pixel Pitch: 2.5mm
High Light:

led display smd

,

outdoor smd led display

HD Indoor Full Color LED Display Customised Cabinet 2.5mm Small Pixel Pitch led video wall panels





Shichuangxinke Electronic Co.,Ltd is a  LED display, LED lighting and peripheral products R & D, production, sales and service in one of the high-tech enterprises in Shenzhen. We have this huge LED industry base, with advanced management mode, strong R & D capability and abundant raw material resources, to create high quality products. And according to the market demand, has formed a complete system of products. We have the spirit of "quality, integrity, efficient" business philosophy, market-oriented, technology-based, unite, strive for the company's future.



Insisting on the business philosophy of integrity and win-win benefits,we provide reliable products and excellent service by serving clients in honesty,offering excellent products and creat biggest value for clients to win the market.


Numbers Technical indexes Specification
1 Pixel pitch 2.5mm
2 Module size 160mmx160mm
3 Module resolution 64 x 64
4 Module density 160000dots/sqm
5 Pixel configuration Full color
6 Red wavelength 625±2nm
7 Green wavelength 525±2nm
8 Blue wavelength 470±2nm
9 Colors 16777216
10 Best viewing distance more than 5m
11 Horizontal viewing angle 140°
12 Vertical viewing angle 70°
13 Maximum power consumption ≤400W/2
14 Brightness ≥2000cd/m2
15 Gray scale 16bits of per color
16 Color temperature 6500K
17 Control method Synchronization or Asynchronization
18 Driving method 16scanning
19 Frame frequency 480Hz
20 Refresh frequency ≥1000 Hz
21 Working voltage AC220V/110V±10%
22 IP grade IP30
23 Working temperature -20°C~80°C
24 MTBF More than 10,000 hours
25 life span more than 100,000 hours



♦ Production process:



1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



The epistar Led chip. with SMD and DIP Technology .

we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available


The wire or wireless controll system are available .( 3g and wifi controll will be welcome)


The steer consturction is very stable for led display,and you can purchase from your local market .


♦ Payment and delivery



1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



A. Flight case Packing
1) 150KG Per flight case
2) 3 cabinets in one case
3) Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch



B. Plywood case
1) 180KG per plywood case
2) 3 cabinets in one case
3) Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch



C. Customized packing is acceptable
D. 20"FT container loading of 100sq.m





♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
