Waterproof SMD Commercial Advertising LED Screens Outdoor Full Color Led Display

Waterproof SMD Commercial Advertising LED Screens Outdoor Full Color Led Display

    • Waterproof SMD Commercial Advertising LED Screens Outdoor Full Color Led Display
    • Waterproof SMD Commercial Advertising LED Screens Outdoor Full Color Led Display
  • Waterproof SMD Commercial Advertising LED Screens Outdoor Full Color Led Display

    Product Details:

    Place of Origin: MADE IN CHINA
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: SCXK-P5 outdoor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1sqm
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 5000sqm per month
    Detailed Product Description
    Product Name: P5 Outdoor Smd Full Color Module Module Size: 160*160mm
    Tube Chip Color: Full Color Pixel Pitch: 5mm
    Module Qty: 1pcs Resolution: 32mm*32mm
    Certificate: CE FCC SGS ROSH ISO9001

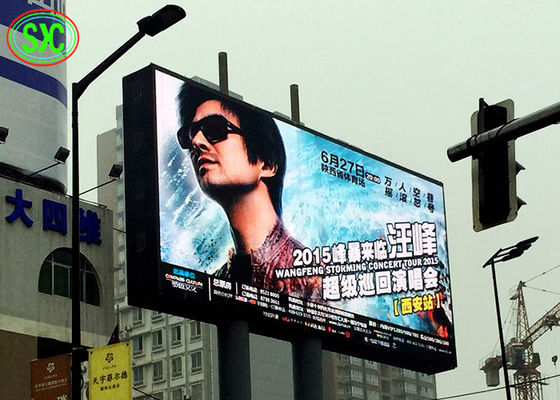

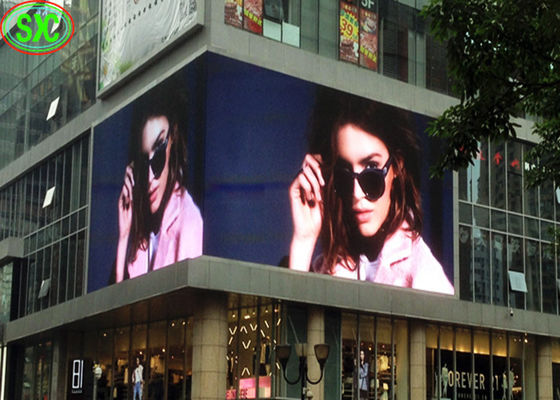

    Waterproof full color P5 SMD outdoor led commercial advertising led display screen

    ShenZhen  SCXK Electronic Co.,Ltd  is a professional led manufacturer established in 2005, which is a high-tech company specializing in LED researching, manufacturing, marketing and engineering service to provide customers with high-quality services.



    It's business covers indoor and outdoor led display, transparent led screen, LED components, LED multimedia advertising screen, stadium display, highway and transportation changeable message sign, rental display, indoor and outdoor led lighting etc.



    Our products are widely used in Commercial advertising led outdoor display screen, stadium perimeter led display screen, mobile trailer led display for mobile media, shopping mall led screen for logo showing, bank&stock exchange led screen or rates showing, train&bus station led display, air port led display, telecommunication led display system for information showing.

    Led outdoor RGB full color led display is the ideal daylight sign for applications that require high resolutions combined with medium range viewing distances. It is ideal solution for outdoor dynamic advertising, it offers a high solution combined with flexible viewing angles of up to 120degree horizontally and 60degree vertically.





    PRODUCT DESCRIPTION:



    Pixel  Pitch
    5.0mm
    Input Voltage
    5V
    Pixel Constitution
    1R1G1B
    PCB Power
    ≤50W
    Dimension
    160mm×160mm
    Pixel Density
    40000/㎡
    Actual Life
    ≥100000 Hours
    MTBF
    ≥1000Hours





    Cabinet Dimension
    960mm×960mm×130mm
    Cabinet Material
    Iron or Aluminum
    Cabinet Resolution
    192*192=36864
    Cabinet Area
    0.922㎡
    Max Power Consumption
    700W
    Average Power Consumption
    270W
    Cabinet Weight
    30KG
    Defense Rate
    IP65





    Brightness
    ≥6500CD/㎡
    Brightness Homogeneity
    >0.95
    Viewing Angle-Horizontal
    140°
    Viewing Angle-Vertical
    120°
    Horizontal Flatness
    <1mm/㎡
    Vertical Flatness
    <1mm/㎡
    Max Power Consumption
    ≤420W/㎡
    Average Power Consumption
    ≤140W/㎡


    Methods for Quality Assurance
    a. Aging
    1. 100% fully test     Condition: 72 hours with 256 gray level


    b. Vibration Testing
    Condition: 3-5 min up and down in 5mm range


    The epistar Led chip. with SMD and DIP Technology .

    we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available




    The wire or wireless controll system are available .( 3g and wifi controll will be welcome)



    The steer consturction is very stable for led display,and you can purchase from your local market .


    The package and shippment




    we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
    we can choose the best shippment which is convenient to you!
    SCXK group can give you the short delivery time and With the large production ability ,
    you can feel free about this . By air ,by train, by sea?



    Factory Equipment
    Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
    Automatic Glue- pouring Machine, Solder Paste Printing Machine,
    Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
    Withstand Voltage Tester, Ground Resistance Tester,
    Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
    Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.


    Competitive Advantage:
    1. 2 years’ warranty with free repair service
    2. 24/7 Hours online Remote Support
    3. Solution and PCB design
    4. Free factory training
    5. On site installation instruction and regular inspection
    6, Small order accepted.


    Any question,do not hesitate to contact me,i am always here for you.
