Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P12 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | USD 550-750 square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 4000sqm per month |
| Color: | Full Color | Resolution/mm: | 12 |
|---|---|---|---|
| Pixel Configuration: | RGB | Scanning Mode: | 1/4 Scanning |
| Module Size: | 192x192mm | Cabinet Size: | 960x768mm |
| LED: | DIP | Warranty: | 2 Years |
| Application: | Stadium,airport,shopping Mall,street Advertising | ||
| Highlight: | full color outdoor led display,outdoor full color led screen |
||
Best Selling Full Color P12 LED Outdoor Display,high refresh rate advertising billboard
Best selling Full Color P12 LED Outdoor Display
1. CE, RoHS certified
2. Brightness: >6500CD/m2
3. Easy to install and maintain
4. Excellent uniformity
5. Higher brightness and contrast
6. 2-year warranty, best after-sales service
Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen
Application
Stage & Rental
Stadium Project
Municipal Project
Advertising & Media
Meeting & Exhibition
Commercial Property
Broadcast & TV Project
Outdoor led Specifications :
| outdoor DIP P12 | |||||
| Resolution/mm | 12 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 6944/m² | ||||
| Module resolution | 16x16 | ||||
| Module size/mm | 192x192MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Why choose us:
Outdoor led advantages:
1. Price advantage: We have the most competitive price in the market, and the quality is the same or even better.
2. Quality advantage: From materials to finished products, from design to production, we control the whole process.
3. Service advantage: Provide better service under the same conditions, and provide better cooperation under the same service.
4. We ensure that the products are CE certified, ROHS certified, FCC certified and ISO 9001 certified.
Products list:
1. P3P4P5P6...Indoor full color led display;
2. P10/P12/P12.5/P16/P20/P25...Outdoor full color led screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.

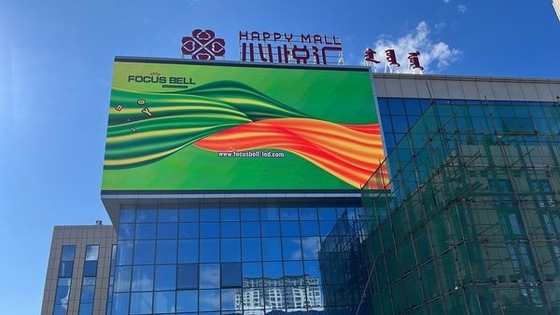

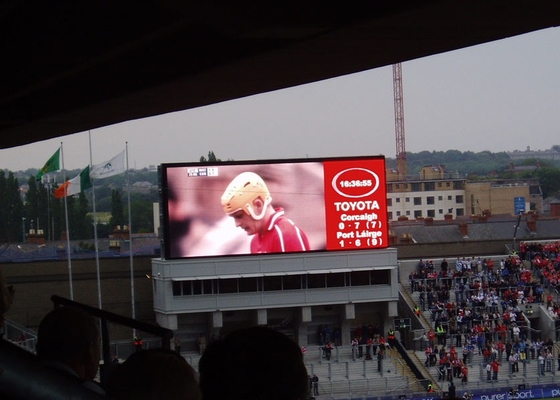

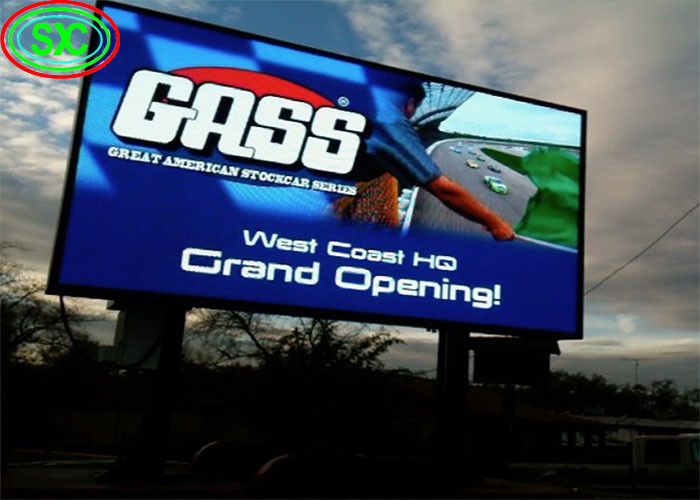

Our Outdoor LED projects:
Our Company:
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
