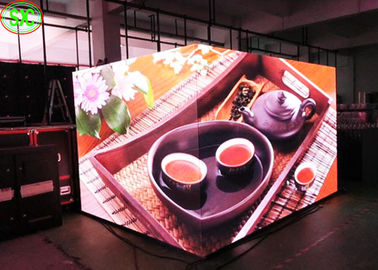

Mobile P2.5 Stage led video wall , indoor Led screen for Concert

Mobile P2.5 Stage led video wall , indoor Led screen for Concert

  • Mobile P2.5 Stage led video wall , indoor Led screen  for Concert
  • Mobile P2.5 Stage led video wall , indoor Led screen  for Concert
Mobile P2.5 Stage led video wall , indoor Led screen  for Concert
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/SGS
Model Number: p2.5
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Packed in wooden case and flight case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000/ Sq m per month
Contact Now
Detailed Product Description
Product Name: Stage P2.5 Led Display Module Size(W * H): 160mm*160mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 2.5mm Resolution: 64*64
High Light:

stage background led screen

,

stage led display

Mobile P2.5 Stage led video wall , indoor Led screen for Concert

Shenzhen Shichuangxinke Electronic Co.,Ltd promote the environment protection and energy saving with LED technology,we adopt the LED characterized with energy saving and envronmental friendliness as basic raw material.

Now we offer :Rental LED Screen , Fixed Installation LED ScreenTransparent LED Curtain Screen,Dance Floor Flexible LED Screen,Front access LED Screen.and Perimeter LED Screen.



SCXK consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance;IP rating and so on, wevadopt the most strict quality control system to guarantee products with perfect quality.





Features:

1.It is ultra-thin (60mm) and light weight (8KG),can save much costs especially shipped by air.
2.We use black body LED lamp,so the contrast rate is much higher than traditional white body LED lamp.Images on our LED screen looks very sharp.
3. High definition,it can show extremely clear and vivid video,images and texts,looking very high end.
4.High strength,high precision due to that the cabinet material is diecasting aluminum,It is Low Tooling Cost, Molding In One, Stable Size, Short Lead Time.
5.Rapid assembling sets, only 3 steps to lock the adjacent cabinets,can save much labor cost
6. The new structure design enables diversified installation,can be hung-up or stacked

Item stage background mobile p2.5 led display screen/indoor outdoor led video wall for concert
Model Number p2.5
Pixel Pitch 2.5mm
Pixel Density(dots/m²) 160000
Pixel Configuration 3IN1
LED Type SMD2727
Module size(mm) 160*160
Module Resolution(dots) 64*64
Min.Viewing Distance(m) ≥2
Brightness(cd/m²) ≥6500
Viewing Angle(degree) ≤120°
Average Power Consumption(w/m²) 280w-800w
Scan Mode 1/32
Protection Level IP43
Cabinet Size(mm) 640*640
Color Temperature The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements
Input Voltage AC220 V/50HZ or AC 110V/60HZ
Refresh Rate LED screen refresh frame frequency recommended is no less than 1200HZ(recommended)
Color 64g color(on the condition of 4096 gray scale)
Horizontal/Vertical viewing angle 120°
Gray Scale Recommended 14BIT
Effective Communication Distance(without relay)

Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters.

Mobile P2.5 Stage led video wall , indoor Led screen  for Concert 0



Mobile P2.5 Stage led video wall , indoor Led screen  for Concert 1



♦ Production process:



1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



♦ Packaging and shipping








Mobile P2.5 Stage led video wall , indoor Led screen  for Concert 3

we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.

we can choose the best shippment which is convenient to you!

SCXK group can give you the short delivery time and With the large production ability ,

you can feel free about this . By air ,by train, by sea?





♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.





♦ Applications



--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.

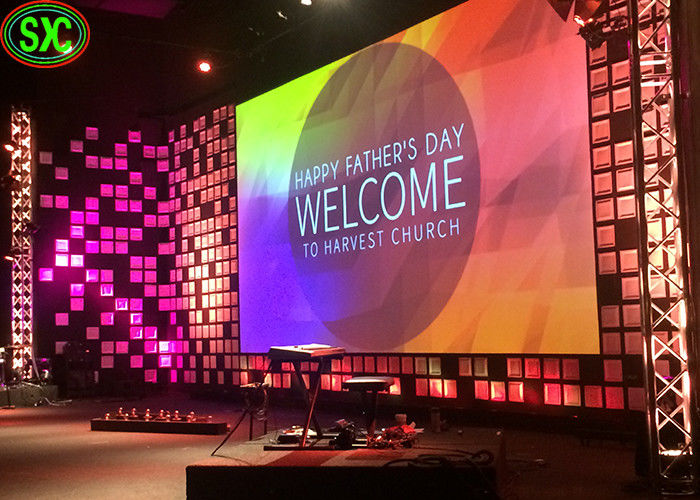

--- Show-business, concerts, festivals, motor shows and other public events.



♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
