P4.81 Stage Led Screens Board , High Brightness Led Display Rental For Concert

P4.81 Stage Led Screens Board , High Brightness Led Display Rental For Concert

  • P4.81 Stage Led Screens Board , High Brightness Led Display Rental For Concert
  • P4.81 Stage Led Screens Board , High Brightness Led Display Rental For Concert
  • P4.81 Stage Led Screens Board , High Brightness Led Display Rental For Concert
P4.81 Stage Led Screens Board , High Brightness Led Display Rental For Concert
Product Details:
Place of Origin: China
Brand Name: SCX
Certification: CE/ROHS/FCC/ISO/UL
Model Number: SMD P4.81
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P4.81 Indoor HD LED Board Display Rental Stage LED Screens For Concert Pitch/mm: P4.81
Size Of Cabinet/mm: 500*500 Resolution Of Cabinet: 64*64
Weight Of Cabinet/kg: 5KG Working Vlotage: 110-220 VAC/+/- 10%
High Light:

led stage display

,

stage led display


P4.81 Stage Led Screens Board , High Brightness Led Display Rental For Concert


1) Connector: Aerial grade brands ensure the stable transmission of power and signal.

2) PCB Board: adopt 4-layer design.

3) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.

Product specification

SMD P4.81

Lamp size2121
Resolution/mm4.81
Pixel configurationRGB  3 in 1
Pixel density/pixels/m²64510/m²
Module resolution64x64
Module size/mm250x250
View distance≥2m
Single point brightness adjustCan be added
Single point color adjustCan be added
White balance brightness>8000cd/㎡
Color temperature6500K-9500K
Horizontal view angle120(degrees)
Vertical view angle60(degrees)
Signal Process bit10 or 14 bit
Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distancesInternet cable:100m, multimembrane:500m, monofilm:5km
Driving modeConstant driving current
Scanning mode1/8
Frame rate60Hz
Refresh frequency>4200Hz
Control modeComputer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss

Out of control point<1/10000
Working hours≥72hours
Mean Time Between Failure>5000hours
Life time100000hours
Life-all-white(brightness halving)50000hours
Environment temperature rangeOperating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡<1000W
Average power:/㎡<280W
Self-check technology

LED spot self-check, communications check, power check,
temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)

Software environmentWindowsNT,Windows1999,WindowsXP
Luminous point width between centresDeviation<3%
Brightness uniformity<10%
Color uniformity(chromaticity coordinate)±0.003
Power supply requestAC85-264V(50Hz-60Hz)
Contrast(1000:1)
System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)working:10-95%
Humidity(storing)storing:10-95%


Product Overviews

ItemsIndoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Materialsteel,aluminum ,die casting aluminum
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing:Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping:5 to 7 working days upon receiving deposit payment
After-Sales-Service:Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using RangeShopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.


Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Features
1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
3. High refresh rate and high gray scale --- to ensure color consistency and better images

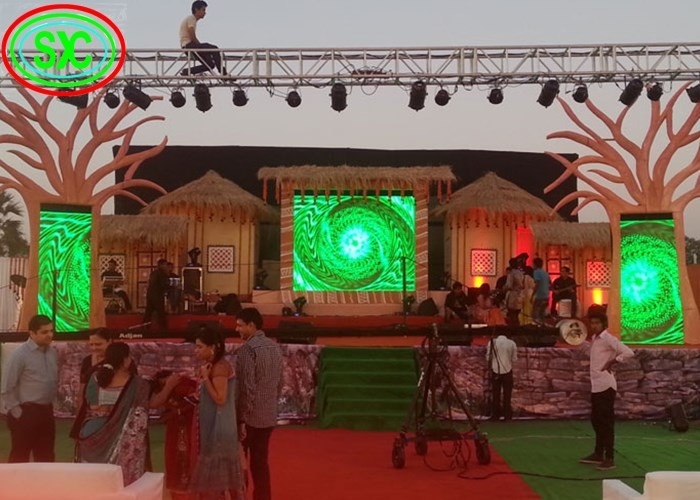

P4.81 Stage Led Screens Board , High Brightness Led Display Rental For Concert 0
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

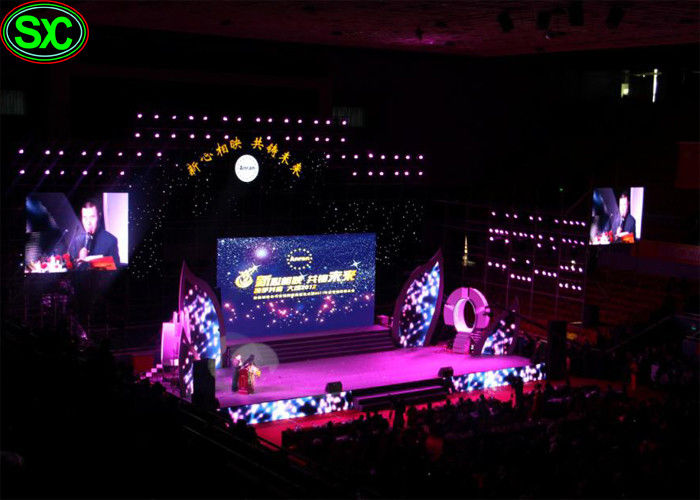

P4.81 Stage Led Screens Board , High Brightness Led Display Rental For Concert 1

Our team will be forever here to offer you full supports !!!
