Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P5 |
Minimum Order Quantity: | 1 sqm |
---|---|
Price: | negotiation |
Packaging Details: | plywood case, flight case, you choose what you like. |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
Supply Ability: | 5000sqm per month |
Pitch: | 5mm | Pixel Resolution: | 64*32dots |
---|---|---|---|
Led Configuration: | 1r1g1b | Module Size: | 320*160mm |
Pixel Density: | 40000/m2 | Driving Mode: | 1/16 Scan |
High Light: | outdoor advertising led display,advertising led billboard |

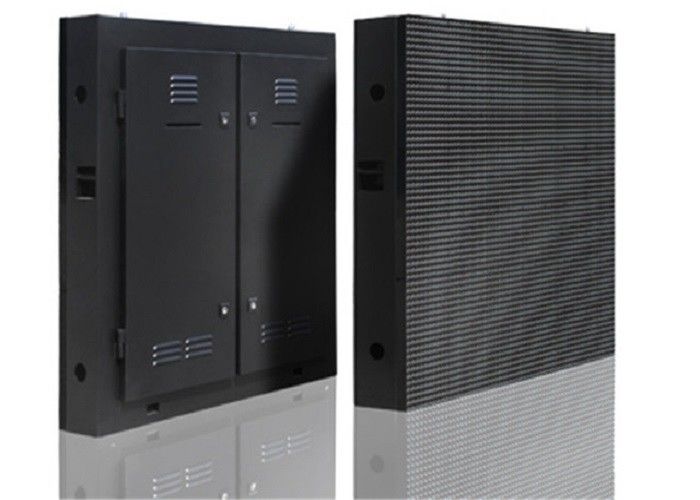

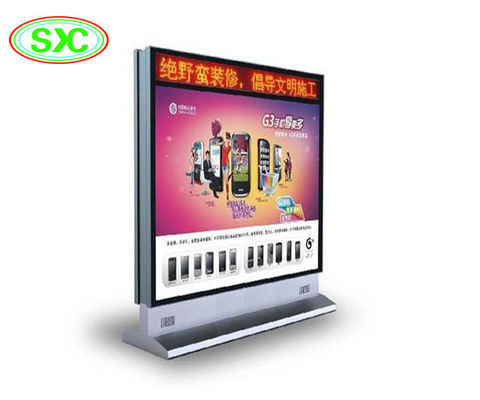

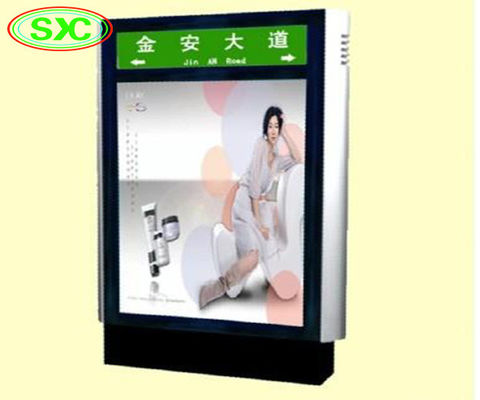

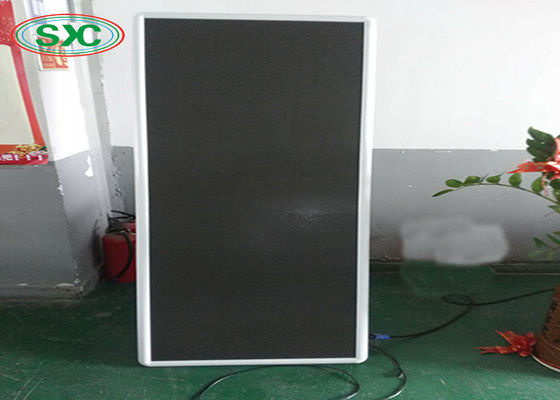

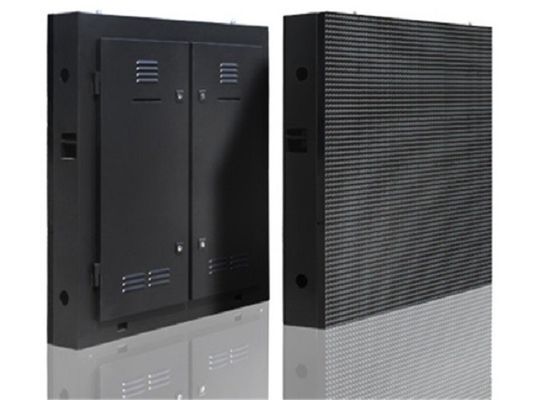

HD Vertical Advertising Machine/P5 Outdoor Full Color Led Screen
Compared with the fixed position wall-mounted products, mostly vertical advertising can be a drag and go, free to install, personalized applications to better meet the needs of the retail industry users. Moreover, based on this premise of flexibility, the rapid rise of interactive tide, vertical advertising machine successfully created a rather "ground gas children," the interaction, greatly enhance the use of cost-effective.
Paramter Specification
Pixel tube |
pitch:5mm led configuration:1R1G1B pixel brand:Epistar pixel density:40000/m2 |
Full screen |
Size: customied Optimal viewing distance:5-50m View angle: horizontal 110°,vertical 45° Storage temperature:-50℃ ~ +80℃ Working temperature:-20℃ ~ +50℃ Relative humidity:10%~95% |
Voltage |
Working voltage:220V±10% Average power:400W/m2 Maximum power:1000W/m2 |
Control system |
Control mainframe: Lenovo or computer with the above grade Operating system:WIN 98/ 2000/ XP Control method:Asynchronous (3G wireless, U disk control) |
The main technical parameters |
Driving device: using LED driver device Driving mode:1/16 constant current Refresh frequency:≥1600Hz Frame rate: ≥60Hz Contrast / color: red, green and blue each 256 levels Brightness:≥1800cd/m2 Video signal:RF,S-Video,PAL,NTSC,RGB,RGBHV,YUV,YC,COMPOSITION etc. Mean time between failure:10000 hours Lifespan:100000 hours Flatness: any adjacent pixels ≤ 0.5mm;cell board splicing gap <1mm; Uniformity: pixel intensity, uniform brightness unit board Miscellaneous rate:<0.0001 Power switch: automatic switch Switching power supply load:5V/40A,5V/30A Computer display mode:1024×768 Video input / output: eight input / eight output Degree of protection:IP65; Protection Technology: moisture, corrosion, anti-static, lightning |
Our advantages
1. OEM service, No MOQ.
2. Easy installation, regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5.Wooden case or flight case, you are the boss.
6.Your reply will be replied within 24 hours.
7. Fast delivery: 7-10 working days.
Buying Guides
In order to offer you a suitable solution, please follow the guides bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Product item
Many other hot product, welcome to visit our company!
Company profile
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Contact details
Salesman: Jack
Skype: Jack liu
Wechat:liu15179028073
Tel:+86-13574641422(whatsapp)
E-mail:Andy_he@scxled.cn
Web: www.rgbleddisplays.com
Save your time and money with us!
