Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P3 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000sqm per month |
| Product Name: | P3 Led Display | Module Size(W * H): | 192mm*192mm |
|---|---|---|---|
| Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Full Color |
| Pixel Pitch: | 3mm | Resolution(W*H): | 64dots*64dots |
| High Light: | led full color screen,indoor led billboard |
||

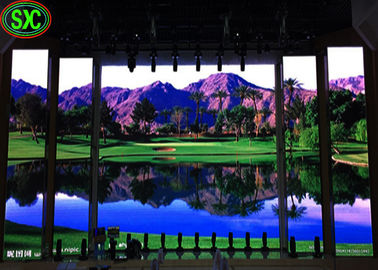

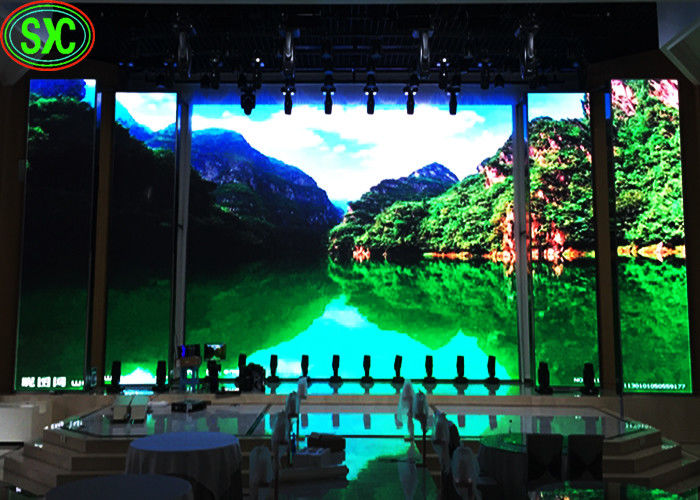

hd p3 big indoor full color led video wall for publicity rental events
Shenzhen Shichuangxinke Electronic Co., Ltd. is a manufacturer & service-oriented enterprise which specialized in led display research and development, production, sales and service. Since it was founded on 2005, SCXK invested a lot of manpower and material to quality improvement, sales promotion and after-sales services. Now we have achieved very good results.SCXK is recognized by peers and customers. The company now has a group of dedicated sales team, professional technician and after-sales team.
Full protection under harsh environment
Slim and light
It could be one of the thinnest LED displays in the industry; with only 50mm depth, the weight is only 9.5kg. You can carry two panels at one time! Your installation stuff will be more satisfied.
Fan-less design makes a quite display
Thanks to the integrated mold design, the thermal conductivity is very good and we could get rid of fans cooling. This quite display is very important for some of your event like concert touring.
High power efficiency
Unlike most of the product in the industry, we designed a double layer power supply system which is from AC-DC and DC-DC. This system enhances the power transforming efficiency to a high level of 83%.
Easy and fast installation
The inter-locker is fast and easy, free your hands from any other complicated tools.
| Numbers | Technical indexes | Specification |
| 1 | Pixel pitch | 3mm |
| 2 | Module size | 192*192 |
| 3 | Module resolution | 64×64 |
| 4 | Module density | 111112dots/sqm |
| 5 | Pixel configuration | Full color |
| 6 | Red wavelength | 625±2nm |
| 7 | Green wavelength | 525±2nm |
| 8 | Blue wavelength | 470±2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | more than 5m |
| 11 | Horizontal viewing angle | 140° |
| 12 | Vertical viewing angle | 70° |
| 13 | Maximum power consumption | ≤400W/2 |
| 14 | Brightness | ≥1200cd/m2 |
| 15 | Gray scale | 16bits of per color |
| 16 | Color temperature | 6500K |
| 17 | Control method | Synchronization or Asynchronization |
| 18 | Driving method | 16/32scanning |
| 19 | Frame frequency | 480Hz |
| 20 | Refresh frequency | ≥1000 Hz |
| 21 | Working voltage | AC220V/110V±10% |
| 22 | IP grade | IP30 |
| 23 | Working temperature | -20°C~80°C |
| 24 | MTBF | More than 10,000 hours |
| 25 | life span |
more than 100,000 hours |
Reply your inquiry in 24 working hours.
Experienced staffs answer all your questions in fluent English.
Customized requirement is available, OEM&ODM are welcome.
Exclusive and unique solution can be provided to our customer by our well-trained
and professional engineers and staffs.
Special discount and protection of sales area provided to our distributor.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
