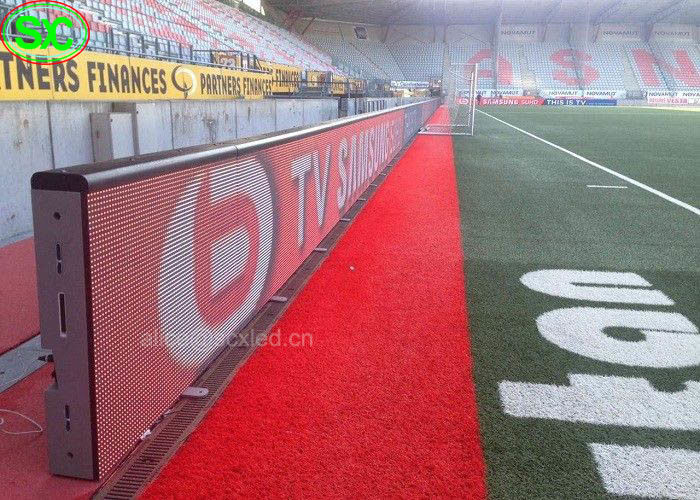

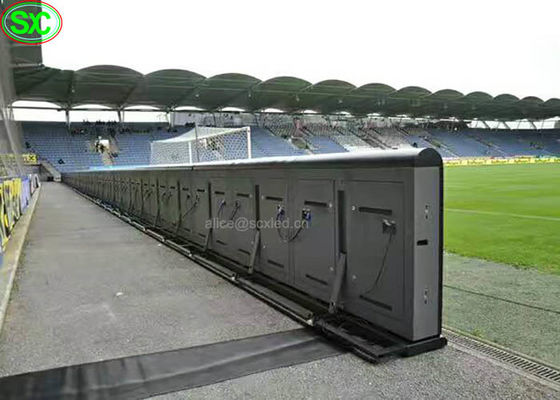

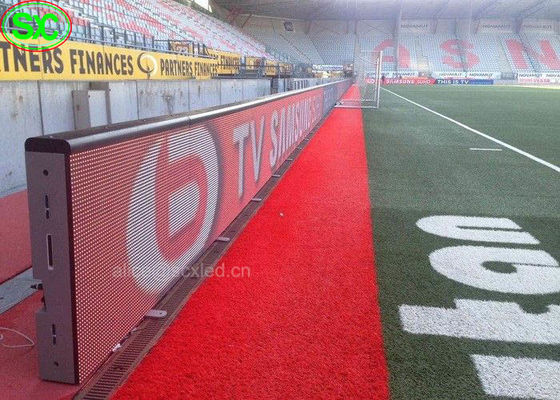

P8 Exterior Perimeter Football Stadium LED display , sports perimeter led display

P8 Exterior Perimeter Football Stadium LED display , sports perimeter led display

    • P8 Exterior Perimeter Football Stadium LED display , sports perimeter led display
    • P8 Exterior Perimeter Football Stadium LED display , sports perimeter led display
    • P8 Exterior Perimeter Football Stadium LED display , sports perimeter led display
  • P8 Exterior Perimeter Football Stadium LED display , sports perimeter led display

    Product Details:

    Place of Origin: China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: p8

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Product Name: P8 Exterior Perimeter Football Stadium LED Display , Sports Perimeter Led Display Pixel: 8mm
    IP Grade: IP65/IP54 Led Chip: Epistar
    Pixel Density:: 15625pixels /m2 Viewing Angle Degree: 120 Degree, 60degree

    P8 Exterior Perimeter Football Stadium LED display , sports perimeter led display



    ♦ Soft top protect:



    1. The angle of the cabinet is adjustable; Bracket folds up available;

    2. Easy for installation and disassembly;

    3. High brightness and be adjustable, meets the need of the changing requirement of customer in environments



    High Brightness with Low Luminous Decay



    MP high bright led sign in stadium adopted high quality LED to make sure the brightness always in a high level, FO series can produce crystal clear images in virtually any lighting conditions, even in the sun directly.



    ♦ Technical specification



    outdoor  SMD P8
    Resolution/mm 8
    Pixel configuration 1R1G1B
    Pixel density/pixels/m² 15625/m²
    Module resolution 32x16
    Module size/mm 256x128
    View distance 7-500m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >8000cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 16bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
    Driving mode Constant driving current
    Scanning mode (1/4)
    Frame rate 60Hz
    Refresh frequency >4200Hz
    Control mode Computer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃
    Maximum power:/㎡ <950W
    Average power:/㎡ <350W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast  (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%


    ♦ Production process



    1) Incoming Inspection→2)SMD→3)Plug-in

    →4) Wave Soldering→5)After Welding→6)Testing

    →7) Semi Finished Aging→8)Module Assembly

    →9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



    ♦ Packaging and shipping



    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.

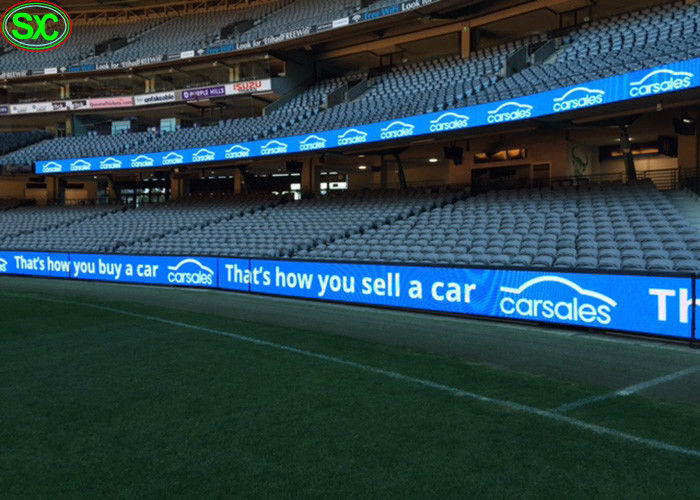

    ♦ Applications

     P8 Exterior Perimeter Football Stadium LED display , sports perimeter led display
