SMD3535 P6 Outdoor Full Color LED IP65 1/8 Scan Display Waterproof Stable Performance

SMD3535 P6 Outdoor Full Color LED IP65 1/8 Scan Display Waterproof Stable Performance

  • SMD3535 P6 Outdoor Full Color LED IP65 1/8 Scan Display Waterproof Stable Performance
  • SMD3535 P6 Outdoor Full Color LED IP65 1/8 Scan Display Waterproof Stable Performance
  • SMD3535 P6 Outdoor Full Color LED IP65 1/8 Scan Display Waterproof Stable Performance
  • SMD3535 P6 Outdoor Full Color LED IP65 1/8 Scan Display Waterproof Stable Performance
SMD3535 P6 Outdoor Full Color LED IP65 1/8 Scan Display Waterproof Stable Performance
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P6
Payment & Shipping Terms:
Minimum Order Quantity: 5sqm
Price: by negotiation
Packaging Details: At your option - flight case, wooden case or carton
Delivery Time: 10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Module Size: 192*192 Scan: 1/8
LED Shape&size: 3mm Smd3535 Cabinet Size: 9601*768 / 576*576
Brightness: 6000 Max Power Consumption: 800
Avarage Power Consumption: 300 Min.View Distance: 6m
High Light:

full color led signs outdoor

,

outdoor full color led screen

SMD3535 P6 Outdoor Full Color LED Display Waterproof Stable Performance



P6 outdoor led video wall for commercial advertising:



1) Reliable quality, advanced and mature technology, compliant with industrial standards and technology developing trend
2) Good heat emission, waterproof and stable performance
3) Audio and video interface of the system can offer vivid, complete and high quality Commercial advertising LED display to TV broadcasting signal
4) High resolution and definition of screen image, clear and non-flash screen image
5) Supports video and radio frequency input, special structure can be freely assembled

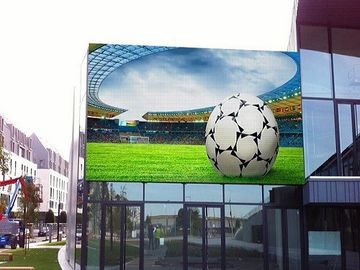

6) The Sports Perimeter Display is most commonly used for advertising on the perimeter/boundary of football ground, cricket ground, baseball ground, etc

SMD3535 P6 Outdoor Full Color LED IP65 1/8 Scan Display Waterproof Stable Performance 0




SMD3535 P6 Outdoor Full Color LED IP65 1/8 Scan Display Waterproof Stable Performance 1





Specifications:



Model No. P6 Outdoor
Pixel Pitch 6mm
Module Size 192*192mm
Module Resolution(pixels) 32*32
Cabinet Size 9601*768 / 576*576
Panel Resolution(pixels) 96×96
Pixel Configuration(RGB) SMD 3 in 1
Pixel Density(pixels/㎡) 27777
Brightness(cd/㎡) 8000
Best Viewing Distance(m) 6-100
Average Power Consumption(W/㎡) 600
Waterproof Level IP65
Vavelength R 620-625 G 520-525 B 470-475
LED SPEC 3129
Viewing Angle 140°(H)/140°(V)
Operating Tempreture –40~80°C
Video Frame Rate(Hz) ≥ 60HZ
Display Refresh Rate(Hz) ≥ 2000HZ
Grey Level(colors) 16.7million
MTBF ≥50,000 hours
Lifespan ≥100,000Hours
Working Voltage 220V±15% OR 110V±15%
Drive Mode Constant 1/16
Graphics Card DVI Graphics card
Video Signal RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System LINSN
Software LED studio 10.0
Installation Wall mount, hung and stand structure





Info:


Packaging:
1:Flight Case(5 cabinets in one case)
Gross Weight:150KG
Size:1010mm*560mm*1175mm
2:Wooden case(5 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm

Our Services:
Buying Guides
In order to offer you a suitable solution,pleasefollow the guides belowing:
1, star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)

After-Sale Service
1. One year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.

Company Information
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.

FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .

2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.

3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in on



Your special wishes and requirements for the product will be carefully considered.
We are open to counter offers of cooperation.

Sincerely, Maku
