High Transparent LED Grid Screen , CP15.625 Full Color LED Grid Display

High Transparent LED Grid Screen , CP15.625 Full Color LED Grid Display

    • High Transparent LED Grid Screen , CP15.625 Full Color LED Grid Display
    • High Transparent LED Grid Screen , CP15.625 Full Color LED Grid Display
    • High Transparent LED Grid Screen , CP15.625 Full Color LED Grid Display
  • High Transparent LED Grid Screen , CP15.625 Full Color LED Grid Display

    Product Details:

    Place of Origin: China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/SGS
    Model Number: cp15.625

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: Packed in wooden case and flight case for outer packing
    Delivery Time: 10 working days after received your payment
    Payment Terms: T/T or western Union
    Supply Ability: 5,000/ Sq m per month
    Contact Now
    Detailed Product Description

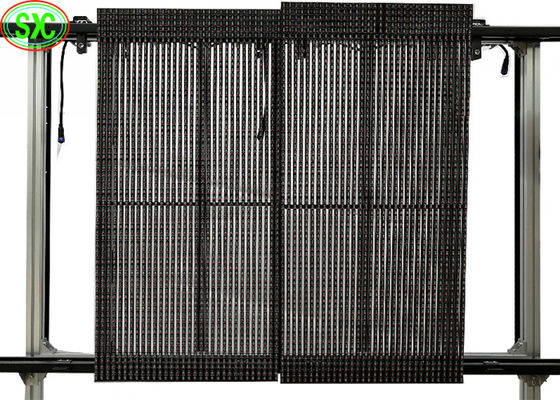

    Product Name: Cp15.625 Transparent Led Gridscreen Cabinet Size(W * H): 500mm*1000mm
    Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: 1R1G1B
    Pixel Pitch: 15.625mm Resolution(W*H): 32dots*64dots
    Led Chip: Epistar Led Lamp: Dip346

    High Transparent LEDGrid Screen , Cp15.625 Full Color LED Grid Display

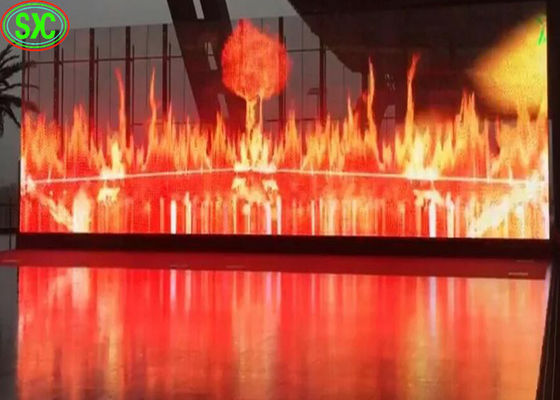

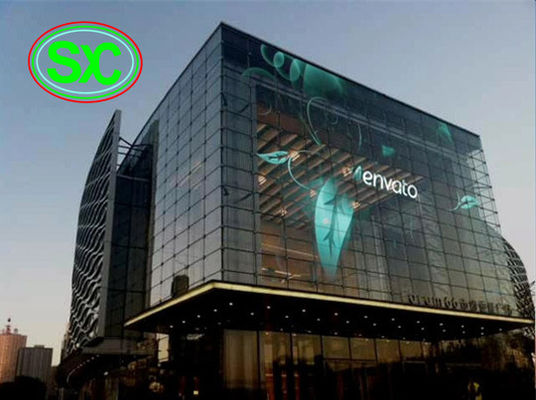

    Led transparent,LED grid plate is also called hollow out LED screen,which is based on the traditional LED display research and development of new products, in the form of article lamp assembly into the screen. As a new advertising media, they are widely used in outdoor glass,curtain wall,office building, etc.. The high rate can be customized and arbitrarily shaped. Good heat dissipation performance, light weight and other advantages. It is also a modern city highlight new LED multimedia advertising media.

    outdoor cp15.625 transparent led grid advertising screen

    1. The first level LED chip from Taiwan Epistar
    2. DIP346 high brightness led lamp
    3. Ag alloy solder paster and copper plating thickness > 30mil on 4 layers PCB
    4. All new stainless steel screws when assembly.
    5. 3 years warranty..

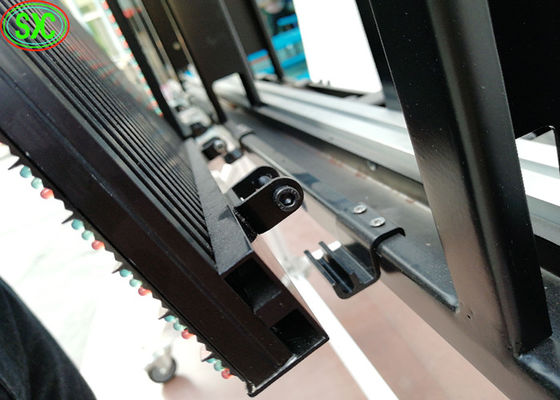

    Mask areas

    High Transparent LED Grid Screen , CP15.625 Full Color LED Grid Display



    The anti - button design of the mask can prevent the deformation from being out, and the assembly is more smooth and beautiful. The mask surface is not exposed by screws, all of which are installed in the back body; The LED lamp bead in the lower part of the mask is filled with the LED light bar silicone glue to prevent rainwater infiltration.

    Screw Parts

    High Transparent LED Grid Screen , CP15.625 Full Color LED Grid Display

    All the parts of the cabinet are filled with waterproof glue including the screw surface. And it is tested by simulated rain for screen body , and it can effectively prevent rainwater infiltration.

    Power Part

    High Transparent LED Grid Screen , CP15.625 Full Color LED Grid Display

    It is fitted with a waterproof sealing ring in the rear cover position between the power supply and cabinet, and the screws shall be screwed tightly to prevent rainwater infiltration effectively.

    Screen connection Part

    High Transparent LED Grid Screen , CP15.625 Full Color LED Grid Display

    The connecting thread is connected with the joint and thread twist, and the sealing ring is added at the interface to prevent rainwater infiltration


    Parameter Description
    Pixel Pitch(Horizon & vertical)
    15.625mm
    LED Encapsulation Mode
    DIP 346RGB
    Cabinet Size
    500mm*1000mm
    The best viewing distance(M)
    15-300
    Transparency
    0.6
    Pixel
    4096
    Max Consumption(W/㎡)
    480W
    Average power consumption(W/㎡)
    145w
    Cabinet Resolution
    64*32
    Color Grayscale (Bit)
    14
    Brightness(CD/㎡)
    ≥8500cd
    contrast
    1:1600
    Color temperature
    6500-9300k
    Brightness adjustment
    5%~100%
    Horizontal viewing angle(°)
    ≥110°
    Vertical viewing angle(°)
    ≥60°
    Unit Weight (kg/pcs)
    9
    Unit thickness (cm)
    6.8
    Installation thickness (cm)
    11.8
    Strips width(mm)
    9.38
    Strips materials
    6061 Stretch aluminu
    Strips structure
    Single,vertical
    refresh(HZ)
    ≥2000
    frame rate(HZ)
    60
    Pixel uncontrol rate
    <1/10000
    pixel intensity homogeneity
    Deviation of the whole screen inhomogeneity,R,G,B<5%
    Data interface
    DVI/HDMI
    control mode
    Synchronous mapping
    Driving device
    MBI 16 bit serial
    Drive mode
    Constant current,static
    Power supply voltage
    AC85-250 V
    Dielectric intensity
    50HZ/1500V(Ac RMS)/1min
    cooling way
    structure-enhanced,natural convection
    IP rating (Front and Rear)
    Double-side IP67
    EMC
    Conduction Emission EN55022 CLASS-A, Harmonic Current IEC61000-3-2 Class-A
    Shock resistance
    10~500HZ,5G 12min./1 cycle,period for72min.each along x.y.z.axes
    Operating Temperature(℃)
    -40 ~+85°C
    Wind resistance
    12 degree
    Power configuration
    High efficiency PFC power supply
    MTBF
    ≥5000H
    Fire resistance
    Full V0 flame retardant
    Maintenance mode
    Front side and Back side
    Installation type
    Tool-free quick installation
    Deviceclass
    All solid-state wide temperature industrial grade
    MTBF
    ≥5000H
    Operating humidity(RH)
    10--90%RH
    material of frame
    2.0mm cold-rolled galvanized steel sheet
    material of shell
    Environmental protection alloy
    Power configuration
    High efficiency PFC power supply
    Maintain speed
    10S/unit
    The scope of work
    0-5000m
    Control system
    YDEA
    life time
    ≥100000 hours

    High Transparent LED Grid Screen , CP15.625 Full Color LED Grid Display

    Packing

    wooden case,flight case and cartoon three options to choose from.content can be 4in1,5in1,6in1and 8in1.

    Delivery

    we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
    we can choose the best shippment which is convenient to you!



    Our Service


    Pre-sale service:

    1. Inquiries will be replied within 24 hours.
    2. Market research and forecast for customer.
    3. Provide unique and professional solutions based on customer's requirement.
    4. Data sheet and samples offered.
    5. Other required services such as special packing design, factory visiting and so on.

    In-sale service:

    1. Tracking producing procedures all the time.
    2. Provide photos and videos as per customer's requirement during production.
    3. Free spare parts provided.


    After-sale service:

    1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
    2. Warranty: 24 months.
    3. Free technician training.
    4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
