Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P4 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Product Name: | Indoor P4 Fixed Advertising Curved LED Display Cylindrical Screens | LED: | Nationstar |
|---|---|---|---|
| Refresh Rate: | 3820hz | Color: | RGB |
| Display Function:: | Video | Warranty: | 5 Years |
| High Light: | flexible led screen wall,flexible led display |
||

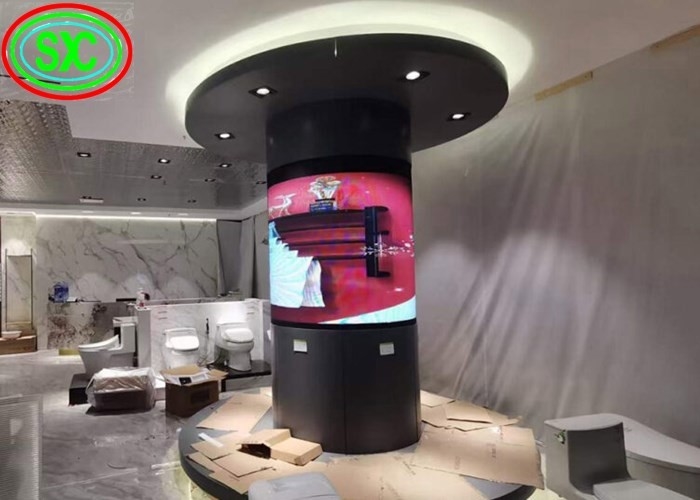

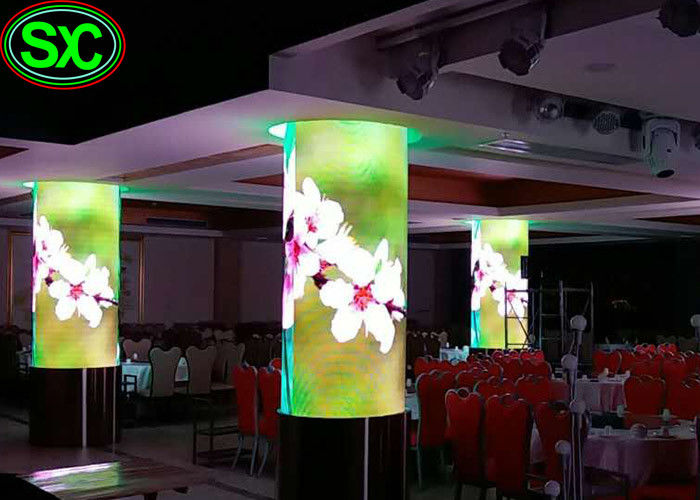

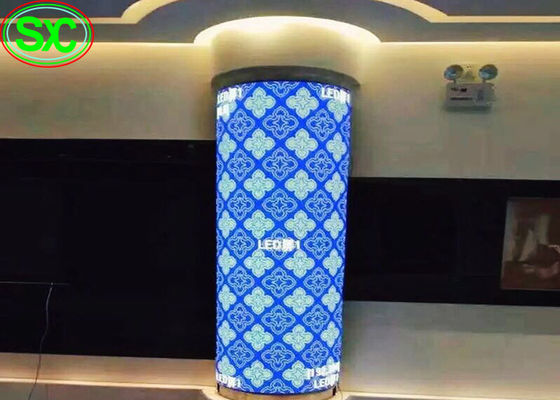

Indoor P4 Fixed Advertising LED Screens Curved LED Display Cylindrical Screens
♦ Main Features
1. Wide application field: Advertising LED display, Stadium perimeter LED display, Mobile LED display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, Stage performances and so on.
2. High Contrast and Frequency: 4000: 1 and 5000Hz, which is a very high level to ensure a vivid image of our LED screen system.
3. First-class LED chip: Supplied by Silan & other high strictly selected LED chip to ensure the long life time and high brightness of our LED screen system.
4. Clear vivid image quality: Even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
5. Long-term Brightness: 6500-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display.
6. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.
7. Convenient Servicing: Front or rear cabinet access make the maintains work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
♦ Product specification
| indoor SMD P4 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 4 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 40000/m² | |||||||||||||
| Module resolution | 64x32 | |||||||||||||
| Module size/mm | 256*128 | |||||||||||||
| View distance | ≥0.5m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2500cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/32 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1000W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
♦ Product Overviews
| Items | Indoor Led display: p1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 Outdoor Led display: P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
| Payment terms |
30% deposit before production, 70% balance before shipping |
| T/T | |
| Western Union | |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; | |
| Anti-shaking wooden case | |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
| Within 5 year, supply spare parts for free if has quality problem ( not by man-made damage) |
|
| Using Range | Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on. |
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
Our team will be forever here to offer you full supports !!!
