Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | P3 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in wooden case and flight case for outer packing |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5,000/ Sq m per month |
| Product Name: | Indoor P3 Led Display | Module Size(W * H): | 192mm*192mm |
|---|---|---|---|
| Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Full Color |
| Pixel Pitch: | 3mm | Resolution(W*H): | 64dots*64dots |
| Led Lamp: | Kinglight | Led Chip: | Epistar |
| High Light: | led stage display,stage led display |
||
Product Description:
>Standard dimension,module size:192*192mm,cabinet size:576*576mm,compatible model p6
>High precision die-casting aluminum cabinet,high weight,cute size,strong and stable,better meet indoor short viewing distance rental screen.
>Hanging standing installation design,accurate,fast and flexible positioning installation,can effectively respond to different application areas.
>P3 screen patented embedded module mask which assure good looking for screen surface after the power supply turns off.
>Use advanced calibration technology,exclusive technology on driving IC to remove ghost shadow,140 degree all around view angle to provide bigger view area,make sure image display smooth and delicate,high gray level and refresh rate,restore natural color and ensure HD camera photographic.
>Excellent ventilated fan design for heat dissipation,improving the stability and lifespan of screen.
| Pixel Pitch | PH2mm |
| Module Resolution(W*H) | 64dots(W)*64dots(H) |
| Pixel Configuration | 1R1G1B(3 in 1) |
| LED Encapsulation | Black SMD2121 |
| Pixel Density | 111111Pixel /m2 |
| Driving Method | 1/32 Scan |
| Refresh Frequency | ≥1000Hz |
| Driver IC | Special constant current IC with high refresh rate & high gray scale |
| Cabinet Size |
576mm*576mm |
| White balance Brightness | ≥1000cd/ m2 |
| Color Temperature | 8000K±500(adjustable) |
| Viewing Angle | Horizontal 140°Vetical 120° |
| Optimal Viewing Distance | >2m |
| Working Voltage | AC 220V/110V±10% |
| Module voltage | DC4.2V |
| Max Power Consumption | 538W/sqm |
| Avg. Power Consumption | 269W/sqm |
| Lifetime | 50000 hours |
| Operating Temperature | –10~ 65 |
| Net weight | 8.5Kg/pc |

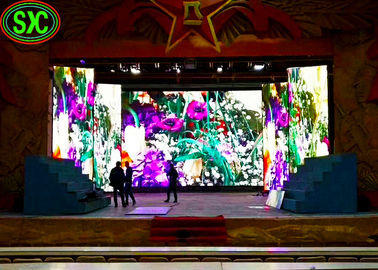

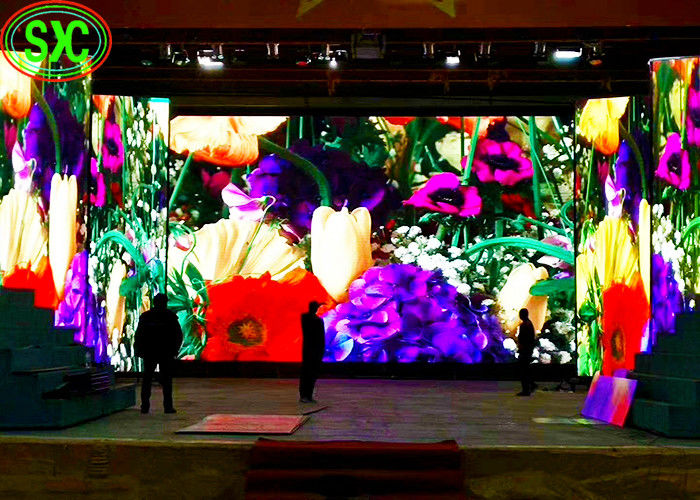

Wide applied in Stage background, stadiums,advertisement,banks,securities exchange,stations,shoping malls postal officees,schools,monitoring,restaurants,entertainment,enterprises etc...
Our Service
1)Training after order
After the order is placed, a processional training will be offered, including software use, operate safety, maintain equipment
2) Installation and debugging
BESD could send professionals to conduct on site installation and debugging in strict accordance with the requirements of the schemes and original manual.
3) Warranty
Warranty: 2 years warranty, lifetime maintenance
Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.
4) Maintenance
Maintenance principles: response in time, solve problems asap and ensure the use.
Maintenance period: In the maintenance period of the led display body, free of all maintenance charges
After maintenance period, only charge the material cost and labor cost.
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
