P6 LED Screen Outdoor Full Color LED Display Front Maintenance Cabinet

P6 LED Screen Outdoor Full Color LED Display Front Maintenance Cabinet

  • P6 LED Screen Outdoor Full Color LED Display Front Maintenance Cabinet
  • P6 LED Screen Outdoor Full Color LED Display Front Maintenance Cabinet
P6 LED Screen Outdoor Full Color LED Display Front Maintenance Cabinet
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P6
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: negotiations
Packaging Details: plywood case, flight case, you choose what you like.
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Usage: Outdoor Tube Chip Color: Full Color
Display Function: Video Pixels: 6mm
Module Size: 192*192mm Brightness: ≥ 7000cd/m2
Control System: Synchronous Or Asynchronous Warranty: 3 Years
High Light:

full color led signs outdoor

,

outdoor full color led screen

P6 LED Screen Outdoor Full Color LED Display Front Maintenance Cabinet

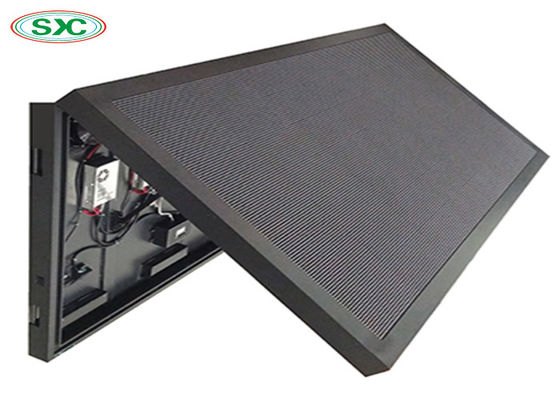

The front maintenance LED display is for the special environment, that can not be maintained from behind, but can only be maintained from the front.



Three ways:

1. the conventional way is to install with magnet, the module or unit board through the magnetic force of the magnet and the display structure tightly suck together, can be maintained by removing the LED display module or unit board, you can on the screen Body maintenance.



2. wall-mounted installation, and it cannot stand out too high. In this case, we design the way to maintain the cabinet.



3. The third method is the outdoor LED display. In the case of waterproof, positive maintenance is required. In response to this situation, we analyzed the LED display screen of the display screen and started to solve this problem. We finally achieved a breakthrough. Our solution is to fix the screws of the LED module from the front of the module, and there are screw holes on the front of the module. The back of the box needs to have a nut. This method is relatively costly.



Advantage:
1, easy to install, light weight, can be mounted to the wall, reliable wall lifting.
2, led before the maintenance of the display, which eliminates the need for maintenance space on the back of the display, to achieve a positive maintenance of the screen body, the display can be thin as a whole, for some special settings of the display screen is very suitable.



Parameter specification:

LED Lamps Type SMD3535(High Brightness LEDs)
LED Standard Real Pixel(1R1G1B)
Red Wavelength 625-630nm
Green Wavelength 515-530nm
Blue Wavelength 465-475nm
LED Module Pixel Pitch 6mm
Module Size 192mm x192mm
Module Resolution 32*32dots
LED Cabinet Cabinet Size customized
Cabinets Material Sealed Iron Cabinet
LED Display Pixel Density 27777pixels/sq.m
Drive IC MBI5024
Power Supply Series connection
Brightness >7500cd/sqm
Display Color 16.7million
Viewing Angle 160°(Horizontal),110°(Vertical)
Best Viewing Distance 6m~200m
Refresh Rate 2000hz
Input Voltage AC220V/50H or AC110V/60H
Output Voltage DC5V,40A
Grey Scale Levels 16bit
Display Colors R(1024) x G(1024) x B(1024)
MTBF 10,000 hours
Life-span 100,000 hours
Protection Level IP67
Failure percentage of leds     less than 0.0003
Working Temperature -25℃~65℃
Drive Mode 1/8 scaning
Working Humidity 10%~99%
Control System Control method Synchronization & Asynchronization
Control System (software) LINSN/Nova
Software LED Studio LINSN/Nova
Input Signal MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc
PC Operating system Microsoft Windows 7, 98, 2000, XP and Vista



Module process

P6 LED Screen Outdoor Full Color LED Display Front Maintenance Cabinet 0



Product item
P6 LED Screen Outdoor Full Color LED Display Front Maintenance Cabinet 1

P6 LED Screen Outdoor Full Color LED Display Front Maintenance Cabinet 2

Production process
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing


Company profile

P6 LED Screen Outdoor Full Color LED Display Front Maintenance Cabinet 3

P6 LED Screen Outdoor Full Color LED Display Front Maintenance Cabinet 4



Certificate
P6 LED Screen Outdoor Full Color LED Display Front Maintenance Cabinet 5

Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
P6 LED Screen Outdoor Full Color LED Display Front Maintenance Cabinet 6

Our Services
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.



After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.

FAQ
A. How about your After sales?
1. We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3. After warranty , we also can offer you the parts for replacement at our bottom price.
4. After sales, if you have any problem about our product,you can inform us by Email we will reply you at once when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you until it recovers well by remote control!


B. How is the fix installation problem?
will you send some guys to guide our install? what about the charge?
1. after you make the advance payment ,our engineer will give you a diagram of steel structure, it will help you know the constuction well.
2. you can invite us to your palace to make some instruction about the install screen.
3. about the fees: just provide the fee of Visa, round way tickets and board and lodging when the sale and engineer will knock your door.


C. What is the delivery time?
1. Delivery time: Accomplish manufacturing within 7-12 days after receiving the deposit.
2. Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.
