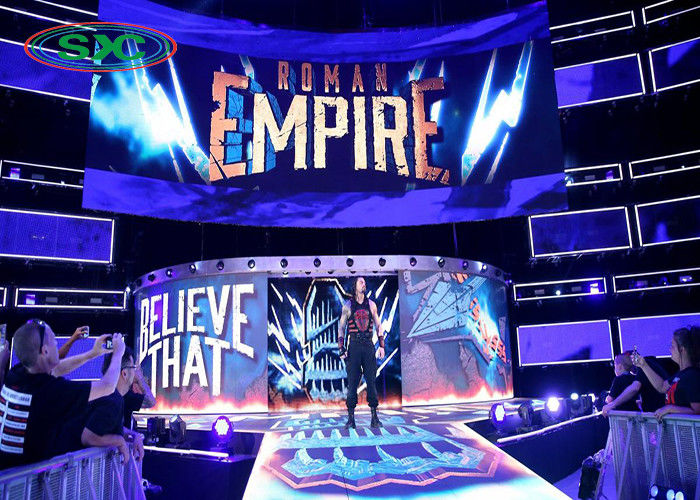

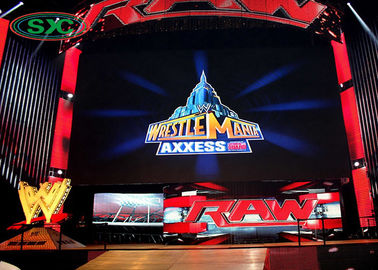

P3.91 Die Casting Aluminum Cabinet Background Stage Led Screen For Wrestling Matches
Product Description:
Basic Data
Pixel Pitch: 3.91mm
LED Type: SMD2121 3-in-1
Brightness: ≥1,200cd/m²
Max. Power Consumption: 600w/m²
IP Rating: IP64/IP43
Dimension: 500×500×77mm or 500*1000*77mm
Weight: 6.4 kg/pcs or 12.8kg/pcs
Features
High resolution models for indoor rental screen
Superb image quality, excellent color
Anti-deformation die casted aluminum cabinet, beautiful appearance
Newly geometric design on the face cover deep black
Slim, light weight led cabinets, easy and fast when assembly and dismantle
Support both hanging and stacking, flexible in cabinet assembly.
Black package LEDs for high contrast.
Wide viewing angles, the images visible in more than 160 degree viewing angles.
Perfectly suited for cross-rental/touring applications.
Spec
| Model | Unit | P3.91 |
| Pixel pitch | mm | 3.91 |
| Pixel resolution | pixel/m² | 65410 |
| pixel/cabinet | 16,384 with 128 x 128 | |
| Pixel configuration | - | SMD 3-in-1 2121 black packaged LED |
| Viewing angles | horizontal | 140° at 50% brightness |
| Vertical | 120° at 50% brightness | |
| Weight | kg/m² | 25.2 |
| kg/cabinet | 6.3 | |
| Brightness | CD/m² | ≥1,200 |
| Contrast ratio | - | 2,000:1 |
| Color temperature | K | 6,500 |
| Color processing | bit/color | 14 |
| Colors | number | 68.7 billion |
| Grayscale | steps | 16,384 |
| Best viewing distance | m | 4 - 40 |
| Refresh rate | Hz | 1,000 |
| Control system | - | LINSN/NOVA |
| Life time | h | 75,000 to 50% brightness down |
| Power consumption | W/m² | 600 / 300 |
| (maximum/average) | W/cabinet | 300 / 150 |
| Working voltage | - | AC220V or AC110V / 50-60 Hz |
| Cabinet dimension | mm | 500 x 500 x 77 |
| inches | 19. 7 x 19.7 x 3.0 | |
| Aspect ratio | - | 1:1 |
| Cabinet material | - | die-casted aluminum |
| Protection rate | IP | front: IP31, back: IP31 |
| Working temperature | °C | -10 to +40 |
| Working humidity | RH | 10 to 90% |
| Maximum stacking | cabinets | 30 |
| Maximum hanging | cabinets | 15 |
| Image source with LED video processor | - |
HDMI, CVBS, DVI, VGA, SDI, HD-SDI |
| Image source without video processor | - | DVI |
| Cabinet interfaces | - | 2 signal ports, 2 power ports |
| Maximum per power entry | cabinets |
220V power input: 18 110V power input: 9 |
P3.91 led screen
Module process
Buying Guides
In order to offer you a suitable solution, please follow the guides bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Product item
Many other hot product, welcome to visit our company!
company profile
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
Q1. Can I have a sample order for Indoor Full color LED Advertising Display?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Our average Production time is 7-10 days, after receiving the deposit.we will try our best to meet your demands
Q3. Do you have any MOQ limit for Indoor Full color LED Advertising Display order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Indoor Full color LED Advertising Display?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on Indoor Full color LED Advertising Display product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q:Why Choose us?
We are direct factory manufacturer for led display, so quick delivery is no problem.
More professional, best service,100% QC inspection before shipment.
