Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P4 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000sqm per month |
| Product Name: | P4 Led Display | Module Size(W * H): | 256mm*128mm And Other |
|---|---|---|---|
| Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Full Color |
| Pixel Pitch: | 4mm | Resolution(W*H): | 64dots*32dots |
| High Light: | sphere led display,advertising led display board |
||

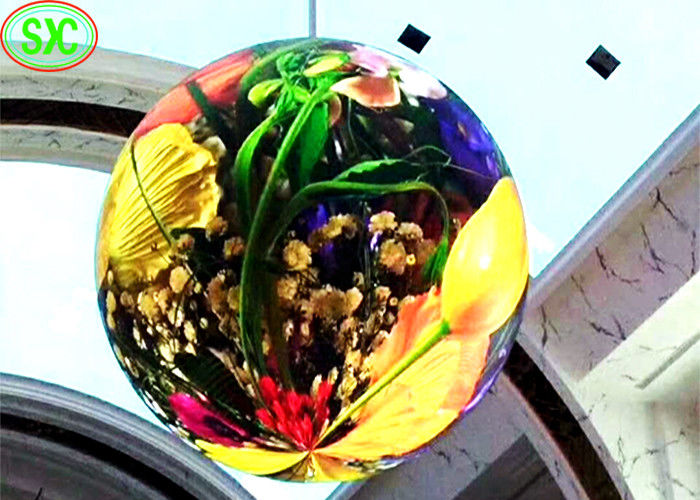

high definition indoor full color diameter 1.2m p4 soft module led ball screen hanging
Welcome to Shenzhen SCXK Electronic Co.,Ltd.we are the most professional provider of outdoor and indoor led displays with 12 years experience, we have the widest business coverage, the most complete product lines, the greatest comprehensive strength in the industry.with the perfect global marketing network, our products are sold to The Middle East, South America, North America, Europe, Southeast Asia, Australia, Africa and other regions.
As always do,SCXK will continue to spare no efforts in reinforcing its position as a product, technology and market. we always contribute our efforts to help our customers improve visual effect and fulfill its social responsibilities.

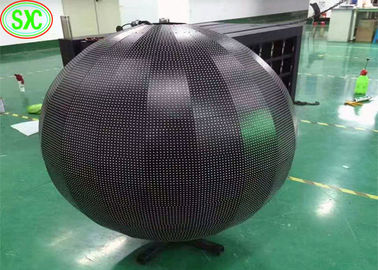

the led ball is made by 5 shapes indoor p4 soft module,1.2m diameter spherical steel structure and mooncell control card.this type point density:62500dots/sqm.
| Resolution/mm | 4 | |||||
| Pixel configuration | 1R1G1B | |||||
| Pixel density/pixels/m² | 62500/m² | |||||
| Module resolution | 64x32 | |||||
| Module size/mm | 256x128mm and other | |||||
| View distance | 4-150m | |||||
| White balance brightness | 2500 cd/㎡ | |||||
| Color temperature | 6500K-9500K | |||||
| Horizontal view angle | 120(degrees) | |||||
| Vertical view angle | 60(degrees) | |||||
| Signal Process bit | 10 or 16bit | |||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||
| Driving mode | Constant driving current | |||||
| Scanning mode | (1/16 scan) | |||||
| Frame rate | 60Hz | |||||
| Refresh frequency | >3000Hz | |||||
| Control mode | Computer synchronous | |||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||
| Out of control point | <1/10000 | |||||
| Working hours | ≥72hours | |||||
| Mean Time Between Failure | >10000hours | |||||
| Maximum power:/㎡ | <700W | |||||
| Average power:/㎡ | <200W | |||||
| Luminous point width between centres | Deviation<3% | |||||
| Brightness uniformity | <10% | |||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||
| Contrast | (1000:1) | |||||
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The wire or wireless controll system are available .( 3g and wifi controll will be welcome)
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
