Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P10 |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | usd10.00-14.00 1pcs |
| Packaging Details: | carton + wooden case. |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs a week. |
| Pitch: | 10mm | Module Size: | 320x160mm |
|---|---|---|---|
| Lamp: | Nationstar Or Kinglight | IC: | MBI 5124 |
| Driving Mode: | 1/4 Scan | Pixel: | 32x16dots |
| Pixel Density: | 10000dot/m2 | ||
| High Light: | led screen module,led sign module |
||
Outdoor smd3535 p10 led display module 320x160mm led display panel

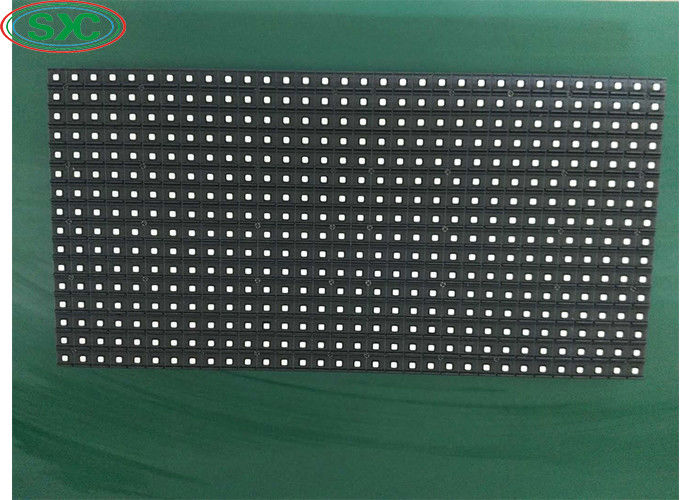

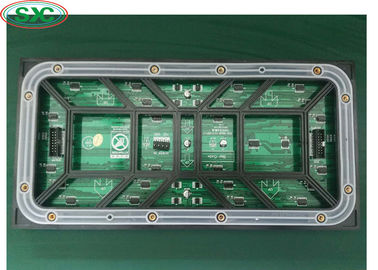

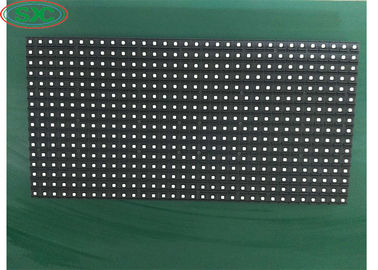

Module show
Module Parameter:
| Pixel pitch | 10mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 3535 |
| Module size | 320x160mm |
| Module weight | 0.35kg |
| Module resolution | 32*12dots |
Cabinet Parameter:
| Cabinet size | 960*960mm |
| Cabinet material | iron steel cabinet |
| Cabinet weight | 32.5kg+/-0.05kg |
| Cabinet resolution | 96:96 dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 10000 dots/m² |
| Brightness | ≥6500 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 10m |
| Max.power consumption | 900W/m² |
| Avg.power consumption | 350 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥600Hz |
| MTBF | ≥10000 hours |
| Lifespan | ≥50000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |
LED cabinet
LED screen composition
Product item
Many other hot product, welcome to visit our company!
Company profile
Certificate
Packaging and shipping
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need
