1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty

1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty

  • 1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty
  • 1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty
1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P8
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: carton+wooden case.
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000pcs a week.
Contact Now
Detailed Product Description
Color: Smd Module Size: 320x160mm
IC: MBI 5124 Lamp: Nationstar Or Kinglight
Pixel Density: 15625dots/m2 Driving Mode: 1/4 Scan
Warranty: 3 Year Working Temperature: -20-40°
High Light:

led screen module

,

led sign module

Outdoor rgb smd3535 p8 led display module led display panel 1/4 scan

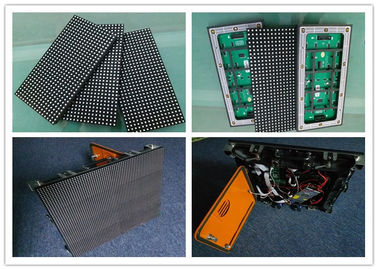

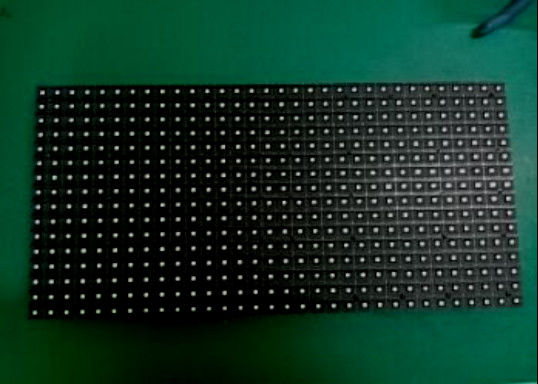

1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty 0
1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty 1
1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty 2
Module Parameter:

Pixel pitch8mm
Pixel configuration1R1G1B
LED type3-in-1 SMD 3535
Module size320x160mm
Module weight0.35kg
Module resolution32*12dots


Cabinet Parameter:

Cabinet size960*960mm
Cabinet materialiron steel cabinet
Cabinet weight32.5kg+/-0.05kg
Cabinet resolution96:96 dots
Ingress protectionFront/Rear IP65/IP54


Whole Screen Parameter

Pixel density15625 dots/m²
Brightness≥6500 cd/m²
Viewing angleH≥120° V≥120°
Min.viewing distance8m
Max.power consumption800W/m²
Avg.power consumption300 W/m²
Working voltage110~220VAC±15%
InterfaceHUB75
Colors16.7millon colors
Gray level14-16bits
Frame frequency≥60frames/s
Refresh rate≥600Hz
MTBF≥10000 hours
Lifespan≥50000 hours
Protective functionOver-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc.
Operating temperature-10℃ ~ +40℃
Operating humidity10-80% no condensation
Storage temperature-20℃ ~ +60℃
Storage humidity10-85% no condensation


Control System Parameter:

Video signal (with video processor)AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperatureAdjustable by software
Brightness level256 levels, automatic adjustment by software
Control wayComputer, video-synchronous, real-time, off-line, wireless, internet etc.


LED cabinet
1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty 3
LED screen composition
1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty 4
Product item
Many other hot product, welcome to visit our company!
1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty 5
1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty 6
Company profile
1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty 7
Certificate
1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty 8
Packaging and shipping
Shipping by sea,air or DHL,multiple shipping ways for your choice.
1/4 Scan LED Display Module Outdoor Rgb Smd3535 8mm Pitch 3 Years Warranty 9


Our service



Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need
