Place of Origin: | China |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P4 |
Minimum Order Quantity: | 1sqm |
---|---|
Price: | negotiation |
Packaging Details: | wooden case or flight case are available. |
Delivery Time: | 5-10 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5000sqm per month |
Usage: | Indoor | Tube Chip Color: | Full Color |
---|---|---|---|
LED Configuration: | 1R1G1B | Screen Dimension: | Customized |
Pixels Density: | 65410 Points /㎡ | LED Encapsulation Type: | SMD2121 |
Module Resolution: | W 64dot*H 32dot | Module Size: | 256x128mm |
Scanning Mode: | 1/16 Scan | Brightness: | ≥1200cd/m2 |
High Light: | rgb led screen,full color outdoor led display |
Indoor Full Color Led Display Panel P4 Die Casting Aluminum Cabinet
Our Services
Modern production science management
The company has advanced modern production equipment, scientific and rigorous management methods, attention to detail and quality. We have a high-quality team to provide customers with high quality, cost-effective products.
Pre-sale design
Before the sale, we listened carefully to the needs of our customers, reasonably selected products suitable for our customers, and developed a series of excellent LED display solutions. Customer satisfaction is our constant pursuit.
After the sale, we solved the problem
After the sale, we patiently answer the customer's questions, receive timely and accurate feedback from customers, improve product shortages, update product quality, solve customer concerns, and always adhere to a rigorous and innovative scientific attitude.
Module Parameter
Pixel pitch | 4mm |
Pixel configuration | 1R1G1B |
LED type | 3-in-1 SMD 2121 |
Module size | 256x128mm |
Module weight | 0.35kg |
Module resolution | 64*32dots |
Module quantity per cabinet | 8pcs |
Cabinet Parameter:
Cabinet size | 512x512mm |
Cabinet material | die casting aluminum |
Cabinet weight | 6.8kg+/-0.05kg |
Cabinet resolution | 128x128 dots |
Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
Pixel density | 62500 dots/m² |
Brightness | ≥1200 cd/m² |
Viewing angle | H≥120° V≥120° |
Min.viewing distance | 4m |
Max.power consumption | 750W/m² |
Avg.power consumption | 250 W/m² |
Working voltage | 110~220VAC±15% |
Interface | HUB75 |
Colors | 16.7millon colors |
Gray level | 14-16bits |
Frame frequency | ≥60frames/s |
Refresh rate | ≥1000Hz |
MTBF | ≥10000 hours |
Lifespan | ≥50000 hours |
Protective function | Over-heat/Over-load /Power-down /Power-leakage |
Operating temperature | -10℃ ~ +40℃ |
Operating humidity | 10-80% no condensation |
Storage temperature | -20℃ ~ +60℃ |
Storage humidity | 10-85% no condensation |
Control System Parameter:
Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
Color temperature | Adjustable by software |
Brightness level | 256 levels, automatic adjustment by software |
Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |
Product details

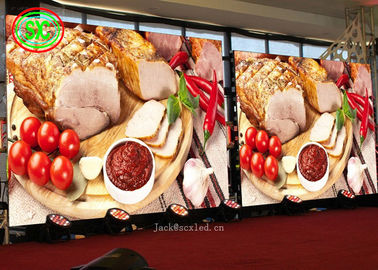

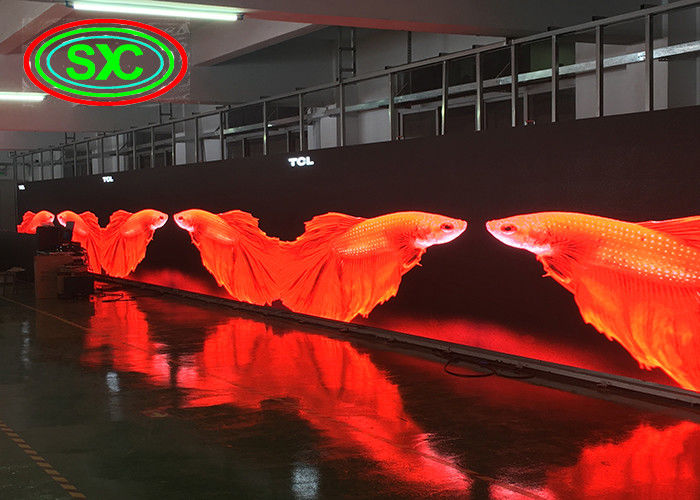

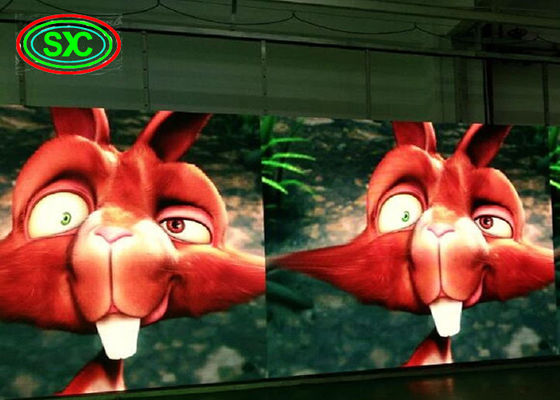

Installation case
Company profile
Certificate
Packaging and shipping
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Contact details
Website: www.scxled.cn
Save your time and money with us!
Contact Person: jack liu
Tel: +8615797878183
