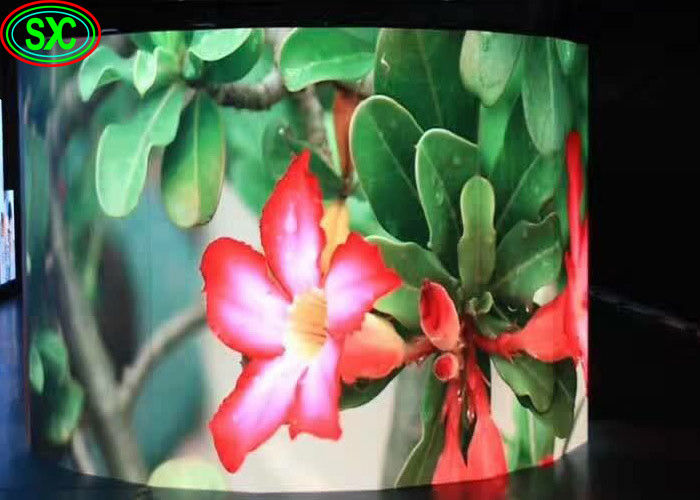

Curved Led Video Wall Screen P4.81 6500cd Brightness 500mm*500mm Cabinet 1R1G1B

Curved Led Video Wall Screen P4.81 6500cd Brightness 500mm*500mm Cabinet 1R1G1B

  • Curved Led Video Wall Screen P4.81 6500cd Brightness 500mm*500mm Cabinet 1R1G1B
  • Curved Led Video Wall Screen P4.81 6500cd Brightness 500mm*500mm Cabinet 1R1G1B
Curved Led Video Wall Screen P4.81 6500cd Brightness 500mm*500mm Cabinet 1R1G1B
Product Details:
Place of Origin: China
Brand Name: SCX
Certification: CE,ROHS,FCC,SASO
Model Number: P4.81
Payment & Shipping Terms:
Minimum Order Quantity: 1 SQM
Price: USD 600-2000
Packaging Details: Flight Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm
Delivery Time: 5-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 sqm per month
Contact Now
Detailed Product Description
Module Size: 250mm X 250mm Brightness: ≥6500 Cd
Led Lamp: NationStar IC: MBI 5153
Refresh Rate: ≥3840
High Light:

full color led signs outdoor

,

full color outdoor led display

Top-sale outdoor full color led display P4.81 curved led video wall 500mm*500mm cabinet





LED Display Features:


1.Super Light and Thin



8KG/panel with a depth of 70mm which is half of the depth of traditional LED screen,saving space and transportation cost.



2.High Refresh Rate


Refresh Rate≥3840Hz, offering impressive visual effect.



3.Noiseless


Free of fans and air conditions, excluding noise and reducing power consumption.



4.Fine and Smooth Picture


Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.



5.Seamless Splicing


High conformity of picture without gap and information missing, realizing a seamless splicing display.








Product Description

Item Specification
LED
Parameters
Luminous Intensity R:620-630, G:520-535, B:465-475
Wavelength R:400-500mcd, G:1800-2200mcd, B:350-450mcd
Test Condition R:25℃,20mA, G:25℃,20mA, B:25℃,20mA
LED Module Led Type SMD 3 IN 1
Pixel Pitch 4.81 mm
LED Shape & Size 2mm SMD 2121
Encapsulation Type 1R1G1B
Module Dimension 250mmx250mm
Module Resolution 64 ×64
Module Weight 0.20 KG
Pixel Density 43222
Driving Mode 1/13
Module Power Consumption 20 W
LED Cabinet Cabinet Size 500mm(W)x 500mm(H)/ 500mm(W)x 1000mm(H)
Cabinet Thickness 70 mm
Cabinet Resolution 128x128
Cabinet Material Die Casting Aluminum Cabinet
Screen Use Rent
Cabinet Weight 6.5 KG/12kg
Optical parameters Brightness ≥6500 cd
Contrast Ratio ≥3000:1
Single-point Brightness Correction Available
Single-point Color Correction Available
Surface Evenness GAP< 1mm
Color Temperature Condition 3500K~9500K,(can be adjustable)
Viewing angle 140°(Horizontal),140°(Vertical)
Gray Scale 16 bit
Minimum Viewing  Distance 3.91 m
Brightness Adjustment 0-100% 8 levels
Power
Supply
Operation Power AC90-260V 50-60HZ
Max Power Consumption 700 W /m²
Average Power Consumption 350 W /m²
Control
System
Control Mode Synchronous Control by Linsn system
Frame Update Frequency ≥600Hz
Screen Refresh Frequency ≥38400Hz
Gamma Correction (-0.5—5.0)
Input Signal Support Composite,S-Video,Component,
VGA,DVI,HDMI,SDI,HD_SDI
Control Distance UTP CAT5E:100m;Multi-mode Fiber:500m;
Single-mode Fiber:10km
Video Signal MPG /MPEG/MPV/MPA/
AVI/SWF/RM/RA/RMJ/ASF
Support VGA Mode 800 x 600, 1024 x 768,
1280 x 1024, 1600 x 1200,
Brightness Correction Dot by Dot,module by module,
cabinet by cabinet
Operating Temp. - 10° —+55° Celcius degree
Operating Humidity 10 - 90 % RH
Operating Life 100,000 Hours
Protection Level IP65
MTBF 5000 Hours
Out of Control Pixel Rate 0.01%











Workshop Machine



Curved Led Video Wall Screen P4.81 6500cd Brightness 500mm*500mm Cabinet 1R1G1B 0











Packing



Curved Led Video Wall Screen P4.81 6500cd Brightness 500mm*500mm Cabinet 1R1G1B 1










Our Services



Training Free of charges;In our workshop, we provide all the training including process of operation, installation, maintenance, system set up, etc.
Warranty

1, 3 years, .From beginning of installation finished the led display, During it , we will be responsible for all the quality problem.
2, After the completion of the project, we will conduct life maintenance of the system continuously and update the and software.
3, For the hardware equipment, we only collect expenses on components.

Guarantee

1, All the life time for Technology support , system update ,maintenance .
2, We guarantee that the equipment we provide are brand new, complete and unused before delivery .

Remark



1. We are manufacturer of LED display. We only provide the Screen, Cabinet and module,
but do not take charge for the installation in overseas; Technical support is available.
2. The above offer included the cabinet, power supply, power cord,and other basic components; etc.
3. The above offer do NOT included the delivery, insurance, installation and debugging cost;
4. Packing with Ply-wood box, or Carton ; If need flight case packing, up cost will be USD180/PC, 2-4cabinets/case
5.Problems during use.
some spare parts for you, once the screen get problems, please follow up below steps to solve it:
Step1: Take some pictures about the working status of the screen;
Step2: Replace the broken cabinet by the new cabinet;
Step3: Contact with us, and send the pictures to us, we will help you to analyze the problems.
Step4: If it is necessary, please post it to our company, we will maintain it for you as soon as possible, and then deliver it to you.
