Place of Origin: | China |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P6 |
Minimum Order Quantity: | 1sqm |
---|---|
Price: | negotiation |
Packaging Details: | wooden case or flight case are available. |
Delivery Time: | 7-15 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5000sqm per month |
Pitch: | 6mm | Pixel Configuration: | Rgb 3in1 |
---|---|---|---|
Module Size: | 192x192mm | Pixel Density: | 27778 Dots/sqm |
Cabinet Size: | 960x960mm | Driving Mode: | 1/8 Scan |
Brightness: | ≥6500cd/m2 | Warranty: | 3 Years |
High Light: | advertising led display board,outdoor advertising led display |
SMD Advertising LED Screens Billboard Display 6mm Pitch 27778 Dots / Sqm
Module Parameter
Pixel pitch | 6mm |
Pixel configuration | 1R1G1B |
LED type | 3-in-1 SMD 3535 |
Module size | 192x192mm |
LED lamp | KingLight or Nationstar |
Module resolution | 32x32dots |
Module quantity per cabinet | 25pcs |
Cabinet Parameter
Cabinet size | 960x960mm |
Cabinet material | Ironed steel cabinet |
Cabinet weight | 32.5kg |
Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
Pixel density | 27777 dots/m² |
Brightness | ≥6500 cd/m² |
Viewing angle | H≥120° V≥120° |
Min.viewing distance | 6m |
Max.power consumption | 750W/m² |
Avg.power consumption | 290 W/m² |
Working voltage | 110~220VAC±15% |
Interface | HUB75 |
Colors | 16.7millon colors |
Gray level | 14-16bits |
Frame frequency | ≥480frames/s |
Refresh rate | ≥2000Hz |
MTBF | ≥100,000 hours |
Lifespan | ≥50000 hours |
Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
Operating temperature | -10℃ ~ +60℃ |
Operating humidity | 10-80% no condensation |
Storage temperature | -20℃ ~ +60℃ |
Storage humidity | 10-85% no condensation |
Control System Parameter
Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
Color temperature | Adjustable by software |
Brightness level | 256 levels, automatic adjustment by software |
Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

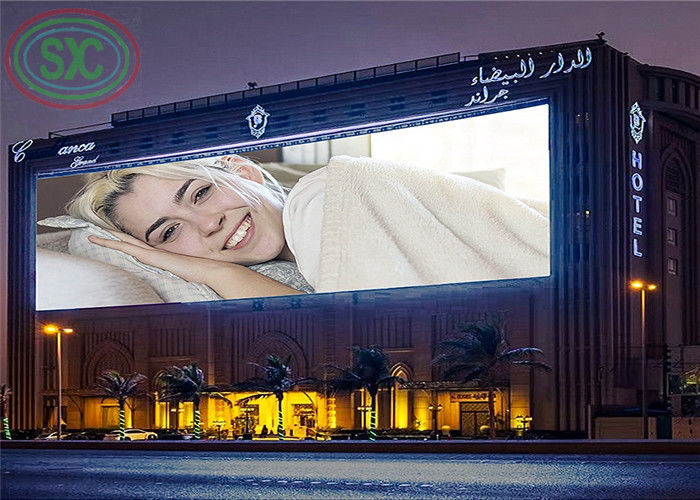

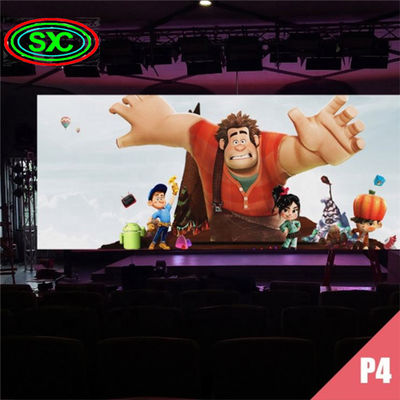

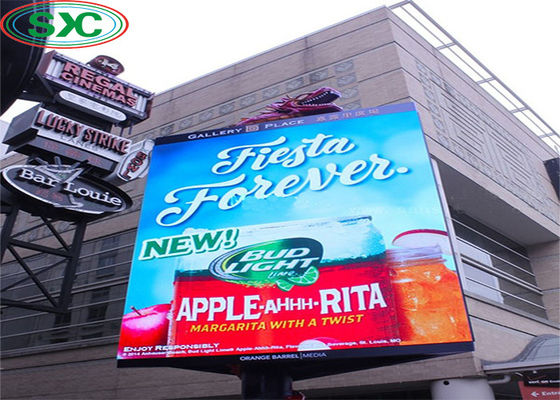

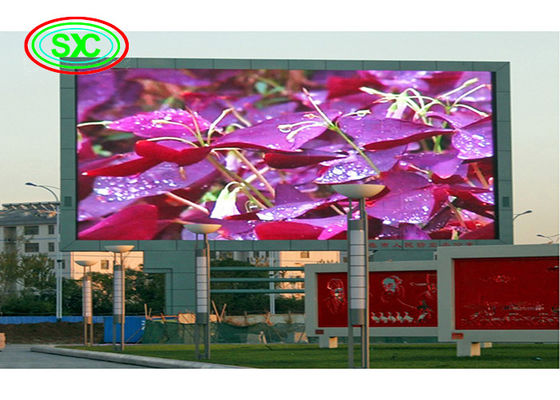

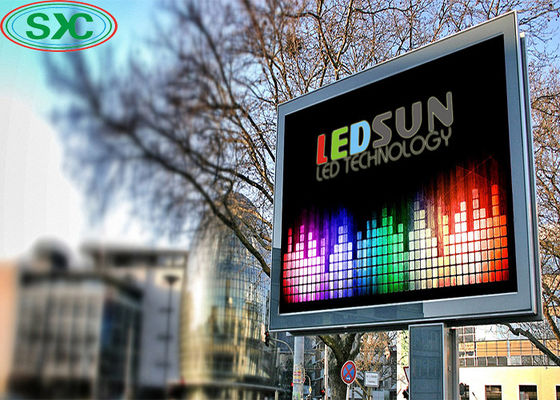

Detailed picture
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
Contact details
Sales representatives: Andy
Skype: Andy liu Wechat:liu15179028073
Tel:+86-15797878183
E-mail:Andy_he@scxled.cn
Web: www.scxled.cn
Save your time and money with us!
Contact Person: jack liu
Tel: +8615797878183
