1R1G1B Indoor Transparent LED Screen Glass High Transparency Display For Showcase

1R1G1B Indoor Transparent LED Screen Glass High Transparency Display For Showcase

  • 1R1G1B Indoor Transparent LED Screen Glass High Transparency Display For Showcase
  • 1R1G1B Indoor Transparent LED Screen Glass High Transparency Display For Showcase
1R1G1B Indoor Transparent LED Screen Glass High Transparency Display For Showcase
Product Details:
Place of Origin: China
Brand Name: SCX
Certification: CE,ROHS,FCC,SASO
Model Number: P3.91-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 SQM
Price: USD 1000-10000
Packaging Details: Wooden Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm
Delivery Time: 10-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sqm per month
Contact Now
Detailed Product Description
Led Cabinet: 1000*1000mm Led Lamp: SMD 2121
Brightness: ≥2500 Viewing Distance: 3m-80m
Configuration: 1R1G1B
High Light:

transparent led panel

,

transparent led display

Newest indoor transparent Glass High Transparency Transparent Led Display Screen for Showcase





Product Description



1. Good visualization: Glass based design allows the light to pass through the glass without any influence to the building structure around..



2. Ultra-thin, and ultra-light. With only 8mm width and 12kg/m2 weight, the installed glass display takes very little space and without any increase in the glass wall loading weight.



3. Frameless structure Asram glass display can directly stick to the inside part of the glass wall by special designed glue, and after 10 seconds curing, it will connect with the glass wall firmly. Thus decrease the installation difficulty and cost greatly.



4. Easy and convenient maintenance. It can be maintained from inside, safer and more convenient.



5. Saving lighting costs of the whole building. Besides good advertising effect, Asram LED glass display also helps lighting the glass wall, thus makes the glass wall more attractive and saving a lot lighting cost.



6. Wide use range. Wherever the glass wall is, Asram glass LED display can be installed. Such as bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, etc.







Product Description



Pixel Pitch 3.91mm-7.82mm
Pixel Density 32768dots/sqm
Color Configuration 1R1G1B
LED Package SMD2121
Module Size 500mm x 125mm
Module Resolution 128 x 16
Drive Mode 1/16 Scan, Constant Current
Standard Cabinet Size 500mm x 1000mm or 1000mmx1000mm
Cabinet Weight 7KG / 14KG
Brightness >1000cd/sqm
Viewing Distance 3m-80m
Viewing Angle H: 120°; V:120°
Refresh Rate 1920HZ
Frame Rate 120frame/sec
Grey Scale 16.7M colors(Synchronized)
Power Input AC110V/ 220V ±10, 50HZ
Max Power Consumption 450W/sqm
Ave. Power Consumption 150W/sqm
Storage Temperature -30~+70 degree
Working Temperature -20~+50 degree
Blind Spot Rate <1/10000
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof IP30








 Package and Delivery



About packing, mostly, we use wooden case, if you want to use flight case, we can do flight case for you .

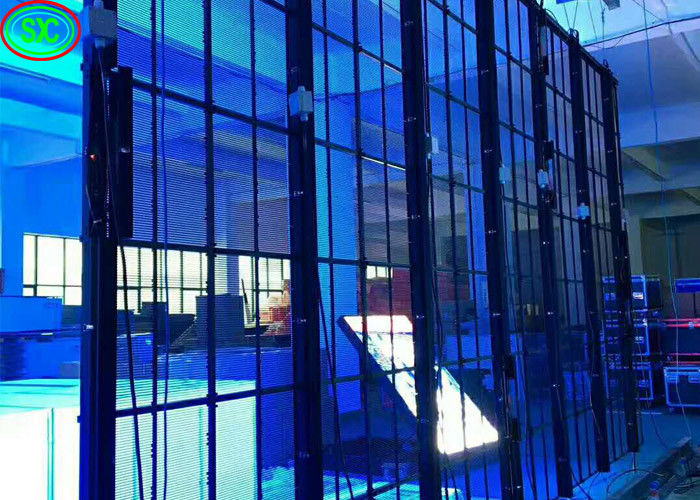

1R1G1B Indoor Transparent LED Screen Glass High Transparency Display For Showcase 0

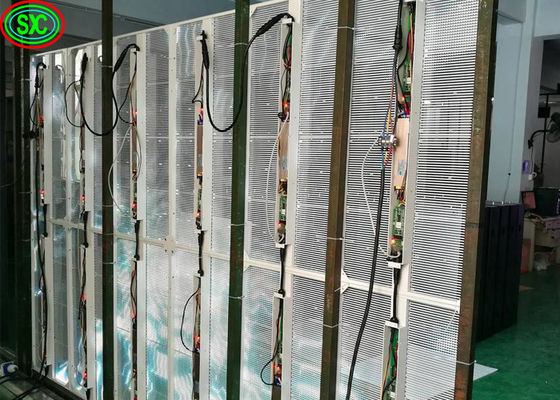

1R1G1B Indoor Transparent LED Screen Glass High Transparency Display For Showcase 1
