Indoor Stage LED Screens HD Advertising P3.91/P4.81 Mall Full Color Display

Indoor Stage LED Screens HD Advertising P3.91/P4.81 Mall Full Color Display

  • Indoor Stage LED Screens HD Advertising P3.91/P4.81 Mall Full Color Display
  • Indoor Stage LED Screens HD Advertising P3.91/P4.81 Mall Full Color Display
  • Indoor Stage LED Screens HD Advertising P3.91/P4.81 Mall Full Color Display
  • Indoor Stage LED Screens HD Advertising P3.91/P4.81 Mall Full Color Display
Indoor Stage LED Screens HD Advertising P3.91/P4.81 Mall Full Color Display
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CE,ROHS,FCC,SASO
Model Number: SCXK-P3.91/P4.81
Payment & Shipping Terms:
Minimum Order Quantity: 1SQM
Price: USD 600-2000
Packaging Details: wooden case, flight case
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm month
Contact Now
Detailed Product Description
Led Lamp: Kinglight Module Size: 250*250MM
Module Power Consumption: 20W Cabinet Thickness: 70MM
Cabinet Size: 500*500mm Pixel Configuration: RGB 3 IN 1
White Balance Brightness: >2500cd/㎡
High Light:

led stage display

,

stage background led screen

Indoor ultra-thin HD advertisingP3.91/P4.81 mall full color LED display widescreen large viewing angle

♦ Features:



1. Ultra-high resolution and wide viewing angel.

2. Fixing and rental use creates more applications.

3. High refresh rate 1920Hz, best scan method for energy saving, perfect grey level.

4. Wireless: seamless installation simplifies the complex inner structure, improving its safety and stability.

5. Thin: it is featured by high strength, toughness, precision and it is hard to be deformed.

6. Easy: the die-casting aluminum cabinet is modular designed, each cabinet of the screen can be easily dismantled and assembled(replaced).

7. Low: low noise, light weight, low cost for transportation and assembling without tools with low cost for assembling.

8. Economical: Design of low power consumption, no need cooling fan, meet the demand of quiet work environment.

9. Perfect uniformity and no mosaic.



♦ Product specification

indoor SMD P3.9
Lamp size 3.9
Resolution/mm 3.9
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 65410/m²
Module resolution 64x64
Module size/mm 250x250
View distance ≥3m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >2500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss


Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)


Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)


Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Product overviews
Items Indoor Led display:
P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Dance floor led display
Material steel,aluminum ,die casting aluminum
Certificates CE, FCC,RoHS, CCC, UL
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 5 to 7 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.



About us:

Established in 2005, clients cover more than 50 cuntries, Mainly USA, Europe, dubai, north and mid america, south america, asia. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service. Even face with harshest environment,we can carefully choose different suitable materials and make the best offer.



Small Pixel LED Screen for Clearer Pictures



The Small Pixel LED Display features small pixel modules which presents clearer and vivid images even in low brightness and dark days. The display is suitable for various applications including security monitoring center, scheduling command platform, smart city, television studio and high-end meetings.



Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

Indoor Stage LED Screens HD Advertising P3.91/P4.81 Mall Full Color Display 0

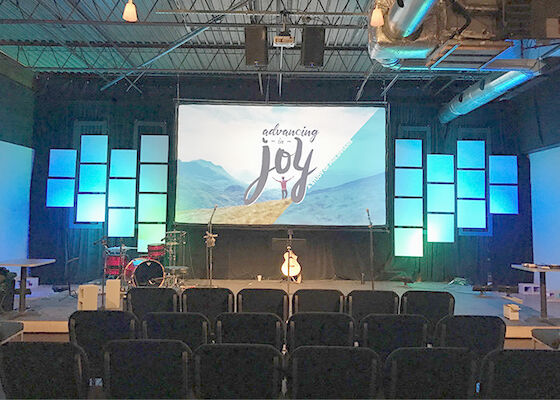

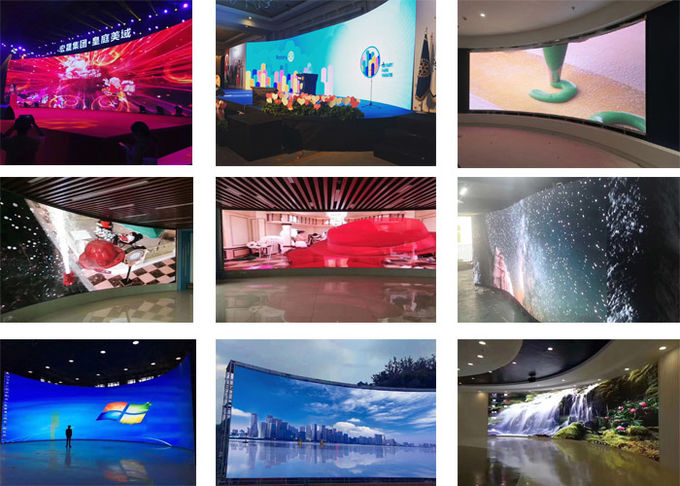

Our Projects


140º/140º View Angle Indoor Led Display Board , Led Screen Video Wall P3.91/P4.81
