Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCX |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SCX-P8 |
| Minimum Order Quantity: | 1 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sqm month |
| Operation Power: | 110V50HZ/ 220V 60HZ | Module Size: | 256*128mm |
|---|---|---|---|
| Scanning Mode: | 1/4 | Refresh Frequency: | >3500Hz |
| Life-all-white(brightness Halving): | 100000hours | ||
| High Light: | led information display,full color led screen |
||

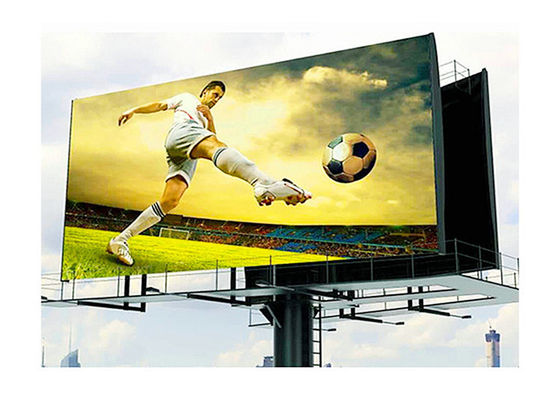

Outdoor P8 high brightness led screen video wall smd full color suspension LED large display for large square supermark
Features of p8 outdoor led display:
1. Wide viewing angle: The specially designed masks can make the horizontal viewing angle up to 150 degrees.
2. Ghost canceling: Exquisite and clear pict quality with no ghost.Both upstream and downstream ghosts can be automatically canceled.
3. Hight refresh rate: Over 1880Hz refresh rate to ensure the picture wrinkle-less,line-less and stable.
4. Low brightness and Hight gray scale: 14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.
Application scopes of p8 outdoor led display: widely applied to outdoor advertisement,stage shows,advertising screes,concerts and so on.
| Pixel pitch | P8 | ||
| Module Parameters | Pixel pitch | 8 mm | |
| Pixel Density | 15625 pixels/m2 | ||
| LED Shape | DIP/SMD | ||
| LED Configuration | 1R1G1B | ||
| Module Resolution | 40*40/32*16 pixel | ||
| Module Size | 320*320/256*128 | ||
| Drive Method | 1/4,1/8 | ||
| Cabinet Parameters | Cabinet Resoltuion | 80*80/96*96 | |
| Cabinet Size | 640*640/768*768 mm | ||
| Cabinet Weight | 63kg/m2 | ||
| Display Parameters | Optical | Brightness | ≥7000 cd/m2 |
| Viewing angle | H/V 120/120 | ||
| Best Viewing Distance | 8-28 m | ||
| Display Color | 16.7 million | ||
| Grey Scale | 10bits/1024levels | ||
| Power | Max power consumption | 1000 W/m2 | |
| Ave power consumption | 500 W/m2 | ||
| Working Voltage | 220V / 110V | ||
| Control system | Frame Frequency | 60--85 HZ | |
| Refresh Rate | ≥1200 HZ | ||
| Data Transmission | CAT 5/ Optic Fiber | ||
| Image Source | S-Video, PAL/ NTSC | ||
| Controlling system | linsn, Nova, Mooncell, ZD, Xixun, Lumen, Dbstar |
||
| Format | Video Compatibility DVI, VGA, composite | ||
| Reliability | Working Temperature | -20~65 ℃ | |
| Working Humidity | 10-90% RH | ||
| Life Span | 100,000 Hours | ||
| MTBF (Ave No Faliure Time) | 5000 Hours | ||
| Pixel failing Rate | 0.01% | ||
| IP Rate | IP 65 | ||
2017 amazing Led display outdoor new advertising led display outdoor HD 3G wireless led street billboard p8
New products instead of tradition street light box, Sunrise is a brand created to make a consistent impression that etches our desired brand image into the minds of our target prospects,
HD advertising video dazzle coming to your life and your business, flourshing everywhere.
Flexible: Shorter lead time, multiple branding exposure and cost effective.
Reachable: Reaching out the unreachable population
Bright: Clear LED Displays on lamp posts along the busiest roads
Company Information
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.
Certifications:
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
