LED Billboards Waterproof Outdoor Full Color P10 football Stadium Comercial Advertising Sport Perimeter LED Display

LED Billboards Waterproof Outdoor Full Color P10 football Stadium Comercial Advertising Sport Perimeter LED Display

  • LED Billboards Waterproof Outdoor Full Color P10 football  Stadium Comercial Advertising Sport Perimeter LED Display
  • LED Billboards Waterproof Outdoor Full Color P10 football  Stadium Comercial Advertising Sport Perimeter LED Display
  • LED Billboards Waterproof Outdoor Full Color P10 football  Stadium Comercial Advertising Sport Perimeter LED Display
  • LED Billboards Waterproof Outdoor Full Color P10 football  Stadium Comercial Advertising Sport Perimeter LED Display
LED Billboards Waterproof Outdoor Full Color P10 football  Stadium Comercial Advertising Sport Perimeter LED Display
Product Details:
Place of Origin: CHINA
Brand Name: SCX
Certification: CE/CB/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 7 sqm
Price: negotiation
Packaging Details: wooden case,flight case
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 6500 SQM month
Contact Now
Detailed Product Description
Application:: Stadium Advertising Color: Full Color
Panel Size:: 320mm*160mm Pixel Pitch:: 10mm
Name:: P10 PH10 10mm Football Stadium Perimeter Led Display Brightness:: 4000nits/6500nits
Product Keywords:: Football Stadium Perimeter Led Display Display Function:: Graphics;Videos;Animation;;Photos;Advertising
Scan Mode::: 1/4 Scan Screen Dimension:: Size By Customized
High Light:

led digital billboards

,

led advertising billboards



Outdoor rgb smd3535 p8 p10 perimeter football sports stadium led screen display pantalla paineis billboard

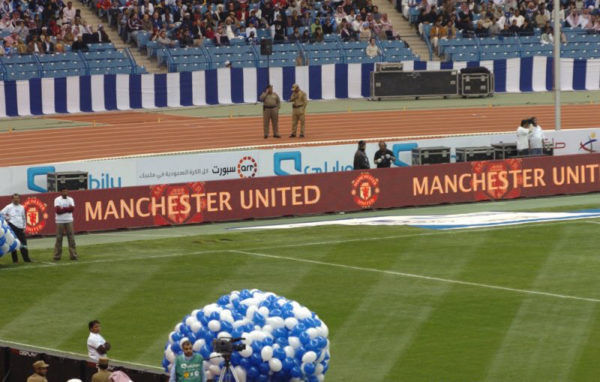

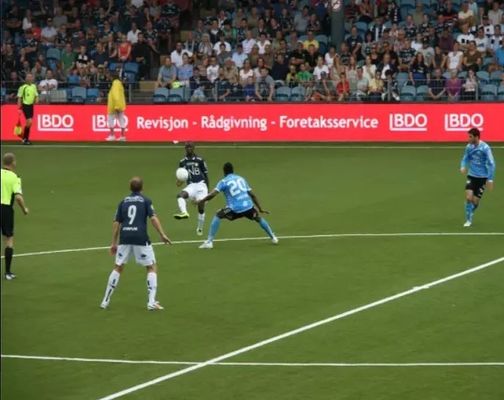

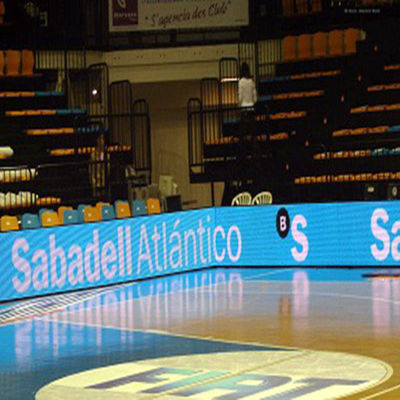

p10 perimeter football sports stadium led screen display application: The Sport Perimeter LED Display is used for advertising around sports venues such as football fields and basketball courts. While enjoying the exciting games, the advertisement information is cyclically played. It is the perfect combination of modern sports and commercial management. The humanized design also protects the personal safety of athletes.



p10 perimeter football sports stadium led screen display  structure features

First, the unique structure

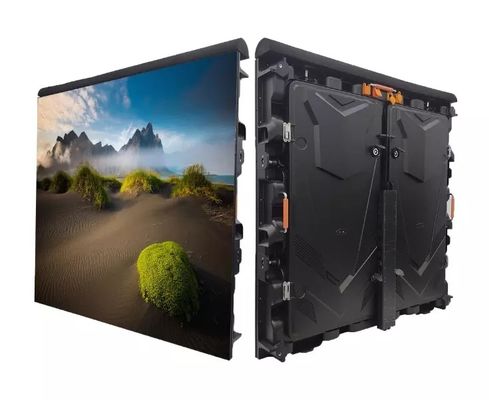

The Sport Perimeter LED Display is made up of many single LED cabinets. The LED cabinets are connected by snap-on connectors. This design can be easily and quickly disassembled for easy maintenance. There is a separate supporting foot behind each box. The angle between the screen and the ground can be adjusted through the supporting feet. The angle range is adjustable from 65° to 90° to ensure the viewing angle of the audience.



Second, security protection design

Considering that the player is fast and has a strong impact, the player and The Sport Perimeter LED Display must be protected. Therefore, the soft mask can be used in the design to effectively protect the screen and internal structure. Secondly, the top of the LED screen is soft. Pad, in case the player collides with the screen, both protect the player's body and ensure that the display can play normally.



Third, high protection level

The Sport Perimeter LED Display needs to withstand the test of harsh environments such as sun exposure, rain, high and low temperature changes, ultraviolet rays, earthquake resistance, typhoon, etc. Therefore, the protection level is at least IP65 or above, so the production process is relatively complicated, and the outdoor led stadium fence screen is guaranteed. Stability and security.

LED Billboards Waterproof Outdoor Full Color P10 football  Stadium Comercial Advertising Sport Perimeter LED Display 0LED Billboards Waterproof Outdoor Full Color P10 football  Stadium Comercial Advertising Sport Perimeter LED Display 1LED Billboards Waterproof Outdoor Full Color P10 football  Stadium Comercial Advertising Sport Perimeter LED Display 2



outdoor full color waterproof football stadium perimeter led screen Specification



outdoor SMD P10
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 32x16
Module size/mm 320x160
View distance 7-500m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <950W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



LED Billboards Waterproof Outdoor Full Color P10 football  Stadium Comercial Advertising Sport Perimeter LED Display 3LED Billboards Waterproof Outdoor Full Color P10 football  Stadium Comercial Advertising Sport Perimeter LED Display 4



♦ Packaging and shipping



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

Outdoor Led Panels P10 Football Stadium Perimeter 960*960mm Advertising Screen Display Video Billboard 4

♦ Applications



--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.

LED Billboards Waterproof Outdoor Full Color P10 football  Stadium Comercial Advertising Sport Perimeter LED Display 6LED Billboards Waterproof Outdoor Full Color P10 football  Stadium Comercial Advertising Sport Perimeter LED Display 7LED Billboards Waterproof Outdoor Full Color P10 football  Stadium Comercial Advertising Sport Perimeter LED Display 8

Why choose us



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

FAQ

Q1. Are you a factory or trading company?

A:We are a factory.

Q2. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q3. What about the lead time?

A:Our products could be shipped by Sea, by Air or by Express. Which method to be used is based on the weight and size of the package and with consideration of customer's requirements.
By sea: 10-30 days;By air: 5-10 days ; By express: 3-6days.

Q4. What's the shipping way, shipping time?

A:Our products could be shipped by Sea, by Air or by Express. Which method to be used is based on the weight and size of the package and with consideration of customer's requirements.
By sea: 10-30 days;By air: 5-10 days ; By express: 3-6days.

Q5. How to proceed an order for led light?

A: Please send us your purchase order by Email, Fax, Skype, Whats App, Facebook or making a call, and we will send you PI as your approval. Please let us know the following information for your order.
1) Product information: Quantity, Specification (Item , logo and Packing requirement)
2) Delivery time required
3) Shipping information: Company name, Detailed shipping address with zip code and Phone number.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.
