Ultra Thin Outdoor Full Color RGB LED Display HD P10 RGB 3 In 1 Pixel Configuration

Product Details:

Place of Origin:	CHINA
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL
Model Number:	P10

Payment & Shipping Terms:

Minimum Order Quantity:	1 sqm
Price:	negotiation
Packaging Details:	wooden case ，flight case it is up to you
Delivery Time:	7-10 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5000 sqm month

Contact Now

Detailed Product Description

Lamp Size:	3535	Pixel Configuration:	RGB 3 In 1
Module Size/mm:	320x160	Refresh Frequency:	>1200Hz
Scanning Mode:	1/16
High Light:	led display rgb , rgb led screen

HD quality P10 outdoor full color LED display ultra-thin

♦ P10 Advertising Led Billboard Application places

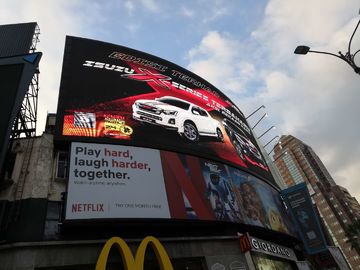

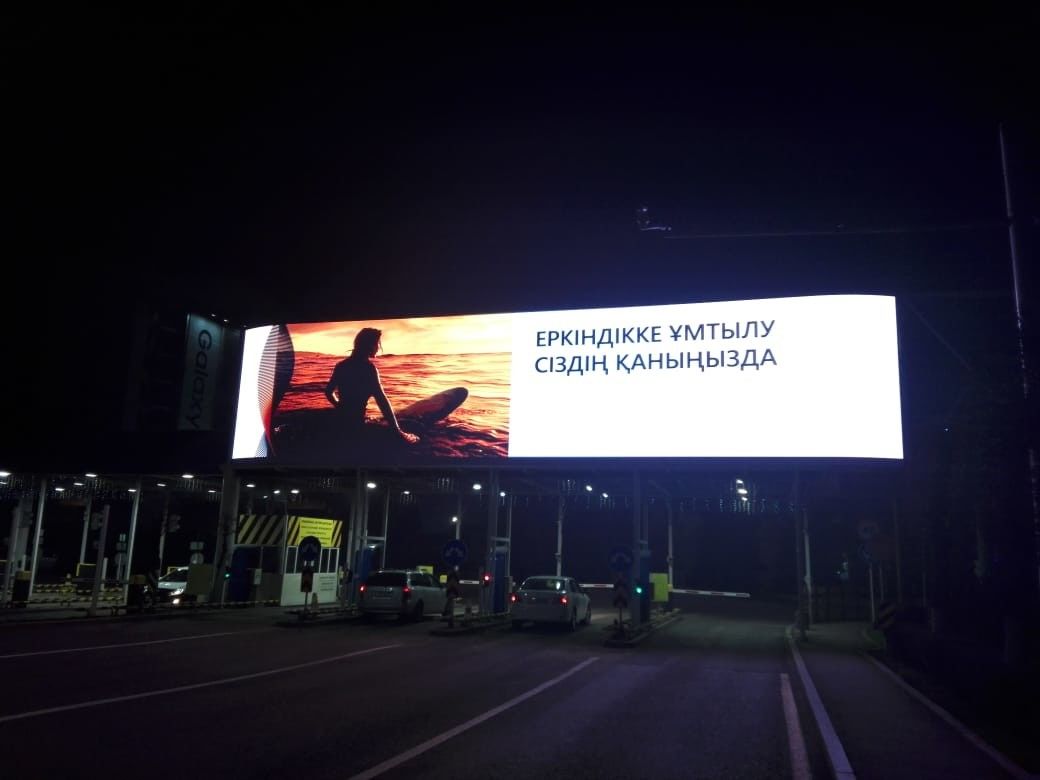

Ideal for outdoor advertisement media, government & enterprise project culture & tourism, sports, propaganda image, commercial real estate.

♦ High applicability led billboard
IP65, fully sealing design, rain proof, dust proof, adapted to all weather surroundings.

♦ Product specification

indoor SMD P10

Lamp size

3535

Resolution/mm

Pixel configuration

RGB 3 in 1

Pixel density/pixels/m²

10000/m²

Module resolution

32x16

Module size/mm

320x160

View distance

≥9m

Single point brightness adjust

Can be added

Single point color adjust

Can be added

White balance brightness

>1800cd/㎡

Color temperature

6500K-9500K

Horizontal view angle

120(degrees)

Vertical view angle

120(degrees)

Signal Process bit

10 or 14 bit

Grey process

1024x1024x1024 16834x16834x16834 65536x65536x65536

Control distances

Internet cable:100m, multimembrane:500m, monofilm:5km

Driving mode

Constant driving current

Scanning mode

1/16

Frame rate

60Hz

Refresh frequency

>1200Hz

Control mode

Computer synchronous

Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point

<1/10000

Working hours

≥72hours

Mean Time Between Failure

>5000hours

Life time

100000hours

Life-all-white(brightness halving)

50000hours

Environment temperature range

Operating temperature range: -20-45℃ Storing temperature range: -30-65℃

Maximum power:/㎡

<1100W

Average power:/㎡

<280W

Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment

WindowsNT,Windows1999,WindowsXP

Luminous point width between centres

Deviation<3%

Brightness uniformity

<10%

Color uniformity(chromaticity coordinate)

±0.003

Power supply request

AC85-264V(50Hz-60Hz)

Contrast

(1000:1)

System protection

Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

Humidity(working)

working:10-95%

Humidity(storing)

storing:10-95%

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

Electronics Digital P10 Outdoor Full Color Led Display Billboards Ultra Thin

♦ Quick Detail

1. Super lighter and thinner; 

2. Easy to connection and uninstall; 

3. It can display,words,texts,graphics and videos.

4. High resolution and high frequency dynamic image.

♦ Applications

LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.

♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.

♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

♦ Our contact

Sales Engineer Manager: Bosco

Wechat : 0086-151-7778-0539

Mob.: 0086-151-7778-0539

Our team will be forever here to offer you full supports !!!
