|Place of Origin:||CHINA|
|Minimum Order Quantity:||1 sqn|
|Packaging Details:||flight case, wooden case, carton, it is up to you.|
|Delivery Time:||7-10 working days|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||5000 sqm month|
|Pixel Density/pixels/m²:||10000/m²||Module Size/mm:||320*160|
|Refresh Frequency:||>3500Hz||Scanning Mode:||(1/4)|
|Module Resolution:||32*16||View Distance:||9-400m|

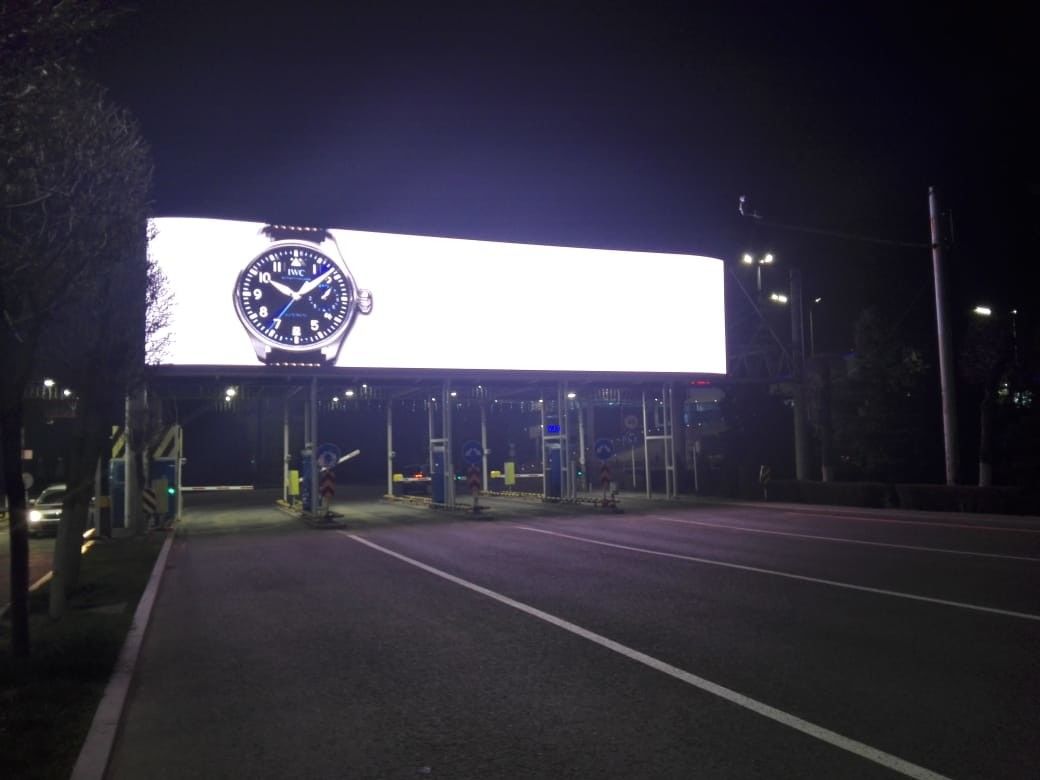

SMD P10 HD advertising RGB LED display outdoor with Nationstar
1) High Reliability, Long Durability
2) Low Power Consumption, Energy Saving
3) High Brightness,Long Lifespan
4) Very Competitive Price, Good Uniformity
5) Easy and Fast Installation,Timely Delivery
♦ Product specification
|outdoor SMD P10|
|Single point brightness adjust||Can be added|
|Single point color adjust||Can be added|
|White balance brightness||>8000cd/㎡|
|Horizontal view angle||120(degrees)|
|Vertical view angle||60(degrees)|
|Signal Process bit||10 or 16bit|
|Grey process||1024x1024x1024 16834x16834x16834 65536x65536x65536|
|Control distances||Internet cable:100m, multimembrane:500m, monofilm:2km|
|Driving mode||Constant driving current|
|Control mode||Computer synchronous|
|Brightness adjusted range||
Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
|Out of control point||<1/10000|
|Mean Time Between Failure||>5000hours|
|Environment temperature range||Operating temperature range: -20-45℃|
LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
|Luminous point width between centres||Deviation<3%|
|Color uniformity(chromaticity coordinate)||±0.003|
|Power supply request||AC85-264V(50Hz-60Hz)|
|System protection||Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration|
|Items||Indoor Led display:
P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Dance floor led display
DJ led screen
Transparent led display
|Material||steel,aluminum ,die casting aluminum|
|Certificates||CE, FCC,RoHS, CCC, UL|
|30% deposit before production, 70% balance before shipping|
|Packing:||Standard Export Carton with fully Polyfoam or Pearl Wool|
|Anti-shaking wooden case|
|Shipping:||5 to 7 working days upon receiving deposit payment|
|After-Sales-Service:||Lifetime with professional engineer support for free.|
|Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
|Using Range||Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
•With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
•High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
•The advertising contents can be changed at any time, for different customers and various advertisements.
•you can know the display operation anytime, anywhere.
• it can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Our contact
Our team will be forever here to offer you full supports
