Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P10 |
| Minimum Order Quantity: | 10sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sqm month |
| Module Size:: | 160*320mm | Warranty:: | 2 Years |
|---|---|---|---|
| Product Name:: | P10 Outdoor LED Display Screen LED Full Color High | Brightness:: | 6500cd/sqm |
| LED Chip:: | Epistar | Life Span:: | 100000hours |
| Application: | Outdoor Advertising Led | Name:: | P10 Outdoor Led Screen |
| Certificate:: | CE RoHS FCC EMC Lvd Certifications | Refresh Rate:: | 1920Hz-3840Hz |
| High Light: | perimeter led display,perimeter led screen |
||
SCX LED Outdoor standing two poles fixed led display p10 SMD 3535 1/4 scan programmable led sign
High Brightness with Low Luminous Decay
Adopted high quality LED to make sure the brightness always in a high level, FO series can produce crystal clear images in virtually any lighting conditions, even in the sun directly.
♦ Product specification
| outdoor SMD P10 | ||||||||||||||
| Resolution/mm | 10 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 10000/m² | |||||||||||||
| Module resolution | 32*16 | |||||||||||||
| Module size/mm | 320*160 | |||||||||||||
| View distance | 9-400m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3500Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <900W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

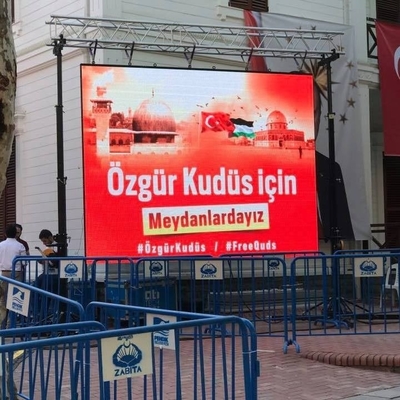

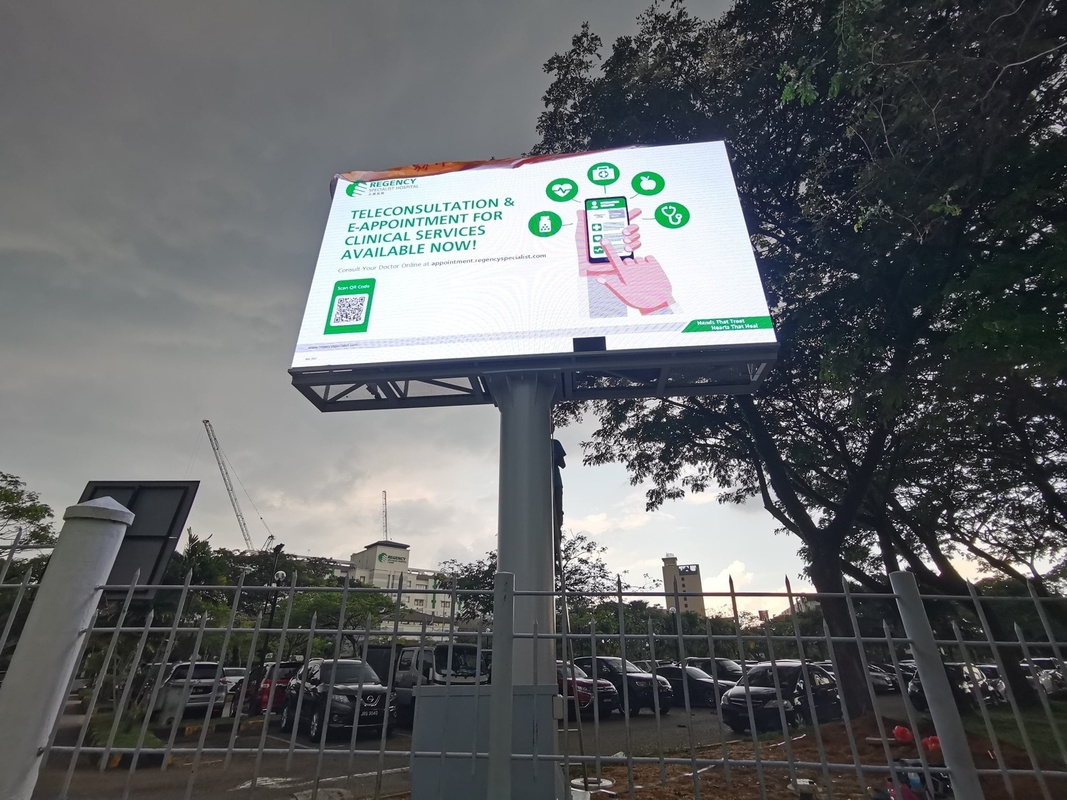

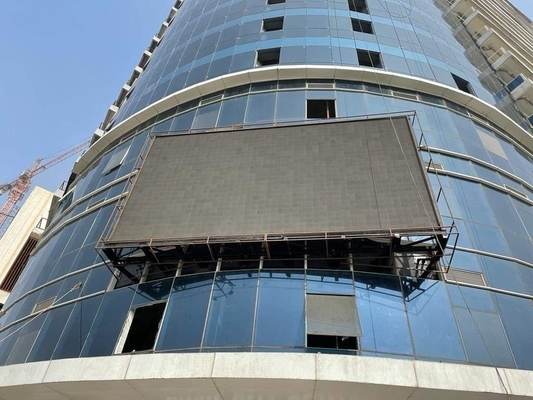

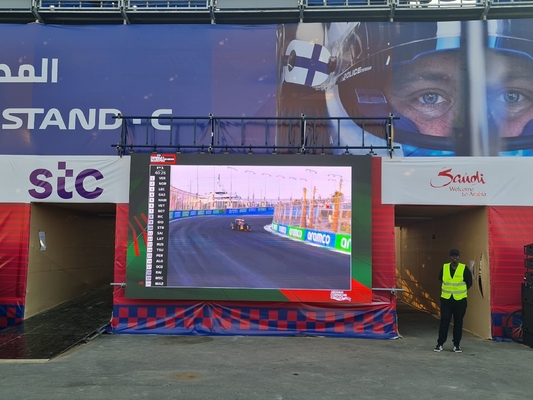

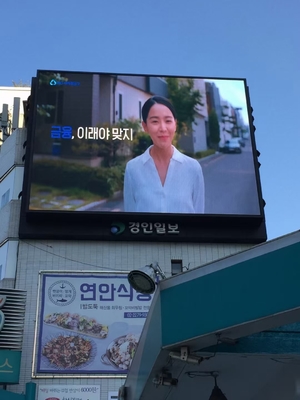

Our case
Our company
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Our services
1.Providing professional technology supporting
2.Instructing installation and remote control
3.Trainning workers for free
4.Providing free procurement services
5.Customer first is our service tenet
