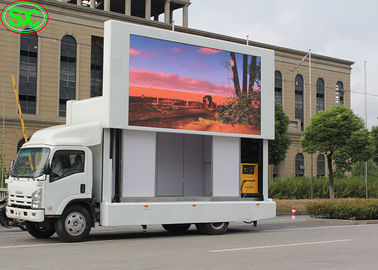

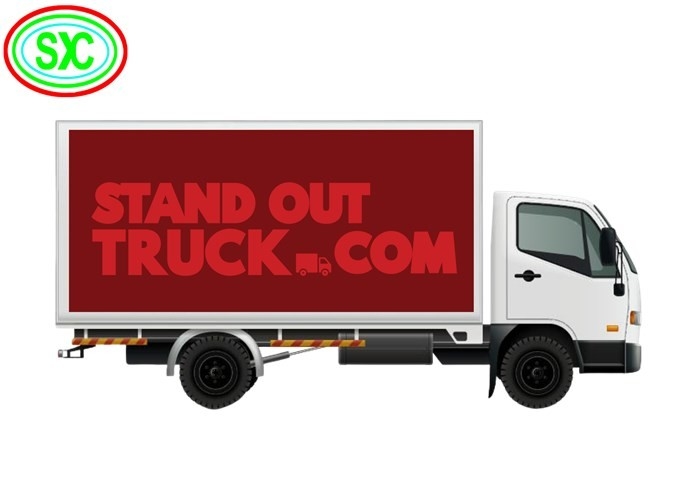

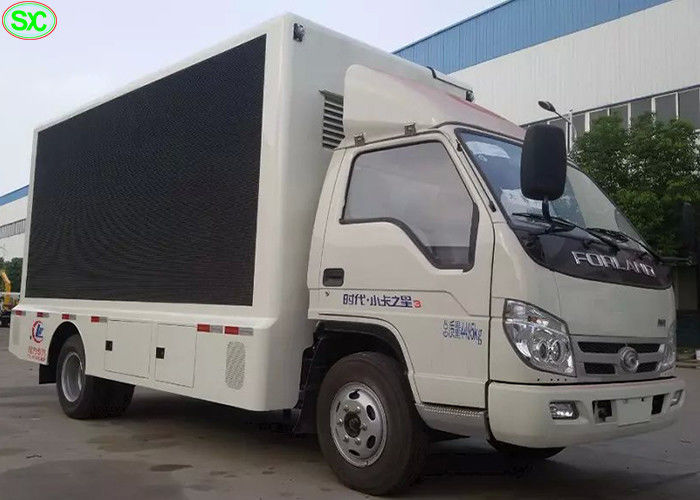

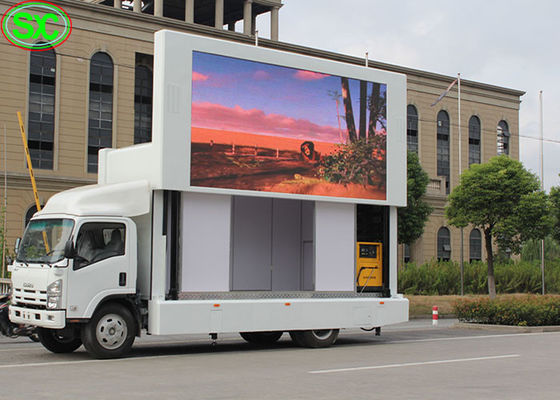

4mm Pitch Trailer Mounted Led Screen Mobile Electronic Billboards Outdoor Led Tv

Product Details:

Place of Origin:	China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL
Model Number:	SMD P4

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pitch:	4mm	Product Name:	P4 Trailer Mounted Led Screen Mobile Electronic Billboards
GPS Function:	Yes	Pixel Density:	40000pixels Per Sqm
Control System:	WIFI, 3G	Warranty:	5 Years
High Light:	mobile led screen rental , truck mounted led screen

P4 trailer mounted led screen mobile electronic billboards outdoor led tv

♦ High Brightness to ensure crystal clear images in virtually any lighting conditions.

♦ High IP Rating to withstand the most strict weather conditions.

♦ Good Heat Dissipation to ensure a long life span

♦ Product specification

outdoor P4 SMD

Lamp size

2727

Resolution/mm

Pixel configuration

RGB 3 in 1

Pixel density/pixels/m²

62500/m²

Module resolution

64x32

Module size/mm

320*160MM

View distance

≥3m

Single point brightness adjust

Can be added

Single point color adjust

Can be added

White balance brightness

>8000cd/㎡

Color temperature

6500K-9500K

Horizontal view angle

120(degrees)

Vertical view angle

60(degrees)

Signal Process bit

10 or 14 bit

Grey process

1024x1024x1024 16834x16834x16834 65536x65536x65536

Control distances

Internet cable:100m, multimembrane:500m, monofilm:5km

Driving mode

Constant driving current

Scanning mode

constant driving static

Frame rate

60Hz

Refresh frequency

>3000Hz

Control mode

Computer synchronous

Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point

<1/10000

Working hours

≥72hours

Mean Time Between Failure

>5000hours

Life time

100000hours

Life-all-white(brightness halving)

50000hours

Environment temperature range

Operating temperature range: -20-45℃ Storing temperature range: -30-65℃

Maximum power:/㎡

<750W

Average power:/㎡

<300W

Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment

WindowsNT,Windows1999,WindowsXP

Luminous point width between centres

Deviation<3%

Brightness uniformity

<10%

Color uniformity(chromaticity coordinate)

±0.003

Power supply request

AC85-264V(50Hz-60Hz)

Contrast

(1000:1)

System protection

Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

Humidity(working)

working:10-95%

Humidity(storing)

storing:10-95%

4mm Pitch Trailer Mounted Led Screen Mobile Electronic Billboards Outdoor Led Tv 0

♦ Our Service:

Pre-sales support
1. We offered technical advice to our customers before buying our products.
2. Help customers to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our customer’s specific usage.

After- sales service
1. We promise our customers 3 years warranty service!
2. We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for our customer.
3. We promise a life time follow up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.

♦ Applications

LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.
