Outdoor HD Full Color RGB LED Display P10 IP65 Waterproof With 1/4 Drive Mode

Outdoor HD Full Color RGB LED Display P10 IP65 Waterproof With 1/4 Drive Mode

  • Outdoor HD Full Color RGB LED Display P10 IP65 Waterproof With 1/4 Drive Mode
  • Outdoor HD Full Color RGB LED Display P10 IP65 Waterproof With 1/4 Drive Mode
  • Outdoor HD Full Color RGB LED Display P10 IP65 Waterproof With 1/4 Drive Mode
Outdoor HD Full Color RGB LED Display P10 IP65 Waterproof With 1/4 Drive Mode
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm month
Contact Now
Detailed Product Description
Resolution/mm: 10 Pixel Configuration: 1R1G1B
Pixel Density/pixels/m²: 10000/m² Module Size/mm: 320x160
Scanning Mode: (1/4) Refresh Frequency: >3000Hz
Color Temperature: 6500K-9500K
High Light:

rgb led screen

,

full color outdoor led display

P10 outdoor HD full color LED display with 1/4 drive mode IP65 waterproof





♦ Our mission:



To be the premier providr of creative,marketing and innovative solutions devoted to helping other companies succeed and grow.





♦ Product Description



1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

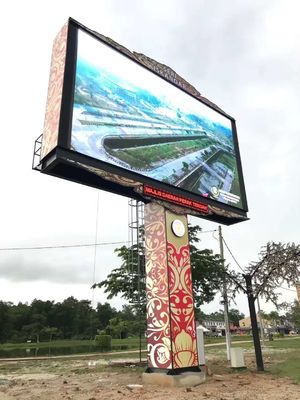

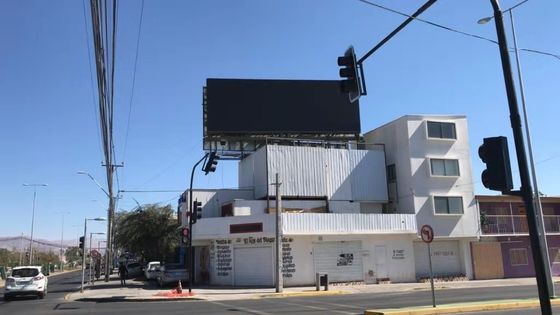

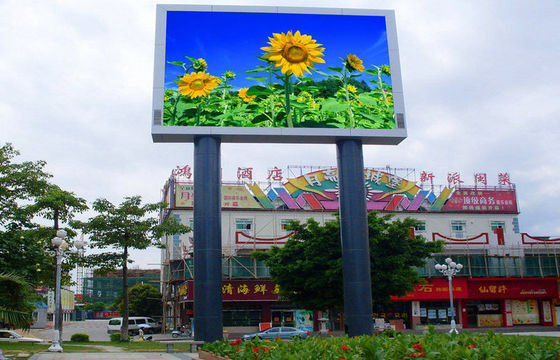

♦ Applications



--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.





♦ Technical specification



outdoor SMD P10
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 16x16
Module size/mm 160x160
View distance 4-250m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <950W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%





♦ Production process



1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing

Outdoor HD Full Color RGB LED Display P10 IP65 Waterproof With 1/4 Drive Mode 0



♦ Packaging and shipping



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.
