Advertising P4 indoor HD full color LED display wall front magnet, high resolution

Advertising P4 indoor HD full color LED display wall front magnet, high resolution

  • Advertising P4 indoor HD full color LED display wall front magnet, high resolution
  • Advertising P4 indoor HD full color LED display wall front magnet, high resolution
  • Advertising P4 indoor HD full color LED display wall front magnet, high resolution
  • Advertising P4 indoor HD full color LED display wall front magnet, high resolution
Advertising P4 indoor HD full color LED display wall front magnet, high resolution
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P4
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm month
Contact Now
Detailed Product Description
Lamp Size: 2020 Resolution/mm: 4
Pixel Configuration: RGB 3 In 1 Pixel Density/pixels/m²: 62500/m²
Module Size/mm: 256x128 Scanning Mode: 1/16
Refresh Frequency: >1200Hz Color Temperature: 6500K-9500K
High Light:

rgb led screen

,

full color outdoor led display

Advertising P4 indoor HD full color LED display wall front magnet, high resolution





♦ Quick Detail

1. no size restrict on this product
2. you could remove any whole cabinet freely by tool then do maintenance which will not affect other cabinets
3. no need to build maintenance access, save steel structure, you could fix to wall directly or hang it
4. it could work as stage rental led screen
5. the price is very practical and effective

♦ Product specification

indoor  SMD P4
Lamp size 2020
Resolution/mm 4
Pixel configuration RGB  3 in 1
Pixel density/pixels/m² 62500/m²
Module resolution 32x32
Module size/mm 256x128
View distance ≥4m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >1800cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 120(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >1200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast  (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

 Advertising P4 indoor HD full color LED display wall front magnet, high resolution 0

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

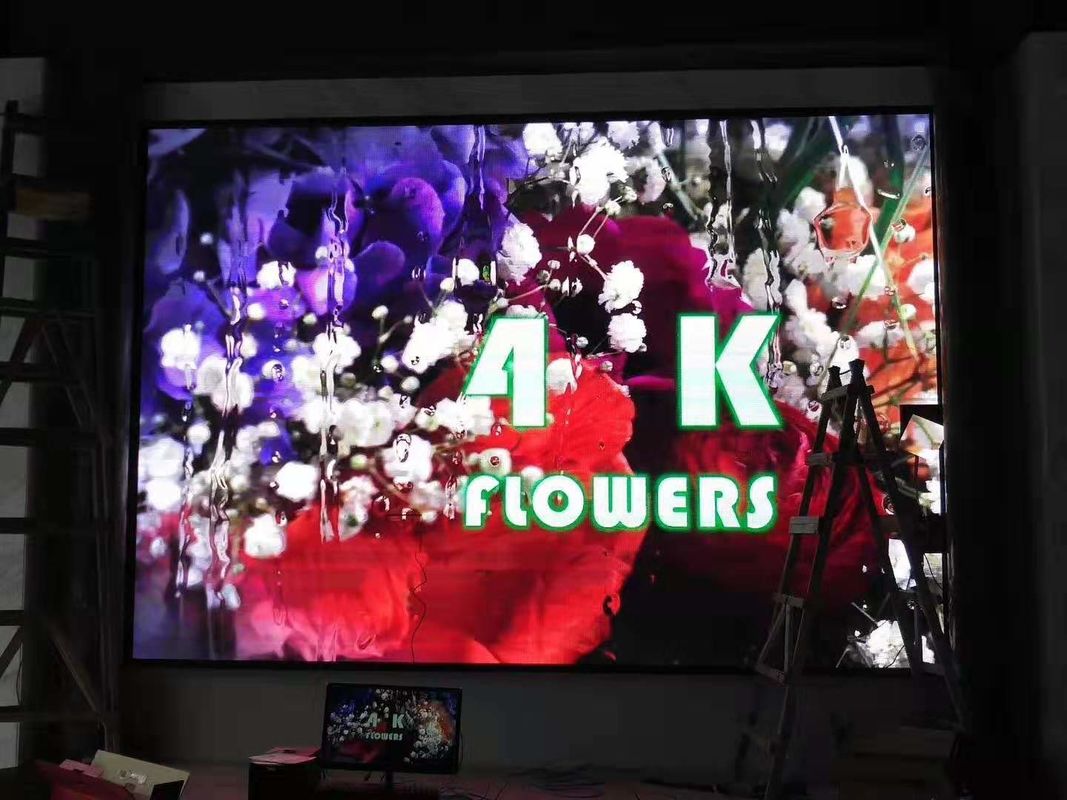

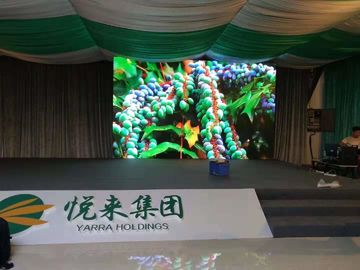

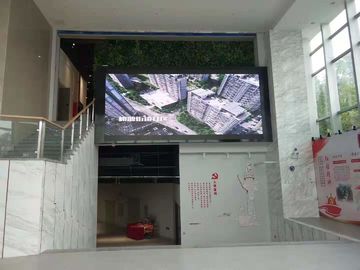

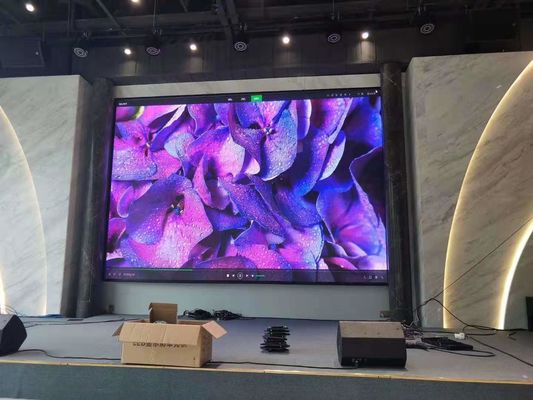

♦ Our project



Advertising P4 Indoor Full Color LED Display Wall Front Service With Magnet



Advertising P4 Indoor Full Color LED Display Wall Front Service With Magnet
