Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CE,ROHS,FCC,SASO |
Model Number: | P2.5 |
Minimum Order Quantity: | negaotiation |
---|---|
Price: | negaotiation |
Packaging Details: | wooden case ,flight case ,it is up to you . |
Delivery Time: | 7-10 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, D/A |
Supply Ability: | 5000 sqm month |
Lamp Size: | 2121 | Resolution/mm: | 2.5 |
---|---|---|---|
Pixel Configuration: | RGB 3 In 1 | Pixel Density/pixels/m²: | 160000/m² |
Module Size/mm: | 160x160 | View Distance: | ≥1m |
Scanning Mode: | 1/32 | Frame Rate: | 60Hz |
Refresh Frequency: | >4200Hz | ||
High Light: | led display rgb,full color outdoor led display |
Ultra-thin P2.5mm indoor full color flexible stage LED screen, 5 year warranty
♦ High reliability:
The products adopt the static scanning technology and the module design technology to offer higher reliability and stability.
♦ Diversified display modes:
The products support multiple display modes.
♦ Product specification
indoor SMD P2.5 | ||||||||||||||
Lamp size | 2121 | |||||||||||||
Resolution/mm | 2.5 | |||||||||||||
Pixel configuration | RGB 3 in 1 | |||||||||||||
Pixel density/pixels/m² | 160000/m² | |||||||||||||
Module resolution | 64x32 | |||||||||||||
Module size/mm | 160x160 | |||||||||||||
View distance | ≥1m | |||||||||||||
Single point brightness adjust | Can be added | |||||||||||||
Single point color adjust | Can be added | |||||||||||||
White balance brightness | >2500cd/㎡ | |||||||||||||
Color temperature | 6500K-9500K | |||||||||||||
Horizontal view angle | 120(degrees) | |||||||||||||
Vertical view angle | 60(degrees) | |||||||||||||
Signal Process bit | 10 or 14 bit | |||||||||||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
Driving mode | Constant driving current | |||||||||||||
Scanning mode | 1/32 | |||||||||||||
Frame rate | 60Hz | |||||||||||||
Refresh frequency | >4200Hz | |||||||||||||
Control mode | Computer synchronous | |||||||||||||
Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
Out of control point | <1/10000 | |||||||||||||
Working hours | ≥72hours | |||||||||||||
Mean Time Between Failure | >5000hours | |||||||||||||
Life time | 100000hours | |||||||||||||
Life-all-white(brightness halving) | 50000hours | |||||||||||||
Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
Maximum power:/㎡ | <1100W | |||||||||||||
Average power:/㎡ | <280W | |||||||||||||
Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
Luminous point width between centres | Deviation<3% | |||||||||||||
Brightness uniformity | <10% | |||||||||||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
Contrast | (1000:1) | |||||||||||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
Humidity(working) | working:10-95% | |||||||||||||
Humidity(storing) | storing:10-95% |
♦ Product Overviews
Items | Indoor Led display: P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 Outdoor Led display: P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
Material | steel,aluminum ,die casting aluminum |
Payment terms |
30% deposit before production, 70% balance before shipping |
T/T | |
Western Union | |
Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
Flight case; | |
Anti-shaking wooden case | |
Shipping: | 5 to 7 working days upon receiving deposit payment |
After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem ( not by man-made damage) |
|
Using Range | Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on. |
♦ Applications

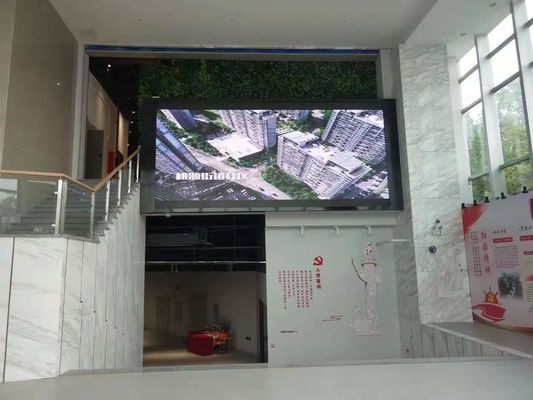

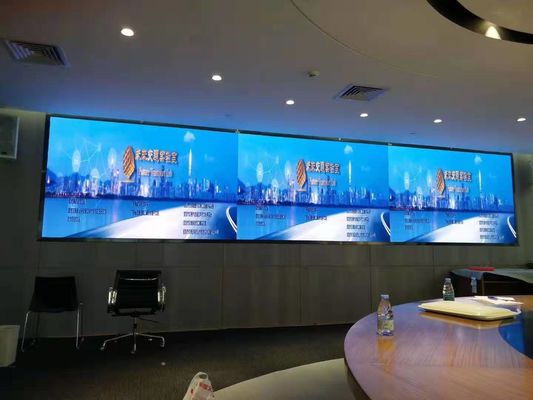

LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Fast delivery: Usually 6-8 working days
6. Excellent R&D team,factory Price and assure you quality goods.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Detailed Cabinet and Installation
Package
Our team will be forever here to offer you full supports
