P4 Waterproof HD IP65 Car LED Sign Display RGB 3 In 1 Pixel Configuration

P4 Waterproof HD IP65 Car LED Sign Display RGB 3 In 1 Pixel Configuration

    • P4 Waterproof HD IP65 Car LED Sign Display RGB 3 In 1 Pixel Configuration
    • P4 Waterproof HD IP65 Car LED Sign Display RGB 3 In 1 Pixel Configuration
    • P4 Waterproof HD IP65 Car LED Sign Display RGB 3 In 1 Pixel Configuration
  • P4 Waterproof HD IP65 Car LED Sign Display RGB 3 In 1 Pixel Configuration

    Product Details:

    Place of Origin: CHINA
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: SMD P4

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 5000 sqm month
    Contact Now
    Detailed Product Description
    Resolution/mm: 4 Pixel Configuration: RGB 3 In 1
    Pixel Density/pixels/m²: 62500/m² Module Size/mm: 256*128MM
    View Distance: ≥3m Warranty: 5 Years
    Refresh Frequency: >4200Hz Power Supply: Meanwell

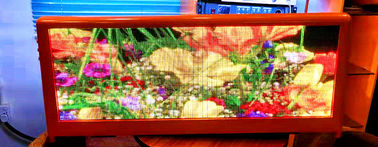

    P4 waterproof HD IP65 video car LED signage display, taxi car roof LED display, light and low power consumption





    ♦P4 Taxi LED Display

    1. High reliability. 24h/7day advertising all the time and all weather conditions.

    2. Low power consumption.9-36V DC input.Vehicle battery is enough to make the taxi top LED sign work.
    3. High brightness. Using P5 SMD LED display module, luminance reach 5000nit plus. Our taxi top LED sign can be seen very clearly in the sunlight.



    Perfect Brightness and Chromaticity Calibration


    Perfect calibration between brightness and chromaticity delivers best picture quality at every place. The brightness difference is set to less than 2%, and chromaticity difference is less than 0.005. You may also adjust the brightness and chromaticity as per your choice.



    Get Every Detail in Picture

    We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.



    ♦ Product specification


    Lamp size
    Resolution/mm 4
    Pixel configuration RGB 3 in 1
    Pixel density/pixels/m² 62500/m²
    Module resolution 64x32
    Module size/mm 256*128MM
    View distance ≥3m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >8000cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 14 bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
    Driving mode Constant driving current
    Warranty 5 years
    Frame rate 60Hz
    Refresh frequency >4200Hz
    Control mode Computer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡ <950W
    Average power:/㎡ <350W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%



    P4 Waterproof IP65 Video Car LED Sign Display , taxi roof led display



    ♦ Packaging and shipping

    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.



    ♦ Why choose us:

    Continues Quality

    With more than 10 years experience in led display producing,equipments are updated regularly.What’s

    more,unique standardized and module production ensure our products continuous quality.



    Competitive Price

    With large scale production capacity and professional production technology,our company have built

    effective modular production.We always stick to promote the technical innovation and reduce cost to

    benefit customers.



    Fast Delivery

    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

    inventory will be used to maintain your uninterrupted supply of the products.



    Our team will be forever here to offer you full supports
