P2 Indoor Ultra Clear LED Digital Screen Advertising 64*64 Point Module Resolution

P2 Indoor Ultra Clear LED Digital Screen Advertising 64*64 Point Module Resolution

    • P2 Indoor Ultra Clear LED Digital Screen Advertising 64*64 Point Module Resolution
    • P2 Indoor Ultra Clear LED Digital Screen Advertising 64*64 Point Module Resolution
    • P2 Indoor Ultra Clear LED Digital Screen Advertising 64*64 Point Module Resolution
  • P2 Indoor Ultra Clear LED Digital Screen Advertising 64*64 Point Module Resolution

    Product Details:

    Place of Origin: CHINA
    Brand Name: SCXK
    Certification: CB/CE/ROHS/FCC/ISO/UL
    Model Number: CB/CE/ROHS/FCC/ISO/UL

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 5000 sqm month
    Contact Now
    Detailed Product Description
    Lamp Size: 2121 Resolution/mm: 2
    Pixel Configuration: RGB 3 In 1 Pixel Density/pixels/m²: 250000/m²
    Module Size/mm: 256x128 View Distance: ≥1m
    Scanning Mode: 1/13 Refresh Frequency: >3000Hz

    P2 indoor led screen rental for events concerts , led digital display screens



    Product description

    1. Classical and stable strucrure and performance.
    2. Two patent protected strong locks design, realizing combination of reliablity and security.
    3. Die-casting aluminum body, light weight for easy transportation and high accuracy installation.
    4. Perfectly be compatible with any existing controller and without screen shaking/quick flashing/mosaic problems.
    5. Supporting installation of hanging/ground mounting, for stage/TV show/studio, and other event applications.
    6. Tool free assembly and disassembly.



    ♦ Application

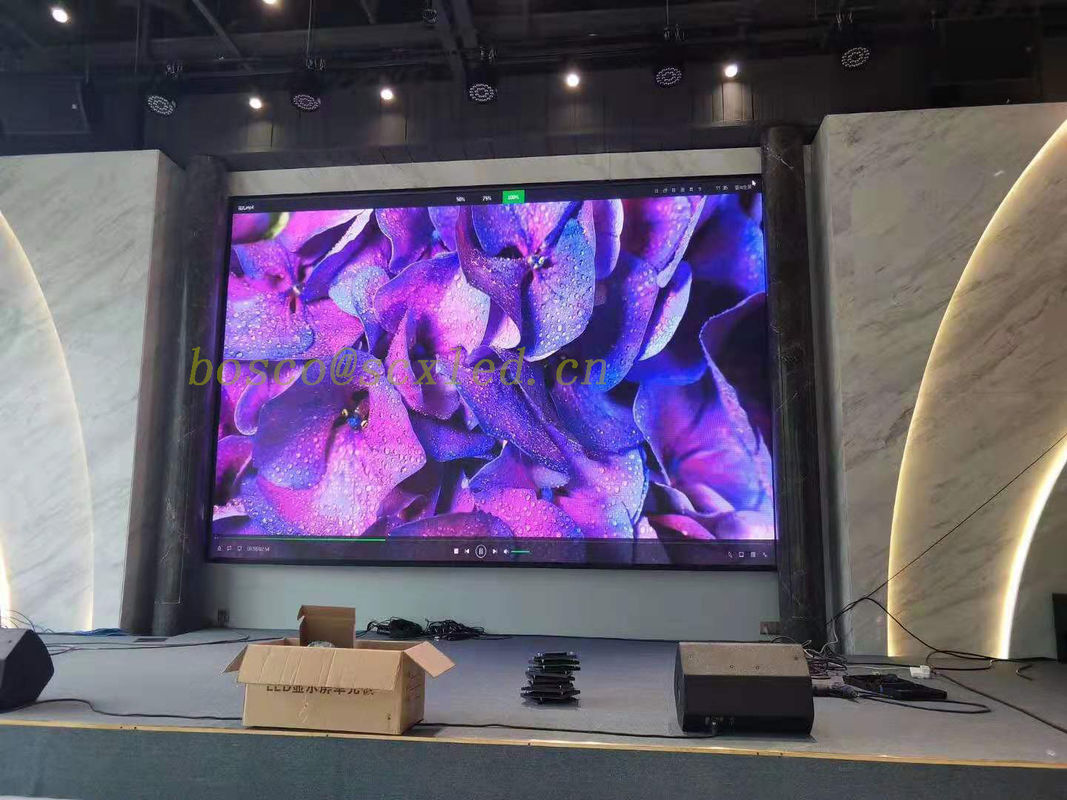

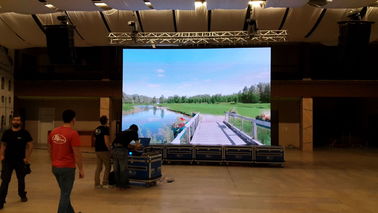

    The Indoor LED Video Wall is highly usable at indoor places like malls, stages, chain stores, hotels, public buildings, bars, restaurants, etc. Its thin size and ultra-lightweight module makes it easy to install at any area without covering much space.



    ♦ Product specification

    indoor SMD P2
    Lamp size 2121
    Resolution/mm 2
    Pixel configuration RGB 3 in 1
    Pixel density/pixels/m² 250000/m²
    Module resolution 128x64
    Module size/mm 256x128
    View distance ≥1m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >2500cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 14 bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
    Driving mode Constant driving current
    Scanning mode 1/13
    Frame rate 60Hz
    Refresh frequency >3000Hz
    Control mode Computer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡ <1100W
    Average power:/㎡ <280W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%



    Digital Screens Rental LED Display P2 Indoor 64*64 Dots Module Resolution



    About us:

    Established in 2005, clients cover more than 50 cuntries, Mainly USA, Europe, dubai, north and mid america, south america, asia. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service. Even face with harshest environment,we can carefully choose different suitable materials and make the best offer.



    Production process:

    1) Incoming Inspection→2) SMD→3) Plug-in

    →4) Wave Soldering→5) After Welding→6) Testing

    →7) Semi Finished Aging→8) Module Assembly

    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



    ♦ Packaging and shipping

    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.



    Our team will be forever here to offer you full supports !!!
