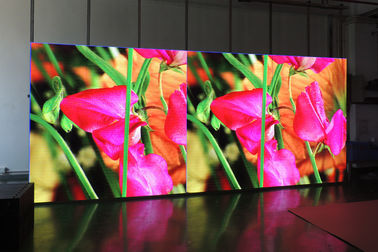

110 - 220VAC P4.81 Outdoor Stage RGB LED Display With 3840Hz Refresh Rate

110 - 220VAC P4.81 Outdoor Stage RGB LED Display With 3840Hz Refresh Rate

  • 110 - 220VAC P4.81 Outdoor Stage RGB LED Display With 3840Hz Refresh Rate
  • 110 - 220VAC P4.81 Outdoor Stage RGB LED Display With 3840Hz Refresh Rate
  • 110 - 220VAC P4.81 Outdoor Stage RGB LED Display With 3840Hz Refresh Rate
  • 110 - 220VAC P4.81 Outdoor Stage RGB LED Display With 3840Hz Refresh Rate
110 - 220VAC P4.81 Outdoor Stage RGB LED Display With 3840Hz Refresh Rate
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: SMD P4.81
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm month
Contact Now
Detailed Product Description
Lamp Size: 2121 Resolution/mm: 4.81
Pixel Configuration: RGB 3 In 1 Pixel Density/pixels/m²: 64510/m²
Module Resolution: 64x64 Module Size/mm: 250x250
View Distance: ≥2m Scanning Mode: 1/8
Refresh Frequency: >4200Hz
High Light:

led display rgb

,

full color outdoor led display

110-220 VAC P4.81 outdoor stage LED screen indoor advertising panel wide angle, 3840hz refresh rate


Product features
1. Excellent effect: Using dynamic scanning technology, the picture is stable, no noise, the image effect is clear, the animation effect is vivid and diverse, and the video effect is smooth and realistic;
2, rich in content: can display text, graphics, images, animation, video information;
3, flexible mode: the user can arbitrarily arrange the display mode;
4, the cabinet customization: the cabinet supports customized size;
5, excellent viewing angle: both horizontal and vertical have a large viewing angle, which is suitable for environments with wide horizontal distribution and large height difference;
6. High reliability: using distributed scanning technology and modular design technology, reliability and stability are higher;
7, quality assurance: the use of imported luminescent materials, high-quality IC chips, noise-free high-power power supply; tensile and shockproof, 10 years of long life;
8, easy maintenance: modular design, easy installation and maintenance.

Product specification

SMD P4.81
Lamp size2121
Resolution/mm4.81
Pixel configurationRGB 3 in 1
Pixel density/pixels/m²64510/m²
Module resolution64x64
Module size/mm250x250
View distance≥2m
Single point brightness adjustCan be added
Single point color adjustCan be added
White balance brightness>8000cd/㎡
Color temperature6500K-9500K
Horizontal view angle120(degrees)
Vertical view angle60(degrees)
Signal Process bit10 or 14 bit
Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distancesInternet cable:100m, multimembrane:500m, monofilm:5km
Driving modeConstant driving current
Scanning mode1/8
Frame rate60Hz
Refresh frequency>4200Hz
Control modeComputer synchronous
Brightness adjusted rangeManual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point<1/10000
Working hours≥72hours
Mean Time Between Failure>5000hours
Life time100000hours
Life-all-white(brightness halving)50000hours
Environment temperature rangeOperating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡<1000W
Average power:/㎡<280W
Self-check technologyLED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoringRemote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environmentWindowsNT,Windows1999,WindowsXP
Luminous point width between centresDeviation<3%
Brightness uniformity<10%
Color uniformity(chromaticity coordinate)±0.003
Power supply requestAC85-264V(50Hz-60Hz)
Contrast(1000:1)
System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)working:10-95%
Humidity(storing)storing:10-95%


Product Overviews

ItemsIndoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Materialsteel,aluminum ,die casting aluminum
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing:Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping:5 to 7 working days upon receiving deposit payment
After-Sales-Service:Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)

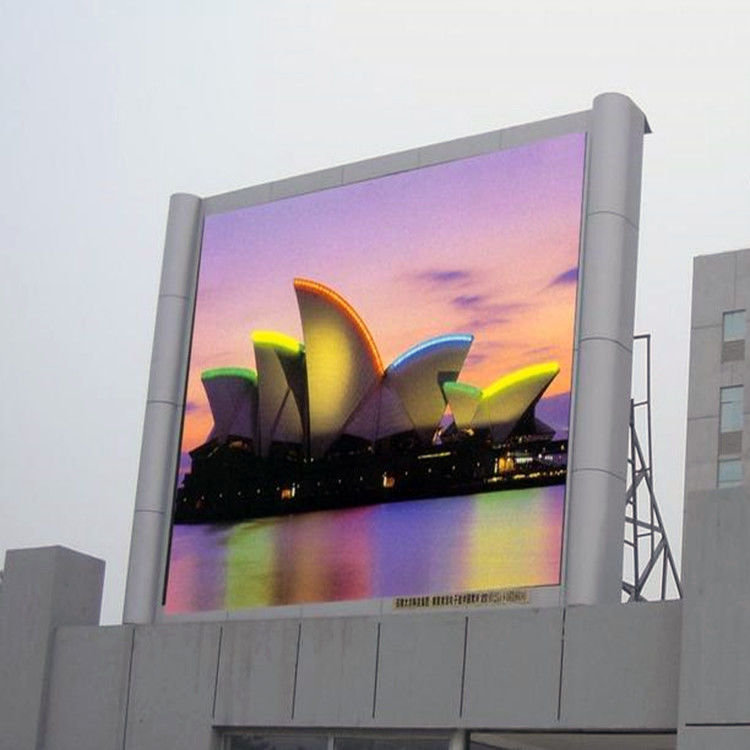

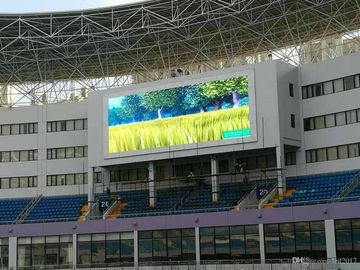

Using RangeShopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.


Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Features
1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
3. High refresh rate and high gray scale --- to ensure color consistency and better images
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
