Advertising Video Outdoor RGB LED Display 192x192mm Module Size Long Lifetime

Advertising Video Outdoor RGB LED Display 192x192mm Module Size Long Lifetime

  • Advertising Video Outdoor RGB LED Display 192x192mm Module Size Long Lifetime
  • Advertising Video Outdoor RGB LED Display 192x192mm Module Size Long Lifetime
  • Advertising Video Outdoor RGB LED Display 192x192mm Module Size Long Lifetime
Advertising Video Outdoor RGB LED Display 192x192mm Module Size Long Lifetime
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: P6
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm
Contact Now
Detailed Product Description
Resolution/mm: 6 Pixel Configuration: 1R1G1B
Pixel Density/pixels/m²: 27778/m² Module Size/mm: 192x192
View Distance: 5-400m Scanning Mode: (1/4)
Refresh Frequency: >3500Hz Warranty: 3 Years
High Light:

rgb led screen

,

full color outdoor led display

Advertising video outdoor fixed LED display billboard waterproof



Remote network intelligent control system:

control of several city remote synchronization or time display, change at any time you want to broadcast content. Only a mouseclick operation can be easily replaced the picture information, so as to realize the display advertising networkcluster. Multi function card to achieve timing or manualswitch screen at any time, to realize unattended function.



Scope of application:



widely used in the Outdoor environment , such as The building wall , Stadium, Supermarket,Outdoor advertising etc., to display text , graphic, picture and video etc.



♦ Product specification

outdoor SMD P6
Resolution/mm 6
Pixel configuration 1R1G1B
Pixel density/pixels/m² 27778/m²
Module resolution 32*32
Module size/mm 192x192
View distance 5-400m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >3500Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <900W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Product overviews
Items Indoor Led display:
P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Dance floor led display
DJ led screen
Transparent led display
Material steel,aluminum ,die casting aluminum
Certificates CE, FCC,RoHS, CCC, UL
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 5 to 7 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Description:

•With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
•High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
•The advertising contents can be changed at any time, for different customers and various advertisements.
•you can know the display operation anytime, anywhere.
• it can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.



♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.

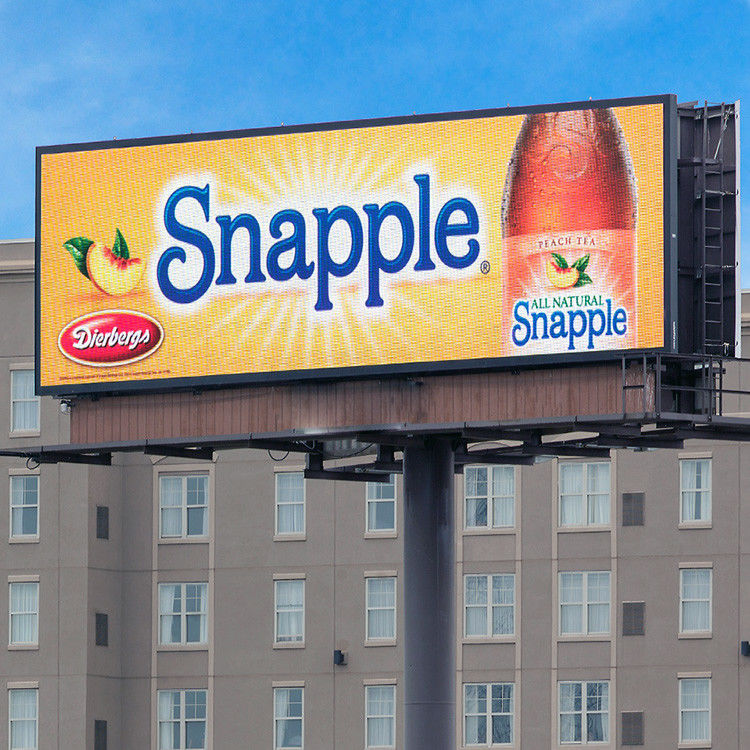

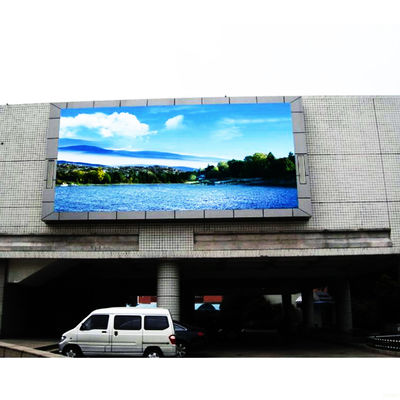

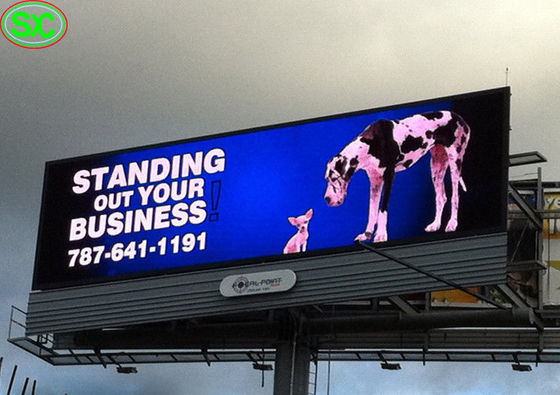

♦ Project case

Advertising Video Outdoor Fixed Led Display Billboard Great Waterproof



Our team will be forever here to offer you full supports



Tag:

led display rgb,

full color outdoor led display
