Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P3.91 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sqm month |
| Module Size(W * H): | 250mm*250mm | Standard: | CB/CE/ROHS/FCC/ISO2001 |
|---|---|---|---|
| Tube Chip Color: | Full Color | Pixel Pitch: | 3.91mm |
| Module Qty: | 1pcs | Resolution(W*H): | 64dots*64dots |
| High Light: | led video screen rental,rental led display screen |
||

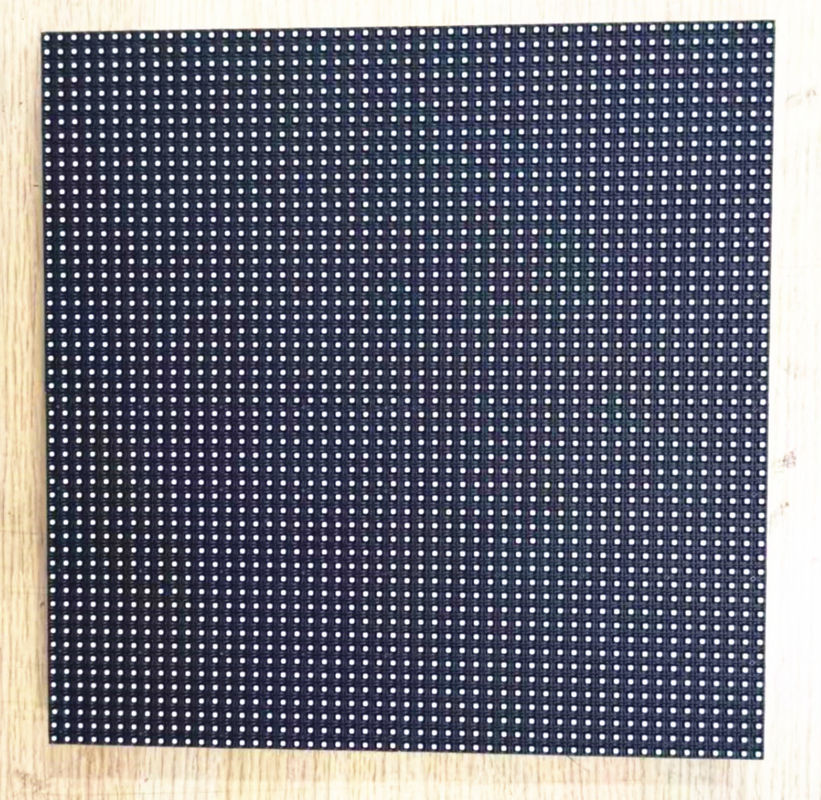

Full color 3.91 250*250mm outdoor smd led display Screen Module 1/16 scanning
Established in 2005,Shenzhen Shichuangxike Electronics Co.,Ltd has been focusing on the international market to realize the global strategic layout. Relying on the strong technical strength, the advanced production management system, the complete operating programs and our international business team, we successfully set up a base gathering the abilities of R & D, production and sales in Shenzhen.
As the most professional provider of outdoor and indoor led displays, SCXK Electronics has the widest business coverage, the most complete product lines, the greatest comprehensive strength in the industry.
With the perfect global marketing network, our products are sold to The Middle East, South America, North America, Europe, Southeast Asia, Australia, Africa and other regions.
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The wire or wireless controll system are available .( 3g and wifi controll will be welcome) the steel consturction is very stable for led display,and you can purchase from your local market .
The detailed parameter as follows
| 1, Item Name | P3.91 SMD indoor LED Display Module size 250*250mm 1/16 scanning |
| 2, pixel tube: | pixel pitch:3.91mm; primary colors: pure red+pure green+pure blue , color composing: 1R1G1B Density:3906dots/sq m; smd2121 |
| 3 , unit box | module size:250mm×250mm; Module resolution:64X64 cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm; |
| 4, whole screen: | the optimum viewing angel :horizontal 110°, vertical 50° viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET6024 |
| 5, operating voltage | AC220V±10% or 110V±10% ,average consumption:500 W/sq m max consumption:≤650 W/ sq m |
| 6, main parameter | 1) driving mode: 1/16 scanning 2) refreshing rate:≥400Hz/s 3) frame frequency:≥60Hz/s 4) gray scale/color:≥16.7Mcolors(Synchronized) 5) manage gray:≥72bit 6) brightness:≥1500cd/sq m 7) color temperature condition:3500K~9500K,be adjustable 8) adjusting style of brightness: hand movement/auto 9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable. 10) average trouble-free time:≥5000hours 11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm 12) switch power loading:5V/40A 13) display mode of computer:1024×768 |
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6. Small order accepted.
Methods for Quality Assurance
a. Aging
1. 100% fully test
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
Order Procedure
Negotiation---First solution recommended---Finalize all the details---30%deposit in advance or full deposit---
Start production---Pay the balance---shipment by DHL--provide tracking number---feedback.
A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch
B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch
C.customized packing is acceptable
D. 20"FT container loading of 100sq.m
1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.
Contact Person: BOSCO
Tel: +8615177780539
