High Resolution P6 Car LED Sign Display RGB 3 In 1 Pixel Configuration

High Resolution P6 Car LED Sign Display RGB 3 In 1 Pixel Configuration

High Resolution P6 Car LED Sign Display RGB 3 In 1 Pixel Configuration

Product Details:

Place of Origin: CHINA
Brand Name: SCXK
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: SMD P6

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm month
Contact Now
Detailed Product Description
Lamp Size: 3535 Resolution/mm: 6
Pixel Configuration: RGB 3 In 1 Pixel Density/pixels/m²: 27778/m²
Module Size/mm: 192*192MM View Distance: ≥5m
Refresh Frequency: >4200Hz Warranty: 5 Years
Control Systerm: Asynchronization Function: Car Video Display
Product Name: HD Video IP65 Waterproof Car Roof Led Sign Display , Led Sign Double Sided

High Resolution P6 Car LED Sign Display RGB 3 In 1 Pixel Configuration

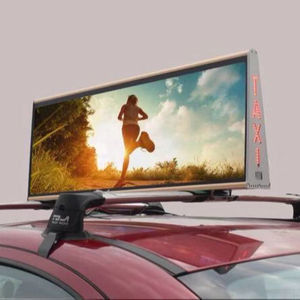

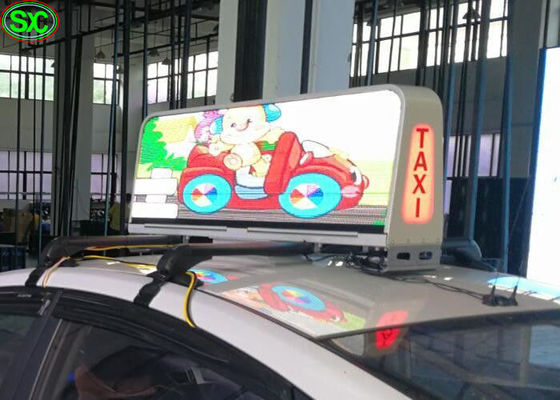

P6 Taxi LED Display



1. High resolution. Compared to the traditional taxi roof screen, screen resolution of ours reaches to 192px64p.
2. It can play a variety of media resources such as text, photos, animation, video and so on.
3. The controlling and editing has never been as easy as now. Through 3G or 4G network, no matter where you are,as long as your device can access



High Gray Scale - Better Picture

We make it by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray scale ensures the picture quality remains seamless.



Get Every Detail in Picture

We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.



♦ Product specification


Lamp size 3535
Resolution/mm 6
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 27778/m²
Module resolution 32x32
Module size/mm 192*192MM
View distance ≥5m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode constant driving static
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <900W
Average power:/㎡ <320W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



HD Video IP65 waterproof car roof led sign display , led sign double sided



Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



Our team will be forever here to offer you full supports !!!
