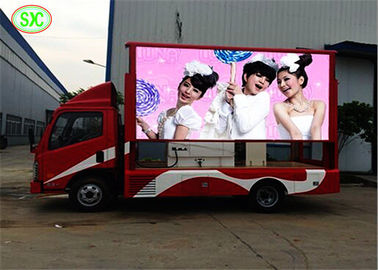

P5 P6 P8 Mobile Digital Billboard Advertising 960mm*960mm Cabinet Size ROHS Compliant

P5 P6 P8 Mobile Digital Billboard Advertising 960mm*960mm Cabinet Size ROHS Compliant

    • P5 P6 P8 Mobile Digital Billboard Advertising 960mm*960mm Cabinet Size ROHS Compliant
    • P5 P6 P8 Mobile Digital Billboard Advertising 960mm*960mm Cabinet Size ROHS Compliant
    • P5 P6 P8 Mobile Digital Billboard Advertising 960mm*960mm Cabinet Size ROHS Compliant
  • P5 P6 P8 Mobile Digital Billboard Advertising 960mm*960mm Cabinet Size ROHS Compliant

    Product Details:

    Place of Origin: CHINA
    Brand Name: SCXK
    Certification: CB/CE/ROHS/FCC/SGS/ul
    Model Number: SMD P5

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: Packed in wooden case and flight case for outer packing
    Delivery Time: 7-10 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 5000 sqm month
    Contact Now
    Detailed Product Description
    Product Name: Mobile Truck P5 Led Display Module Size: 160mm*160mm
    Module Resolution: 32dots*32dots Cabinet Size: 960mm*960mm
    Cabinet Resolution: 192*192 Display Color: Full Color
    Led Chip: Epistar

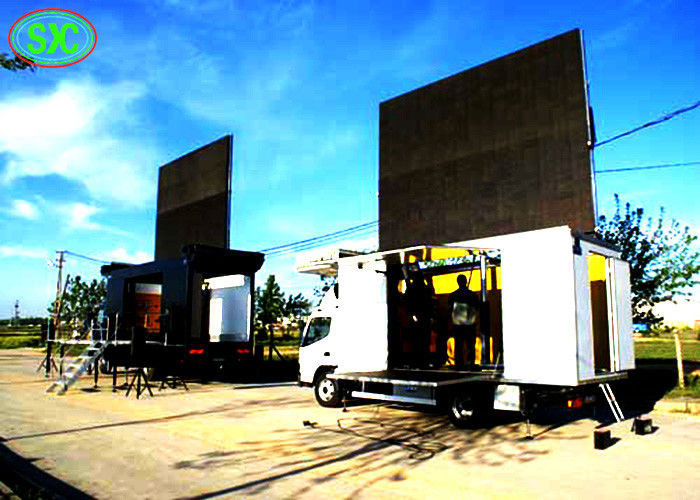

    Mobile Led Roadshow Truck Full Color Outdoor Display Screen P5 P6 P8 mobile led display




    Advanced Control Technology



    a. Calibration: Pixel-by-pixel brightness and color calibration technique to keep uniform brightness and natural colors of LED display.

    b. Monitoring: Proprietary control system can monitor the temperature, brightness, status information of LED display in real time.

    c. Remote network control: Controlling and changing all display information, controlling the displays of several cities in one place to change the contents at any time.

    d. Adjustable brightness: Adjusting screen brightness automatically according to environmental lighting based on sensitive control system, adjusting it manually or by programmable menu.

    e. Large screen control: Controlling super large size display stably without any black screen, frame vibration or reducing.

    f. High refresh rate, high gray scale and high contrast ratio: More realistic pictures optimize commercial advertisement value



    what is difference between SMD and DIP led display?



    Surface Mounted Device LED is short for SMD,through the SMT technology encapsulating diode, soldering this lamp on the PCB board surface. Widely used for indoor projects.

    Dual in-line Package is short for DIP, after soldering the LED lamp's feet to stable it on the PCB., so it names of DIP LED. Mainly used for outdoor projects.

    The comparison of SMD and DIP. SMD with RGB 3 colors in 1 LED cup technology, with better colors uniformity, and wider viewing angle, usually, SMD can be done the small pitch pixels,
    so for some high resolution LED screen, SMD is the best choice.

    DIP technology with LED foot in PCB board, then the heat dissipation is better than SMD, and higher brightness, even under the sunshine, DIP LED screen can also show the contents well.
    That is the reason why people like DIP for outdoor used.

    For the energy saving influence, SMD is a new technology, it is high luminous efficiency and good heat dissipation,SMD is 30% energy saving more than DIP.
    Previously,SMD is only used for indoor LED screen, but with technological breakthroughs in recent years, SMD brightness has been greatly improved,
    waterproof processing also be completely resolved, therefore, SMD is more and more applied to the outdoor LED display in market.

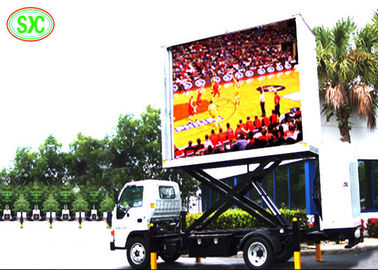

    Mobile Led Roadshow Truck Full Color Outdoor Display Screen P5 P6 P8 mobile led display


    Specification
    Parameter
    Pixel Module size 160mm*160MM
    Pixel pitch 5 mm
    pixels Density 20000dots/sqm
    Pixel configuration 1R1G1B
    Brightness of single LED R: 800mcd, G: 2400mcd, B: 600mcd
    Pixel resolution 32*32
    Max Power consumption 40 w
    Weight 0.89 kg
    Working voltage DC5V
    Cabinet Dimension 1024*768mm
    Power supply 5V/40A
    thermal discharge fan
    Total Weight 38 kgs
    Best viewing distance 8 ~ 50m
    Best viewing angle 120°(H) /90°(V)
    Ambient Temperature storage: - 30 ~ + 85
    working: - 20 ~ + 65
    Working humidity 90 ~ 95%
    Power Working voltage AC220V / AC110V
    Average Power consumption 450 ~ 610 w/sqm
    Max. Power consumption ≤ 950 w/sqm
    Current ≤20mA(single LED)
    Control system CPU Pentium 4 or above
    Operating system WIN 98/2000/NT/XP/me
    control method Synchronization, asynchronism are available
    Main technical parameter Driving device Constant Current Driver IC
    Drive type 1/8 scan Driving
    Refresh frequency ≥120Hz/s
    Grey scale/colors 256 levels of each color(R/G/B)/ 16.7M colors
    Brightness of white balance ≥7,000cd/sqm
    Brightness adjustment 255 levels of each color(R/G/B) by software
    Video Signal PAL/NTSC
    Control system DVI graphic card + full color controller card
    MTBF ≥10,000 hours
    Life span About 100,000 hours
    Flatness Tolerance of interpixel≤0.3mm
    Tolerance of modules clearance ≤1.5mm
    Display Mode 800*600; 1024*768
    Communication distance ≥100 meters (UTP-5 CABLE)
    Software LED media player



    The epistar Led chip. with SMD and DIP Technology .



    we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available






    The wire or wireless controll system are available .( 3g and wifi controll will be welcome)






    Factory Equipment

    Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
    Automatic Glue- pouring Machine, Solder Paste Printing Machine,
    Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
    Withstand Voltage Tester, Ground Resistance Tester,
    Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
    Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.



    Competitive Advantage:

    1. 2 years’ warranty with free repair service

    2. 24/7 Hours online Remote Support

    3. Solution and PCB design

    4. Free factory training

    5. On site installation instruction and regular inspection

    6, Small order accepted.



    Package

    Mobile Led Roadshow Truck Full Color Outdoor Display Screen P5 P6 P8 mobile led display



    Payment and delivery


    1) T/T, 30% deposit, 70% before shippment.
    2) 100% Western Union in advance.



    ♦ Why choose us:

    Continues Quality

    With more than 10 years experience in led display producing,equipments are updated regularly.What’s

    more,unique standardized and module production ensure our products continuous quality.



    Competitive Price

    With large scale production capacity and professional production technology,our company have built

    effective modular production.We always stick to promote the technical innovation and reduce cost to

    benefit customers.



    Fast Delivery

    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

    inventory will be used to maintain your uninterrupted supply of the products.



    Perfect Service

    Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

    you.

    After-sales:We will track the products usage and then constantly perfect our products.



    ♦ Frequently Asked Questions



    What kind of payment terms you can accept ?

    We can accept T/T and Western Union.



    What about your Led Display quality ?

    Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

    our products continuity.



    What is your delivery time ?

    Within 7-35 days according to your area and quantity.



    Is your LED display competitive ?

    Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

    our led display’s competitiveness.
