P2.5 Flexible curtain led display screen led sphere display stage led curtain

P2.5 Flexible curtain led display screen led sphere display stage led curtain

    • P2.5 Flexible curtain led display screen led sphere display stage led curtain
    • P2.5 Flexible curtain led display screen led sphere display stage led curtain
  • P2.5 Flexible curtain led display screen led sphere display stage led curtain

    Product Details:

    Place of Origin: China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: SMD P2.5

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Item Name: P2.5 Flexible Curtain Led Display Screen Led Sphere Display Stage Led Curtain Max Power Consumption: 750W/sqm
    Average Power Consumption: 250W/sqm Maintenance: Front Service
    Module Size: 240x120mm Module Display Brightness Uniformity: <3%

    P2.5 Flexible curtain led display screen led sphere display stage led curtain


    ♦ Product description

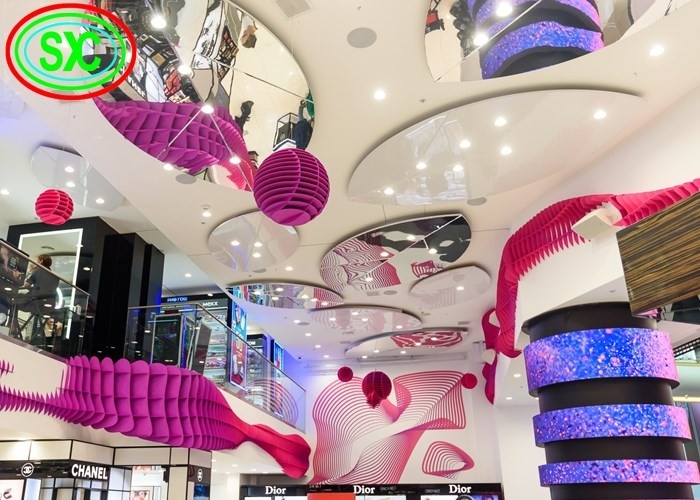

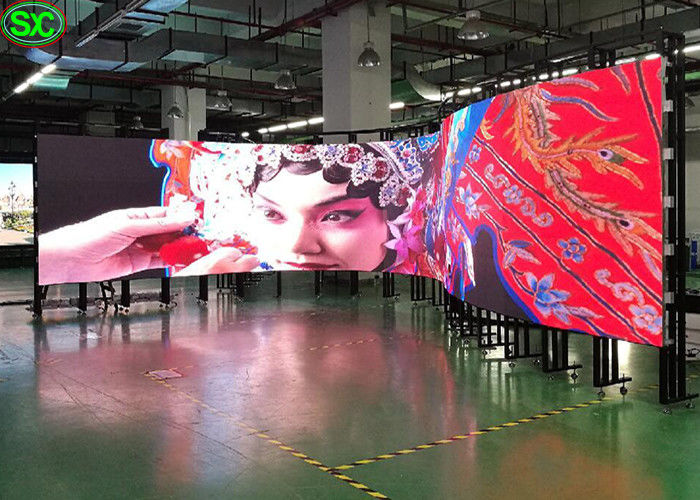

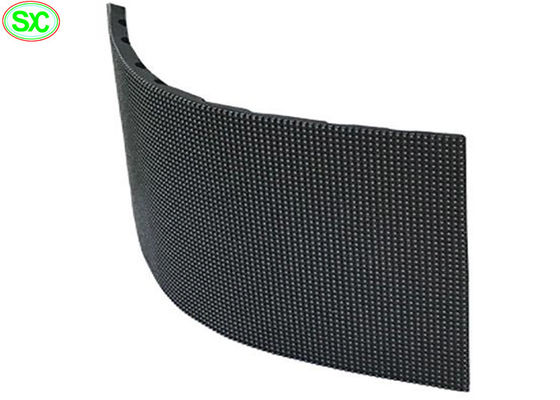

    P2.5 Indoor Soft Flexible LED Display Module is designed for the creative LED Screen applications. It is much flexible and can be fit any curved surface with magnetics on the module back side. such as the club, stage, studio, super market, shopping mall, stadium, concert, amusement park, sight-seeing area, real estate, airport etc.



    Ultra-flexible

    It's available for customized design, such like rolling, bending and swing. based on customer's demands.


    Ultra-thin
    Adopting special material and advanced technology, supre thin and light, weight of each module is just 85g.



    Non-cabinet
    Reducing weight of LED display and cost, can be any shape design as customer required.


    Easy Assemble
    Installed by strong magnets directly.


    ♦ Product specification

    indoor  SMD P2.5
    Lamp size 2121
    Resolution/mm 2.5
    Pixel configuration RGB  3 in 1
    Pixel density/pixels/m² 160000/m²
    Module resolution 64x64
    Module size/mm 240x120
    View distance ≥0.5m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >2500cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 14 bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
    Driving mode Constant driving current
    Scanning mode 1/4
    Frame rate 60Hz
    Refresh frequency >4200Hz
    Control mode Computer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted
    255 steps. No grey loss

    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡ <1000W
    Average power:/㎡ <280W
    Self-check technology

    LED spot self-check, communications check, power check,
    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,
    send out warning signs to the operators.(need customization)

    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%



    P2.5 Flexible curtain led display screen led sphere display stage led curtain



    ♦ Production process:
    1) Incoming Inspection→2) SMD→3) Plug-in
    →4) Wave Soldering→5) After Welding→6) Testing
    →7) Semi Finished Aging→8) Module Assembly
    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

    ♦ Our advantages
    Professional Manufacturer of led display
    1. OEM service,No MOQ
    2. Easy installation,regular items in Stocks
    3. Offering free design drawing as requested.
    4. Remote controlling and adjusting are available.
    5. Wooden case or flight case,you are the boss.
    6. Your reply will be replied within 24 hours.
    7. Fast delivery: Usually 6-8 working days
    8. Excellent R&D team,factory Price and assure you quality goods.

    ♦ Packaging and shipping
    Wooden case or flight case package are available.
    Shipping by sea,air or DHL,multiple shipping ways for your choice.

    ♦ Methods for Quality Assurance
    a. Aging
    1) 100% fully test
    2) Condition: 72 hours with 256 grey level
    b. Vibration Testing
    Condition: 3-5 mins up and down in 5mm range

    ♦ Why choose us:
    Continues Quality
    With more than 12 years experience in led display producing,equipments are updated regularly.What’s
    more,unique standardized and module production ensure our products continuous quality.

    Competitive Price
    With large scale production capacity and professional production technology,our company have built
    effective modular production.We always stick to promote the technical innovation and reduce cost to
    benefit customers.

    Fast Delivery
    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
    inventory will be used to maintain your uninterrupted supply of the products.

    Perfect Service
    Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
    you.
    After-sales:We will track the products usage and then constantly perfect our products.
