Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE,ROHS,FCC,SASO，CB |
| Model Number: | SMD P3.91 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sqm month |
| Pixel Configuration: | SMD2020 | Pixel Pitch (mm): | 3.91 |
|---|---|---|---|
| Pixel Density (pixelsm): | 62500 | Refresh Rate (hz): | 1920 |
| Driving Type: | 1/16 | Brightness:: | ≥1200cd/㎡ |
| Color Temperature Condition:: | 3500K～9500K,(can Be Adjustable) | Operating Life:: | ≥100,000 Hours |
| High Light: | led video screen rental,rental led display screen |
||
High-end easy-to-install waterproof curved LED HD indoor and outdoor display stage LED screen P3.91 / P4.81, 3840hz refresh rate
Advantage
Best cost performance Best price for same quality , Best quality for same price.
LED: from top brand kinglight, with high brigtness and color deth.
Driver IC: MBI IC, good refresh rate
Power supply: MeanWell or CY power supply. safefy electronic
Unique design: light weight and easy to install. 100 sqm can be set up in one hours
PCB Board:Conformal coating, 4 layer design.
Package: Anti-vibration fly case package, cover with protection film
Curved arc shape avilible: Can be curved ±10 ° , creat a amazing stage.
Easy Maintance: No need to take off power supply when need maintance, save your time
Specifications
| Parameter | Value |
| Pixel Configuration | SMD2020 |
| Pixel pitch (mm) | 3.91 |
| Pixel matrix per panel | 64*64 |
| Pixel density (pixelsm) | 62500 |
| Cabinet Dimensions(L*W) mm | 500*500mm |
| Module Dimensions(L*W) mm | 250*250 |
| Panel material | Aluminum profile&iron&die-casting aluminum |
| Cabinet weight (kg/panel) | 6.5 |
| Colour grayscale (bit) | 12-16bit |
| Gray scale per colour (level) | 16384 |
| Refresh rate (hz) | 1920 |
| Driving type | 1/16 |
| Signal transmission distance (m) | cats cable:<100m single mode fiber:<10km |
| Brightness (nit) | 1200 |
| Optimal horizontal viewing angle (degree) | 160 |
| Optimal vertical viewing angle (degree | 160 |
| Ac input voltage (v) | Ac100-240v |
| Ac input frequency (hz) | 50/60 |
| Ac input power maximum value (wm) | 625 |
| Ac input power typical value (wm) | 150 |
| Storage temperature (℃) | -40-60 |
| Work temperature (℃) | 0-45 |
| IP rating (front/rear) | IP40/IP21 |
| Storage humidity (rh) | 10%-90% non -condensing |

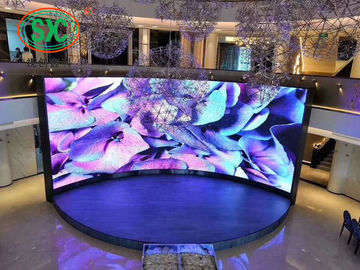

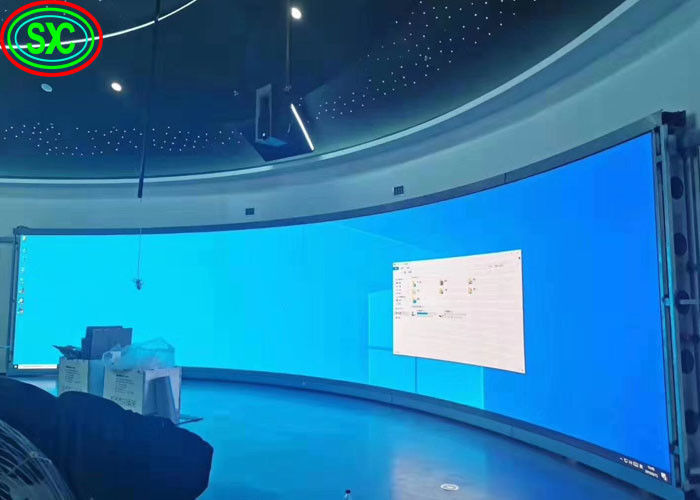

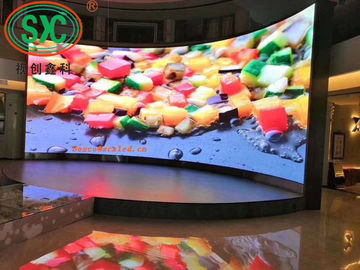

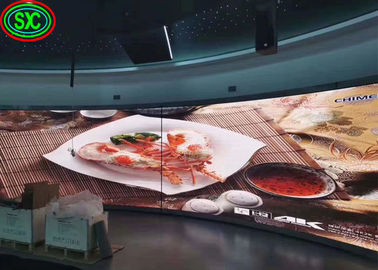

Detailed Picture
Our Company
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
Our team will be forever here to offer you full supports
