Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CB,CE,ROHS,FCC,SASO |
Model Number: | SMD P4.81 |
Minimum Order Quantity: | 16 sqm |
---|---|
Price: | negotiation |
Packaging Details: | wooden case,flight case. |
Delivery Time: | 7-10 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 sqm month |
Module Size:: | 250mm X 250mm | Module Resolution:: | 64mm X 64mm |
---|---|---|---|
Cabinet Size:: | 500mm X 500mm | Cabinet Resolution:: | 104 X 104 |
Driving Method:: | 1/13 | LED Shape & Size: | 2mm SMD 2121 |
Encapsulation Type: | 1R1G1B | Led Type: | SMD 3 IN 1 |
Brightness: | 1500cd | Led Chip: | Kinglight |
Warranty: | 3 Years | ||
High Light: | stage background led screen,stage led display |
Stage Background Super Thin P4.81 Church LED Video Wall Panel Display Events Wedding Planner
Product Features
1. Super Light and Thin 8KG/panel with a depth of 70mm which is half of the depth of traditional LED screen,saving space and transportation cost.
2. High Refresh Rate ;Refresh Rate≥2000, offering impressive visual effect.
3. Noiseless Free of fans and air conditions, excluding noise and reducing power consumption.
4. Fine and Smooth Picture Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.
5. Seamless Splicing High conformity of picture without gap and information missing, realizing a seamless splicing display.
6. Fast Installation and Dismantlement.
Remark:Stage Background Super Thin P4.81 Church LED Video Wall Panel Display Screen widely use for tage background, advertising activity, press conference, news conference etc.
Company Information
Shenzhen ShiChuangXinKe Electronics Co.,Ltd
with its head office in Shenzhen, is a professional manufacturer specialized in the design, production and export of LED products. Our main products are: Small Pixel Led Screen, Glass Led Screen, Dancing Floor Led Screen and General LED Screen etc which are widely used in public places as well as transportation, security, household appliance and advertisement fields.
We have a high-quality and professional research and development team. All the products are in strict accordance with the standard of ISO9001:2000 Quality Management System.
"Good quality, reasonable price, excellent prestige and perfect service" is our philosophy. We hope to establish business relationships with you and become your loyal partner. Let's create a bright future together.
Product Description
Item | Specification | ||||||||
LED Parameters |
Luminous Intensity | R:620-630, G:520-535, B:465-475 | |||||||
Wavelength | R:400-500mcd, G:1800-2200mcd, B:350-450mcd | ||||||||
Test Condition | R:25℃,20mA, G:25℃,20mA, B:25℃,20mA | ||||||||
LED Module | Led Type | SMD 3 IN 1 | |||||||
Pixel Pitch | 4.81 mm | ||||||||
LED Shape & Size | 2mm SMD 2121 | ||||||||
Encapsulation Type | 1R1G1B | ||||||||
Module Dimension | 250mmx250mm | ||||||||
Module Resolution | 64 × 64 | ||||||||
Module Weight | 0.20 KG | ||||||||
Pixel Density | 43222 | ||||||||
Driving Mode | 1/13 | ||||||||
Module Power Consumption | 20 W | ||||||||
LED Cabinet | Cabinet Size | 500mm(W)x 500mm(H) | |||||||
Cabinet Thickness | 70 mm | ||||||||
Cabinet Resolution | 104x104 | ||||||||
Cabinet Material | Die Casting Aluminum Cabinet | ||||||||
Screen | Use | Rent | |||||||
Cabinet Weight | 6.5 KG | ||||||||
Optical parameters | Brightness | ≥6000 cd | |||||||
Contrast Ratio | ≥3000:1 | ||||||||
Single-point Brightness Correction | Available | ||||||||
Single-point Color Correction | Available | ||||||||
Surface Evenness | GAP< 1mm | ||||||||
Color Temperature Condition | 3500K~9500K,(can be adjustable) | ||||||||
Viewing angle | 140°(Horizontal),140°(Vertical) | ||||||||
Gray Scale | 16 bit | ||||||||
Minimum Viewing Distance | 4.81 m | ||||||||
Brightness Adjustment | 0-100% 8 levels | ||||||||
Power Supply |
Operation Power | AC90-260V 50-60HZ | |||||||
Max Power Consumption | 700 W /m² | ||||||||
Average Power Consumption | 350 W /m² | ||||||||
Control System |
Control Mode | Synchronous Control by Linsn system | |||||||
Frame Update Frequency | ≥600Hz | ||||||||
Screen Refresh Frequency | ≥3840Hz | ||||||||
Gamma Correction | (-0.5—5.0) | ||||||||
Input Signal Support | Composite,S-Video,Component, VGA,DVI,HDMI,SDI,HD_SDI |
||||||||
Control Distance | UTP CAT5E:100m;Multi-mode Fiber:500m; Single-mode Fiber:10km |
||||||||
Video Signal | MPG /MPEG/MPV/MPA/ AVI/SWF/RM/RA/RMJ/ASF |
||||||||
Support VGA Mode | 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, |
||||||||
Brightness Correction | Dot by Dot,module by module, cabinet by cabinet |
||||||||
Operating Temp. | - 10° —+55° Celcius degree | ||||||||
Operating Humidity | 10 - 90 % RH | ||||||||
Operating Life | 100,000 Hours | ||||||||
Protection Level | IP65 | ||||||||
MTBF | 5000 Hours | ||||||||
Out of Control Pixel Rate | 0.01% |

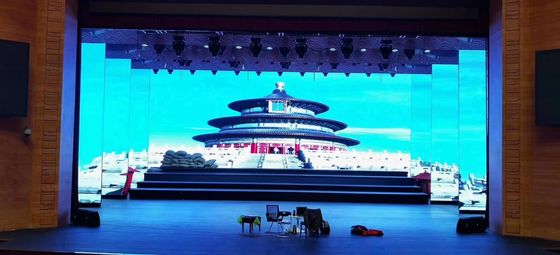

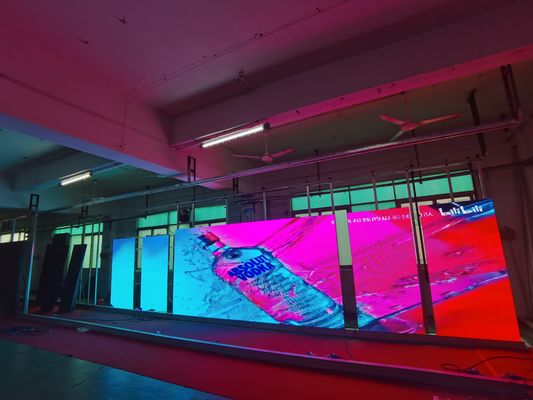

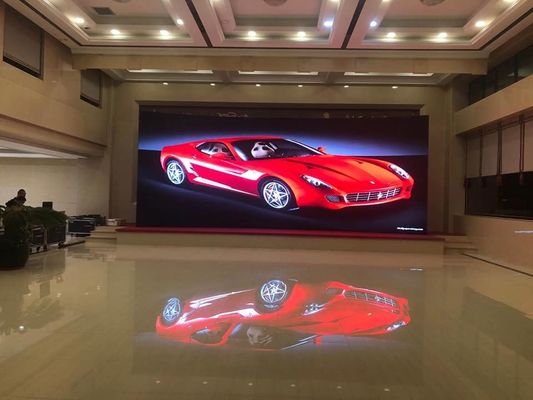

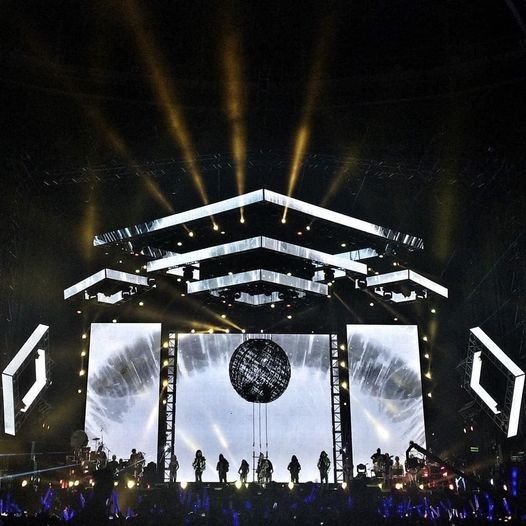

Our case
Our service
We have an excellent customer service system with a well-trained, strong and skilled service team to provide customers with a comprehensive pre-sales service, product services and after-sales service.
Our customer service department has more than a dozen highly skilled and experienced technical support engineers, who are all in charge of the technical support of all LED display products we provide all over the world.
We are continuously improving upon our level of service and quality to quickly and effectively meet customer needs and guarantee their benefits and interests.
Service Concept
We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.
Service Content
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
Warranty Period
Each of our LED display products comes with at least three years warranty and a lifetime maintanance services.
FAQ
Q1: What's the warranty of your LED Display Screen ?
A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2: What about your Pre-sale service and After-sale service?
A2: For Pre-sale service: We have a professional sales team and professional technical team who are willing to answer your question 24 hours on line. We can offer a set of solution for your project!
For After-sale service: We can instruct you how to use, adjust the screens, and common maintenance with spare parts.
Also, we can send engineers to your country if you need.
Q3: What’s your payment term? How long it takes to delivery?
A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
Production time would be about 15-25 days according to your order quantity.
Q4: What's the control system?
A4: For synchronous control system: We use Nova, Linsn or Colorlight control system.
For asynchronous control system: We use Onbon or Xixun control system.
Q5: How can you ensure the led display product quality?
A5: We have nearly 10-year experience in producing Led Display with good reputation in this industry.
We would do 24 hours ageing to promise 100% non-dead chips before shipment.
