Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P4 |
| Minimum Order Quantity: | 16sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case ，flight case. it is up to you. |
| Delivery Time: | 7-16 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sqm month |
| Application:: | Video Display | Color: | Full Color |
|---|---|---|---|
| Panel Size:: | 256mmx128mm | Pixel Pitch:: | 4mm |
| Module Size:: | 256mmx128mm | Display Function:: | Video |
| Panel Size:: | 512mmx512mm | Power Supply:: | Meanwell/G-energy Super Slim |
| Panel Material:: | Diecasting Aluminum Cabinets | Warranty:: | 3 Years |
| Life Span:: | 100000 Hours | ||
| High Light: | led full color screen,indoor led billboard |
||

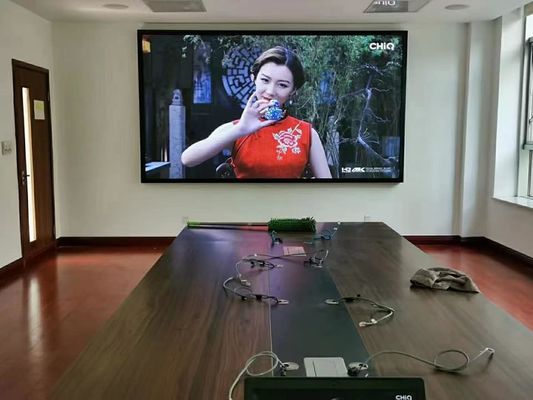

Meeting room P4 Rental indoor led screen die cast aluminum cabinet advertising led display for concert, Dj booth
1. CNC + Die Casting process cabinets
The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
2. Super Slim
The thickness is 60mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.
3. Light Weight
The weight of full panel is only 6.5KG, can be easily hanging up by one person, with only two person can finish 12sqm led screen installation in 30minutes, it saves your time and labor cost.
4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any
♦ Product specification
| indoor SMD P4 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 4 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 62500/m² | |||||||||||||
| Module resolution | 32x32 | |||||||||||||
| Module size/mm | 128x128 | |||||||||||||
| View distance | ≥4m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >1800cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 120(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/16 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >1200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

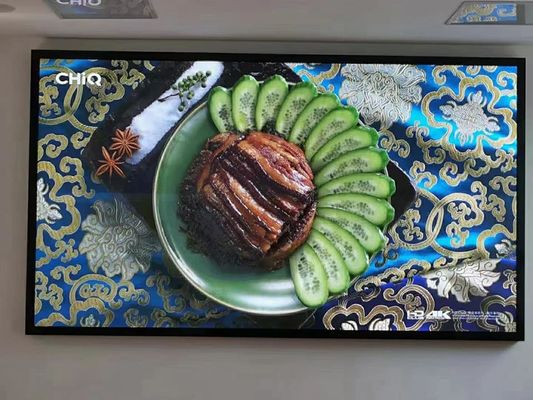

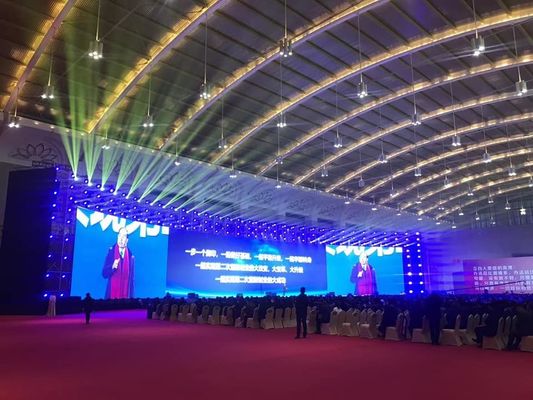

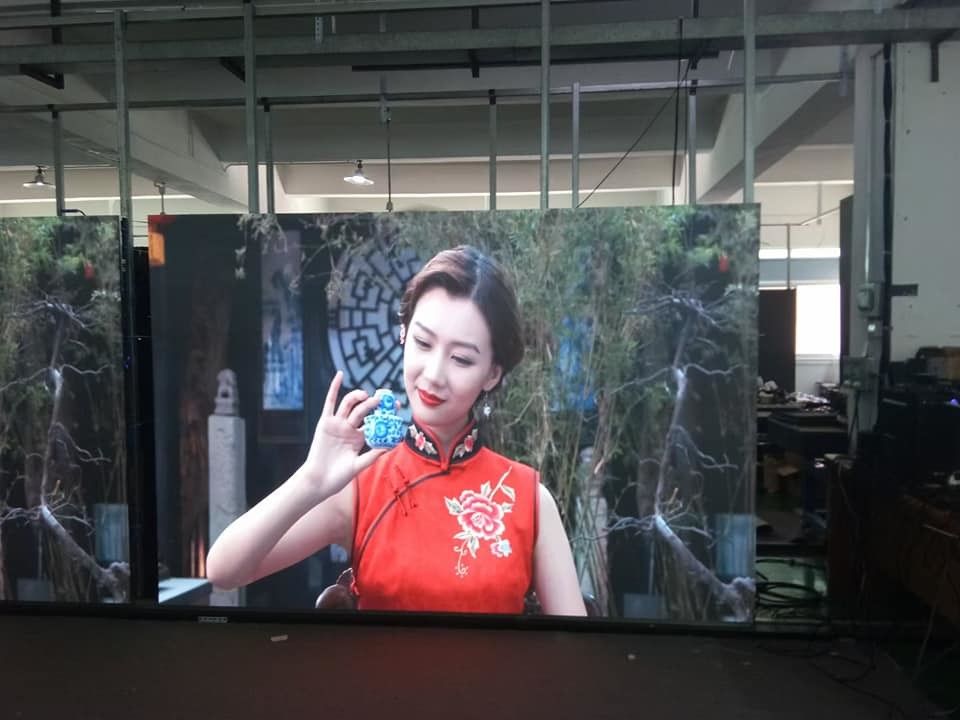

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
FAQ
1.How long could I receive the inquiry reply?
A:You will get a reply within 24 hours.
2.What kind of led display do you offer?
A:Different product offer different time frame warranty, but all product here we offer 1 year at least warranty
3.How is the after sales service?
A:We have a professional team which is in all around the world, also a service hot-line dealing with your complains and feedback. We also offer 24-hour online service to help you solving problems
4.How long will it take to deliver goods?
A:We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get your payment
