Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P3 |
| Minimum Order Quantity: | 16sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 3-16 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5600 sqm month |
| Application:: | Viedo | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 192mm*192mm | Pixel Pitch:: | 3mm |
| Pixel Density:: | 111111dots/m2 | LED Encapsulation:: | SMD2121 1R1G1B |
| LED Chips:: | Hongsheng/Xinda/Kinglight/Epistar/Nationstar | Cabinet Size:: | 576mm*576mm |
| Brghtness:: | 1500cd/m2 | Scanning Mode:: | 1/32Scan |
| Lifespan:: | 100,000 Hours | ||
| High Light: | indoor led billboard,led full color screen |
||
SCX LED Indoor P3 LED Screen 576x576mm P3 Rental LED Display 3mm Rental LED Display Panel
Disassembly fast:
the box is connected up and down with fast locking mechanism, pull the two handles 90 degrees to lock the two cabinet, 10s to complete a cabinet installation, high mounting accuracy. Enclosure and wiring connection fast and reliable, that is beautiful in appearance but also to achieve a real sense of the rapid disassembly
♦ Product specification
| indoor SMD P3 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 3 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 111111/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 192*192 | |||||||||||||
| View distance | ≥0.5m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2500cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/32 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1000W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
Product Overviews
| Items | Indoor Led display: p1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 Outdoor Led display: P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
| Payment terms |
30% deposit before production, 70% balance before shipping |
| T/T | |
| Western Union | |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; | |
| Anti-shaking wooden case | |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
| Within 5 year, supply spare parts for free if has quality problem ( not by man-made damage) |
|
| Using Range | Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on. |

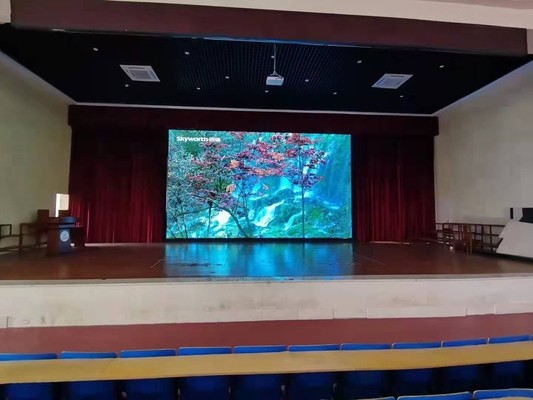

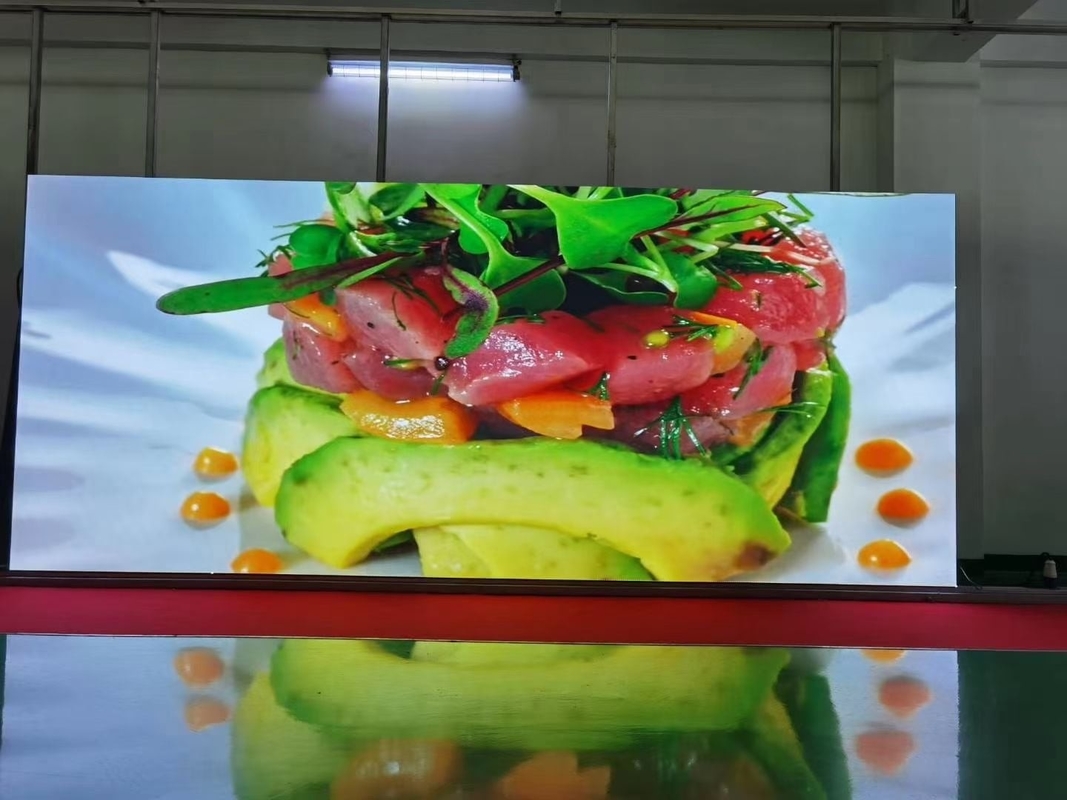

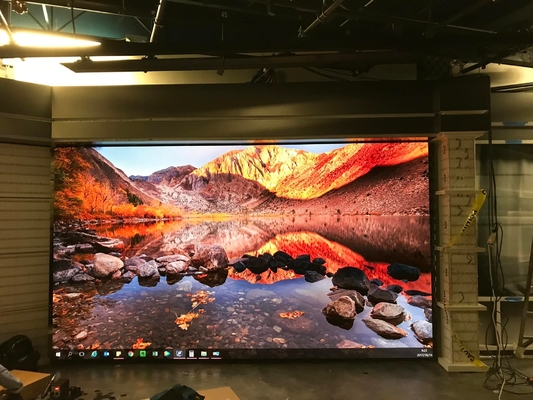

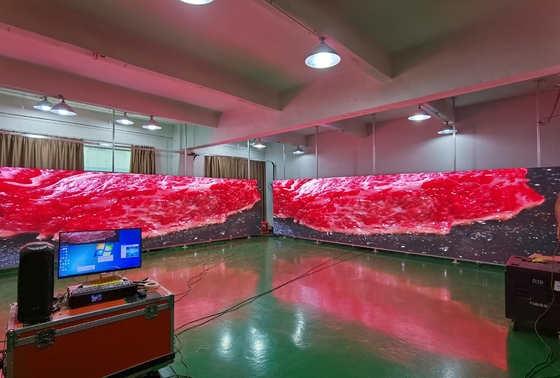

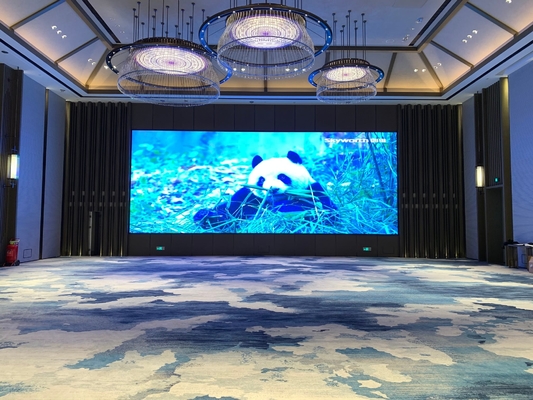

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
FAQ
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 15 to 18 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Contact Person: BOSCO
Tel: +8615177780539
