Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CE,ROHS,FCC,SASO,CB |
Model Number: | SMD P3.91 |
Minimum Order Quantity: | 13 sqm |
---|---|
Price: | negotiation |
Packaging Details: | wooden case,flight case,it is up to you. |
Delivery Time: | 7-10 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 sqm month |
Led Module:: | 250*250mm | Pixel Density:: | 65410 Dots/sqm |
---|---|---|---|
Brightness:: | ≥1200cd/㎡ | Color Temperature Condition:: | 3500K~9500K,(can Be Adjustable) |
Operating Humidity:: | 10 - 90 % RH | Operating Life:: | ≥100,000 Hours |
Driving Type: | 1/16 | Cabinet Size: | 500x500,500x1000mm |
Led Chip: | Nationstar | Warranty: | 4 Years |
Control System: | Nova ,huidu,colorlight,linsn | ||
High Light: | stage background led screen,stage led display |
High-end Easy Installation Waterproof Curved LED Display Stage Led Screens P3.91/P4.81
Advantage
Best cost performance Best price for same quality , Best quality for same price.
LED: from top brand kinglight, with high brigtness and color deth.
Driver IC: MBI IC, good refresh rate
Power supply: MeanWell or CY power supply. safefy electronic
Unique design: light weight and easy to install. 100 sqm can be set up in one hours
PCB Board:Conformal coating, 4 layer design.
Package: Anti-vibration fly case package, cover with protection film
Curved arc shape avilible: Can be curved ±10 ° , creat a amazing stage.
Easy Maintance: No need to take off power supply when need maintance, save your time
Specifications
Parameter | Value |
Pixel Configuration | SMD2020 |
Pixel pitch (mm) | 3.91 |
Pixel matrix per panel | 64*64 |
Pixel density (pixelsm) | 62500 |
Cabinet Dimensions(L*W) mm | 500*500mm |
Module Dimensions(L*W) mm | 250*250 |
Panel material | Aluminum profile&iron&die-casting aluminum |
Cabinet weight (kg/panel) | 6.5 |
Colour grayscale (bit) | 12-16bit |
Gray scale per colour (level) | 16384 |
Refresh rate (hz) | 1920 |
Driving type | 1/16 |
Signal transmission distance (m) | cats cable:<100m single mode fiber:<10km |
Brightness (nit) | 1200 |
Optimal horizontal viewing angle (degree) | 160 |
Optimal vertical viewing angle (degree | 160 |
Ac input voltage (v) | Ac100-240v |
Ac input frequency (hz) | 50/60 |
Ac input power maximum value (wm) | 625 |
Ac input power typical value (wm) | 150 |
Storage temperature (℃) | -40-60 |
Work temperature (℃) | 0-45 |
IP rating (front/rear) | IP40/IP21 |
Storage humidity (rh) | 10%-90% non -condensing |

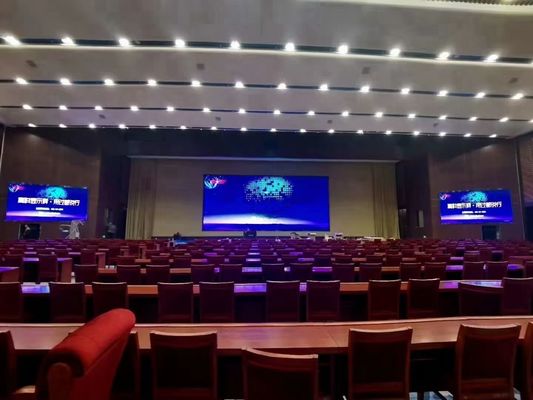

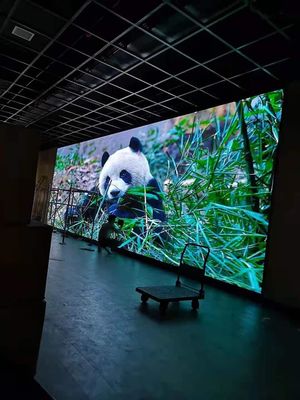

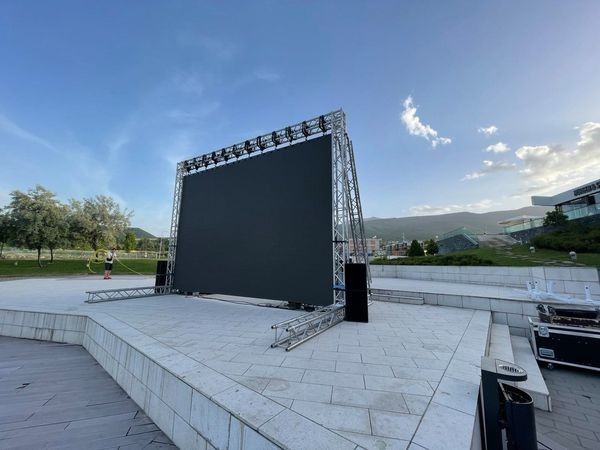

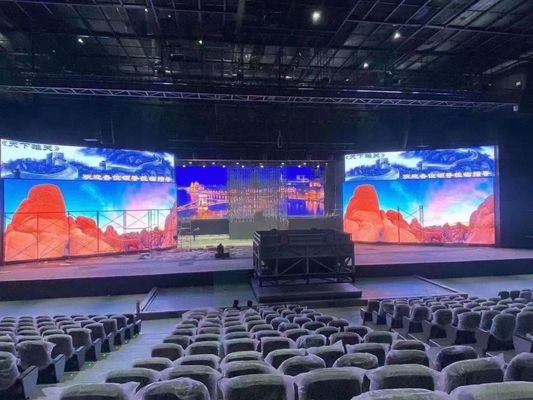

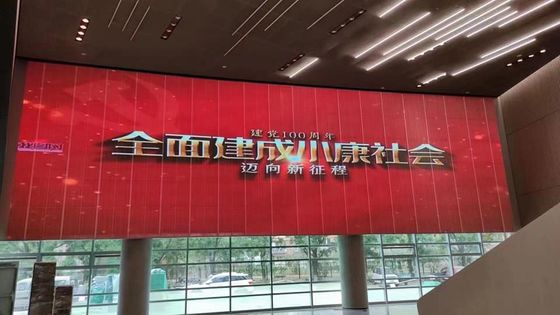

Our case
Our Service
FAQ
Q1. Can I have a sample order?
A: A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 12-25 days.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express (DHL, UPS, FedEx ). It usually takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for led display?
A: Firstly let us know your requirements or application, liking project size, rental or fixed installation.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the finished display cabinet.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Contact Person: BOSCO
Tel: +8615177780539
