Pixel Pitch 8mm Full Color LED Wall Display MW 5V 60A Power Supply 1R1G1B

Pixel Pitch 8mm Full Color LED Wall Display MW 5V 60A Power Supply 1R1G1B

  • Pixel Pitch 8mm Full Color LED Wall Display MW 5V 60A Power Supply 1R1G1B
  • Pixel Pitch 8mm Full Color LED Wall Display MW 5V 60A Power Supply 1R1G1B
  • Pixel Pitch 8mm Full Color LED Wall Display MW 5V 60A Power Supply 1R1G1B
Pixel Pitch 8mm Full Color LED Wall Display MW 5V 60A Power Supply 1R1G1B
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB,CE,ROHS,FCC,SASO
Model Number: SMD P8
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: wooden case,flight case,it is up to you.
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm month
Contact Now
Detailed Product Description
Led Module:: 256*128mm Contrast Ratio:: ≥3000:1
Min. Viewing Distance:: ≥8 Meter Power Supply:: MW 5V60A
Module Resolution:: 32*16 Pixel Density: 15625dots/m²
Pixel Configuration: 1R1G1B
High Light:

led display rgb

,

full color outdoor led display

Pixel Pitch 8mm led video wall advertising big screen outdoor full color led display




Product Specifications



Module Parameter:

Pixel pitch 8mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 3535
Module size 256*128mm
Module weight 310g
Module resolution 32*16 dots

Cabinet Parameter:

Cabinet size 1024*1024*130mm
Cabinet material iron cabinet
Cabinet weight 50kgs
Ingress protection Front/Rear IP65/IP54



Whole Screen Parameter
Pixel density 15625dots/
Brightness ≥6300 cd/
Viewing angle H≥160° V≥160°
Min.viewing distance 5m
Max.power consumption 1200W/
Avg.power consumption 600 W/
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 14-16bits
Frame frequency ≥60frames/s
Refresh rate ≥300Hz
MTBF ≥10000 hours
Lifespan ≥75000 hours
Protective function

Over-heat/Over-load /Power-down /Power-leakage

/Lightning-protection etc.

Operating temperature -10℃ ~ +40℃
Operating humidity 10-80% no condensation
Storage temperature -20℃ ~ +60℃
Storage humidity 10-85% no condensation



Control System Parameter:

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way

Computer, video-synchronous, real-time, off-line, wireless, internet etc.

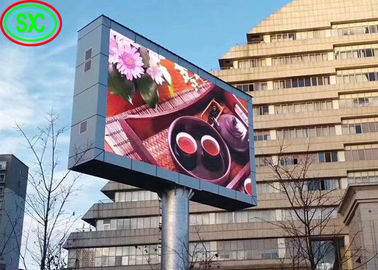

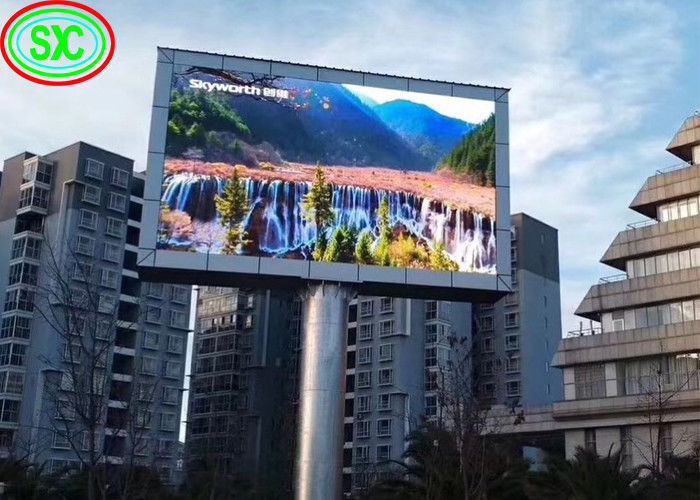

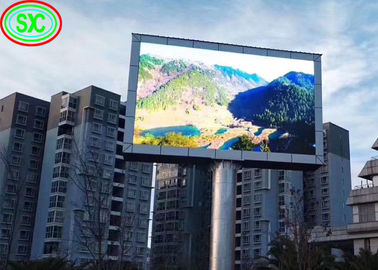

Cabinet Pictures



Pixel Pitch 8mm led video wall advertising big screen outdoor full color led display

Pixel Pitch 8mm led video wall advertising big screen outdoor full color led display

Pixel Pitch 8mm led video wall advertising big screen outdoor full color led display










Our Certificate

Pixel Pitch 8mm led video wall advertising big screen outdoor full color led display





Our Service

Pre-sales service :
Our team design and make solutions based on different requirements from different customers, what you think is what we can do.

After-sales services:
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We provide one professional engineer to one customer to keep fastly reply.

Installation Service:
1. We provide detailed CAD drawing to customer for preparing metal structure.
2. We could dispatch our engineer to your place , guide installation and free training.
3. Special designs have special solutions; we will make perfect solutions to satisfy all customers' requirements




FAQ


Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
