Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CB,CE,ROHS,FCC,SASO |
Model Number: | SMD-P3.91 |
Minimum Order Quantity: | 16 sqm |
---|---|
Price: | negotiation |
Packaging Details: | working days,flight case,it is up to you. |
Delivery Time: | 7-16 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 sqm month |
Application:: | Outdoor Indoor Stage Concert Rental, Rental | Color:: | Full-color RGB |
---|---|---|---|
Panel Size:: | 500X500 | Pixel Pitch:: | P3.91 Outdoor |
Brightness:: | 4000-5000cd/sqm | Warranty:: | 2 Years |
Cabinet Size:: | 500x500mm | Material:: | Aluminum Alloy Frame |
Refresh Rate:: | 3840Hz | ||
High Light: | led full color screen,indoor led display screen |
SCX LED High Quality HD P3.91 Rental LED Screen 500X500mm Indoor Full Color SMD LED Display Panels
Production Description
1. Classical and stable structure and performance.
2. Two patent protected strong locks design, realizing combination of reliability and security.
3. Die-casting aluminum body, light weight for easy transportation and high accuracy installation.
4. Perfectly be compatible with any existing controller and without screen shaking/quick flashing/mosaic problems.
5. Supporting installation of hanging/ground mounting, for stage/TV show/studio, and other event applications.
6. Tool free assembly and disassembly.
Value | P2.6 | P2.9 | P3.9 | P3.9 | p4.8 |
Pixel pitch (mm) | 2.6 | 2.9 | 3.91 | 3.91 | 4.81 |
Pixel configuration | SMD | SMD2121 | SMD2020 | SMD2020 | SMD2020 |
Brightness (nits) | 1000 | 1000 | 1000 | 1000 | 1000 |
Pixel Matrix Per Panel | 192 x 192 | 172 x 172 | 128 x 128 | 128 x 256 | 104 x 208 |
Pixel Matrix Per Sq.m | 147929 | 118906 | 65536 | 65536 | 43264 |
Viewing Angle (H/V) | 120/120 | 120/120 | 120/120 | 120/120 | 120/120 |
Refresh rate (Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
IP grade ( F / R) | IP40 / IP40 | IP40 / IP40 | IP40 / IP40 | IP40 / IP40 | IP40 / IP40 |
Input voltage ( V ) | AC220V ± 10% | AC220V ± 10% | AC220V ± 10% | AC220V ± 10% | AC220V ± 10% |
Power Consumption (Max / Avg) | 460/ 160 w/sq.m | 600/180 w/sq.m | 460/ 160 w/sq.m | 260/ 100 w/sq.m | 580/ 230 w/sq.m |
Size (L x W x D mm) | 500*500*82.5 | 500*500*82 | 500x500*82.5 | 500x1000*75 | 500x1000x75 |
Panel weight (Kgs) | 6.8 (Die-casting Al.) | 8.4 (Die-casting Al.) | 6.8 (Die-casting Al.) | 13.5 (Die-casting Al.) | 15.7 (Die-casting Al.) |
Curved | yes | yes | yes | no | no |

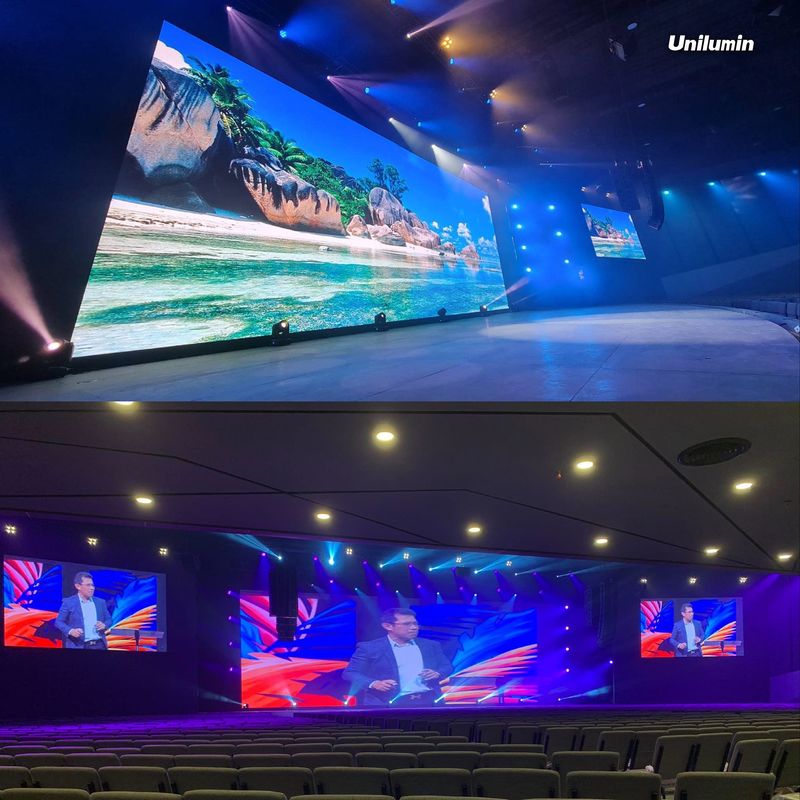

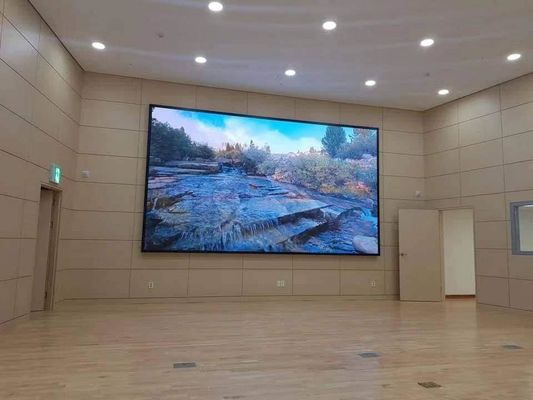

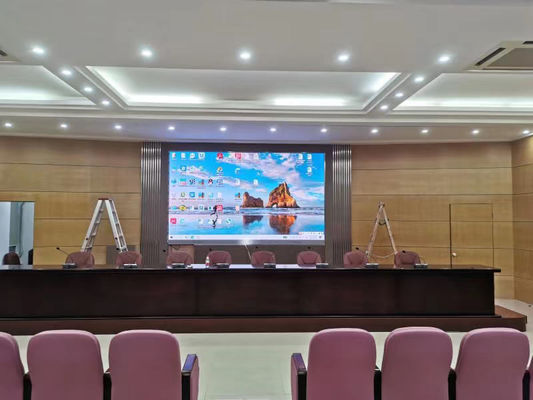

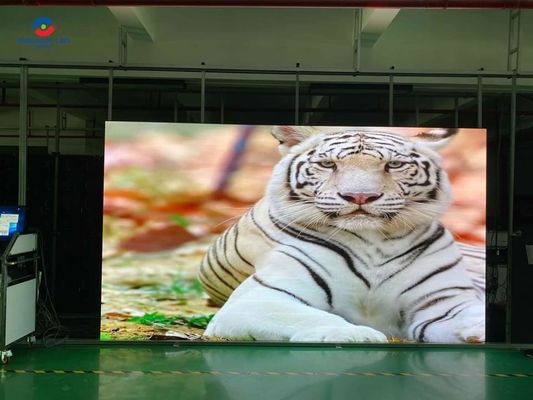

Our case
Our Service
Pre-sale service
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide professional solutions based on customer's requirement.
4. Offer sample and all document as customers required.
5. Other services, such as factory visiting and so on.
In-sale service
1. Tracking report of production.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.
FAQ
Q1. Can I have a sample order?
A: A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 12-25 days.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express (DHL, UPS, FedEx ). It usually takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for led display?
A: Firstly let us know your requirements or application, liking project size, rental or fixed installation.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the finished display cabinet.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
