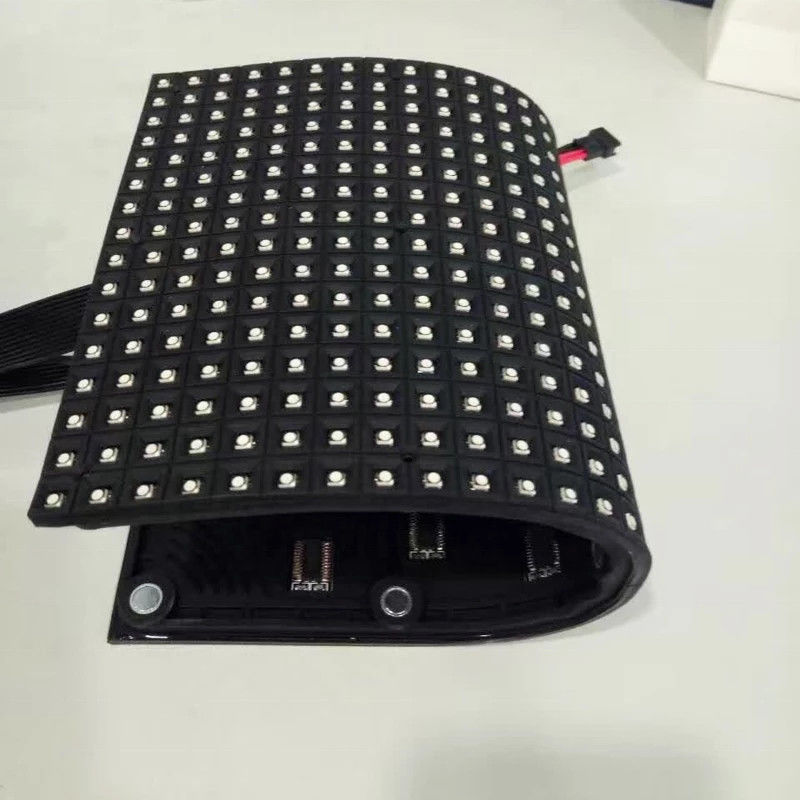

Indoor Flexible LED Display Module Full Color Panel P4 SMD2121 2 Years Warranty

Indoor Flexible LED Display Module Full Color Panel P4 SMD2121 2 Years Warranty

  • Indoor Flexible LED Display Module Full Color Panel P4 SMD2121 2 Years Warranty
  • Indoor Flexible LED Display Module Full Color Panel P4 SMD2121 2 Years Warranty
  • Indoor Flexible LED Display Module Full Color Panel P4 SMD2121 2 Years Warranty
Indoor Flexible LED Display Module Full Color Panel P4 SMD2121 2 Years Warranty
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P4
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P4 Flexible Indoor Module Module Size(W * H): 256mm*128mm
Standard: CE/ROHS/FCC/ISO2001 Pixel Pitch: 4mm
Resolution(W*H): 64dots*32dots Display Function: Video,Image,Graphic
Warranty: 2 Years Usage: Indoor,Adertising Display
Refresh Rate: 1920hz
High Light:

led screen module

,

led sign module

Custom Made Indoor Use Flexible SMD2121 LED Module Full Color P4 Display Panel

Product Description:
1.Magnet connection, front maintenance, easy to assemble&disassemble;
2.No cabinet metal frame,any shape of structure can be designed as you need;
3.Install the LED screen with soft led modules directly,saving time and effort,easy operation;

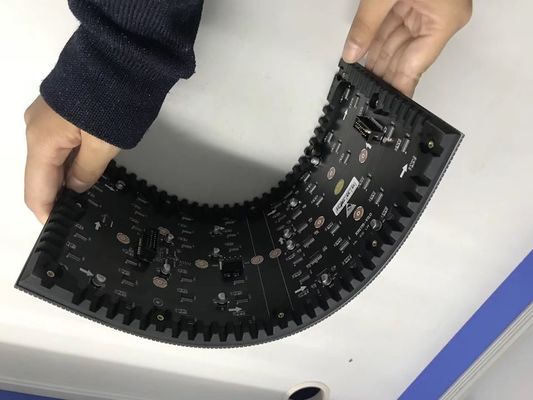

4.Module with small-unit and flexible design,useful in any curved application environments to create flexible;
5.With MBI driving IC and Kinglight gold wire LEDs, with high refresh Rate and best color uniformity;



Product Specification:

Item Parameter Item Parameter
Pixel Pitch 4mm LED Encapsulation 1R1G1B
LED Chips Epistar cabinet resolution 64dotsx32dots
cabinet size 768mmx768mm Pixel density 62500dots/m²
module size 256mmx128mm module resolution 64dotsx32dots
Drive Method: 1/16 Scanning Brand of power supply CL 5V~80A
Gray Scale Recommended 256 level The best viewing angle

Horizontal:120

Vertical:90

Max Power Consumption 750W/ m² Control Mode

Video frequency

synchronization

Optimal Viewing Distance ≥4m Brightness ≥1500cd/m²
Blind Spot Rate <0.0001 Brightness Control 0-255 Grade
Contrast 100 levels adjustable Earth Leakage Current <2mA
MTBF >5000Hours Lifespan >100000Hours
Power Supply Mode

AC220V/50HZ or

AC110V/60HZ

Protection Level IP43
Humidity 0%~90% Operating System

Windows98/me/

2000/NT/XP

Operating temperture Operation:-15°C~+55°C



Indoor Flexible LED Display Module Full Color Panel P4 SMD2121 2 Years Warranty 0

Indoor Flexible LED Display Module Full Color Panel P4 SMD2121 2 Years Warranty 1
Indoor Flexible LED Display Module Full Color Panel P4 SMD2121 2 Years Warranty 2



Payment and delivery



T/T, 30% deposit, 70% before shippment.

100% Western Union in advance.



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.





♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.



Indoor Flexible LED Display Module Full Color Panel P4 SMD2121 2 Years Warranty 3Indoor Flexible LED Display Module Full Color Panel P4 SMD2121 2 Years Warranty 4



♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.



Indoor Flexible LED Display Module Full Color Panel P4 SMD2121 2 Years Warranty 5
