Customized Indoor Flexible Led Display Billboard Sphere Ball Screen Irregular Shape

Customized Indoor Flexible Led Display Billboard Sphere Ball Screen Irregular Shape

  • Customized Indoor Flexible Led Display Billboard Sphere Ball Screen Irregular Shape
  • Customized Indoor Flexible Led Display Billboard Sphere Ball Screen Irregular Shape
Customized Indoor Flexible Led Display Billboard Sphere Ball Screen Irregular Shape
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P4
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: Indoor P4 Flexible Led Display Module Size(W * H): 256mm*128mm
Standard: CE/ROHS/FCC/ISO2001 Pixel Pitch: 4mm
Resolution(W*H): 64dots*32dots Name: Flexible Led Display
High Light:

flexible led stage screens

,

flexible led screen wall

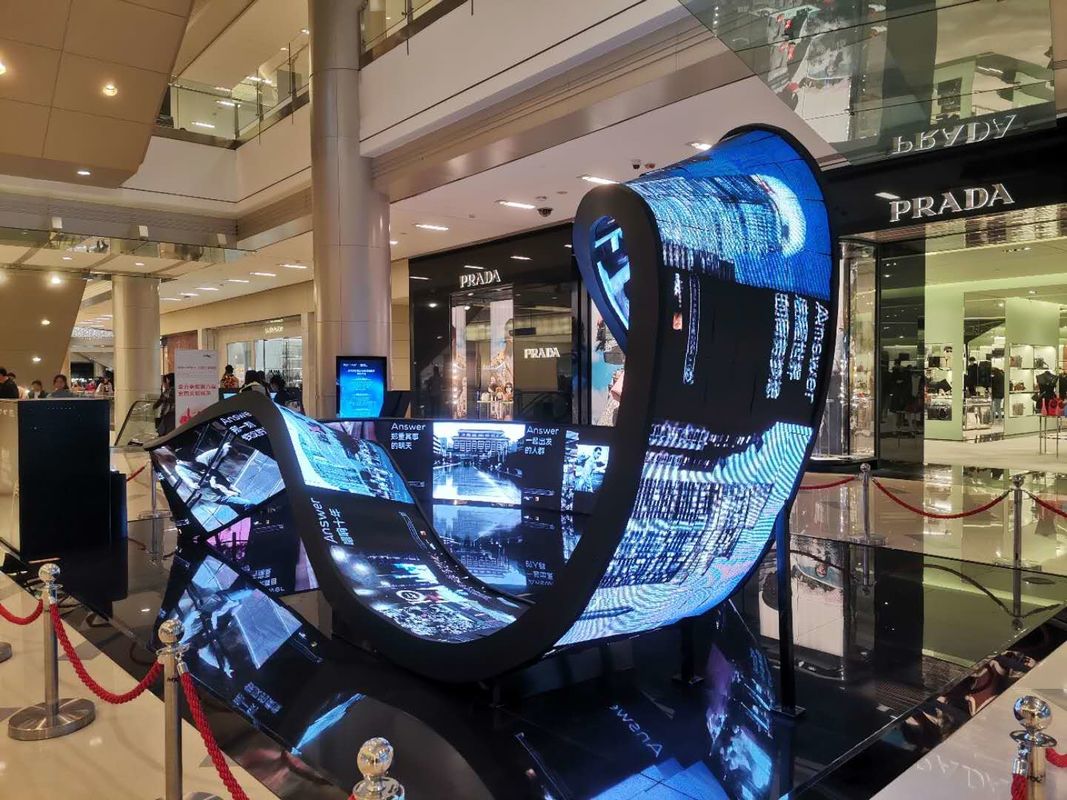

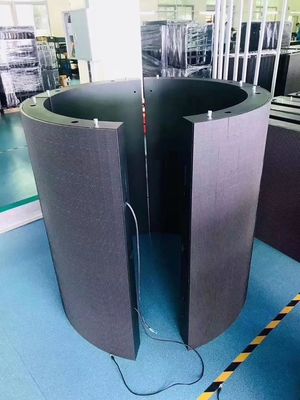

Customized Flexible Led Indoor Display Billboard Led Sphere Ball Screen Display Irregular Screen Display, High Quality

Product Advantages:

★Flex for any irregular shaped screens
★Concave, convex, round, column, S shaped
★Front service with magnetic module
★Light, thin, easy installation, plug and play
★Design without limitation





Product Specification:

Item Parameter Item Parameter
Pixel Pitch 4mm LED Encapsulation 1R1G1B
LED Chips Epistar cabinet resolution 128dotsx128dots
cabinet size 512mmx512mm Pixel density 62500dots/m²
module size 256mmx128mm module resolution 64dotsx32dots
Drive Method: 1/16 Scanning Brand of power supply CL 5V~80A
Gray Scale Recommended 256 level The best viewing angle

Horizontal:120

Vertical:90

Max Power Consumption 750W/ m² Control Mode

Video frequency

synchronization

Optimal Viewing Distance ≥4m Brightness ≥1500cd/m²
Blind Spot Rate <0.0001 Brightness Control 0-255 Grade
Contrast 100 levels adjustable Earth Leakage Current <2mA
MTBF >5000Hours Lifespan >100000Hours
Power Supply Mode

AC220V/50HZ or

AC110V/60HZ

Protection Level IP43
Humidity 0%~90% Operating System

Windows98/me/

2000/NT/XP

Operating temperture Operation:-15°C~+55°C



Customized Indoor Flexible Led Display Billboard Sphere Ball Screen Irregular Shape 0Customized Indoor Flexible Led Display Billboard Sphere Ball Screen Irregular Shape 1Customized Indoor Flexible Led Display Billboard Sphere Ball Screen Irregular Shape 2


How to Select a Led Display

1.Location-indoor,outdoor or semi-outdoor
Location is the most important factors for selecting the correct LED display.Different type of location such as rooftop,large billboards and stage backdrops or requires front access for servicing will require different led cabinets and modules.


2.Size,Shape and Pitch
Size:Once you have measured the height, width and depth of the space and availability, then you want to make sure the selected LED size (and number of cabinets, height, width & depth) can be accommodated.
Shape:determines if curve or column or flat screens are required.
Pitch:determines the contents of the display and the range of viewing.


3.LED Facing Direction
Outdoor LEDs facing east or direct west sunlight will require higher lamination than those facing north or south. The larger outdoor billboards and configurations must be equipped with automatic light sensors to automatically adjust brightness in reaction to sunlight and cloud covers.



Payment and delivery

T/T, 30% deposit, 70% before shippment.

100% Western Union in advance.



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.





♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.



Customized Indoor Flexible Led Display Billboard Sphere Ball Screen Irregular Shape 3Customized Indoor Flexible Led Display Billboard Sphere Ball Screen Irregular Shape 4



♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.



Customized Indoor Flexible Led Display Billboard Sphere Ball Screen Irregular Shape 5
