SMD2121 Indoor Rental Led Display Full Color P4 High Brightness For Stage Show

SMD2121 Indoor Rental Led Display Full Color P4 High Brightness For Stage Show

  • SMD2121 Indoor Rental Led Display Full Color P4 High Brightness For Stage Show
  • SMD2121 Indoor Rental Led Display Full Color P4 High Brightness For Stage Show
SMD2121 Indoor Rental Led Display Full Color P4 High Brightness For Stage Show
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: SCXK-P4
Payment & Shipping Terms:
Minimum Order Quantity: 5sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram, MoneyGram, D/A, L/C
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P4 Stair LED Screen Led Type: SMD2121
Tube Chip Color: Full Color IP: IP43
Cabinet: Steel Or Aluminum For Options Screen Dimension: Customized
Display Function: Video Scan Mode: 1/16 Scan
High Light:

led full color screen

,

indoor led display screen

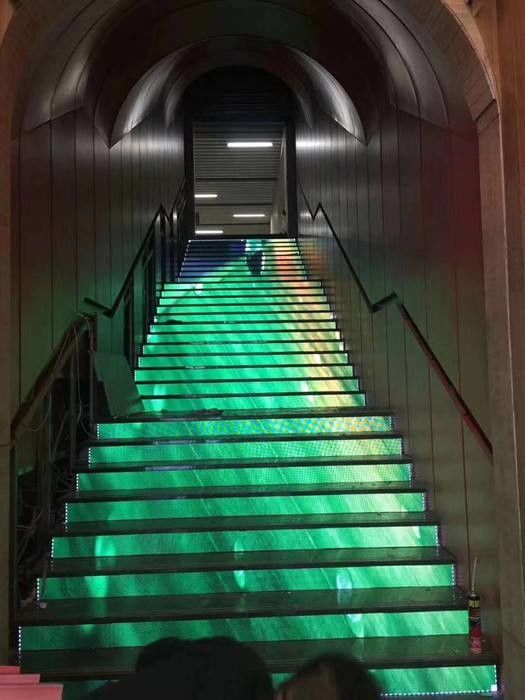

indoor full color led display P4 Rental Stair LED Screen for Stage Show



Shenzhen SCXK Electronic Co.Ltd was established in 2005 Longhua new area,Shenzhen,is a factory which devoted it's full time to solving problems of led field.stable-quality is the foundation that makes us survive,high quality products and good sales performance is the supporter that drives us moving,innovation and invention is the guarantee that makes the product competitively,talent is a big power that pushes the company become stronger and bigger.



The Features of P4 Stair LED Screen



1.High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system

2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system

3.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof your LED display screen's investment.

4.Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.

5.Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system

6.Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.



P4 Indoor SMD LED Display Module Technical Parameter (T=25°C)
Technical Parameter Parameters Values
Pixel Pitch 4mm
Physical Density 62500dots
Pixel Configuration 1R1G1B
LED Parameter R: 82~102mcd ; 621~625nm
G: 245~305mcd; 524~528nm
B: 45~56mcd; 468~472nm
LED Encapsulation SMD 2121Black (Nationstar or kinglight LEDs)
Module Size 256*128mm
Module Resolution 64*32dots
Cabinet Size 768*768mm
Cabinet Resolution 192*192dots
Driving Method Constant Current
Scanning Mode 1/16 scan
Driving Device MBI 5124 IC (Standard Configuration) or other High refresh rate driver IC
Module Working Voltage DC 5V
Module Consumption 18W
Viewng Angle 140°
Frame Frequency ≥60Hz
Refresh Frequency ≥1920Hz
Equilibrium Brightness >1400cd/m2
Working Environment Temperature -10°C ~ 60°C
Working Environment Humidity 10% ~ 70% RH
Color Temperature ≥10000K
Gray Scale / Color ≥16.7M color
Mean Free Error Time >5000hours
Change Frame Frequency ≥ 60Hz
Life Span >100000hours
Lamp Failure Frequency <0.0001



SMD2121 Indoor Rental Led Display Full Color P4 High Brightness For Stage Show 0



production process.jpg

The epistar Led chip. with SMD and DIP Technology .



we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available










The wire or wireless controll system are available .( 3g and wifi controll will be welcome)








The steer consturction is very stable for led display,and you can purchase from your local market .



Methods for Quality Assurance

a. Aging

100% fully test

Condition: 72 hours with 256 gray leve

b. Vibration Testing

Condition: 3-5 min up and down in 5mm range



Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.



Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online Remote Support

3. Solution and PCB design

4. Free factory training

5. On site installation instruction and regular inspection

6, Small order accepted.





♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
